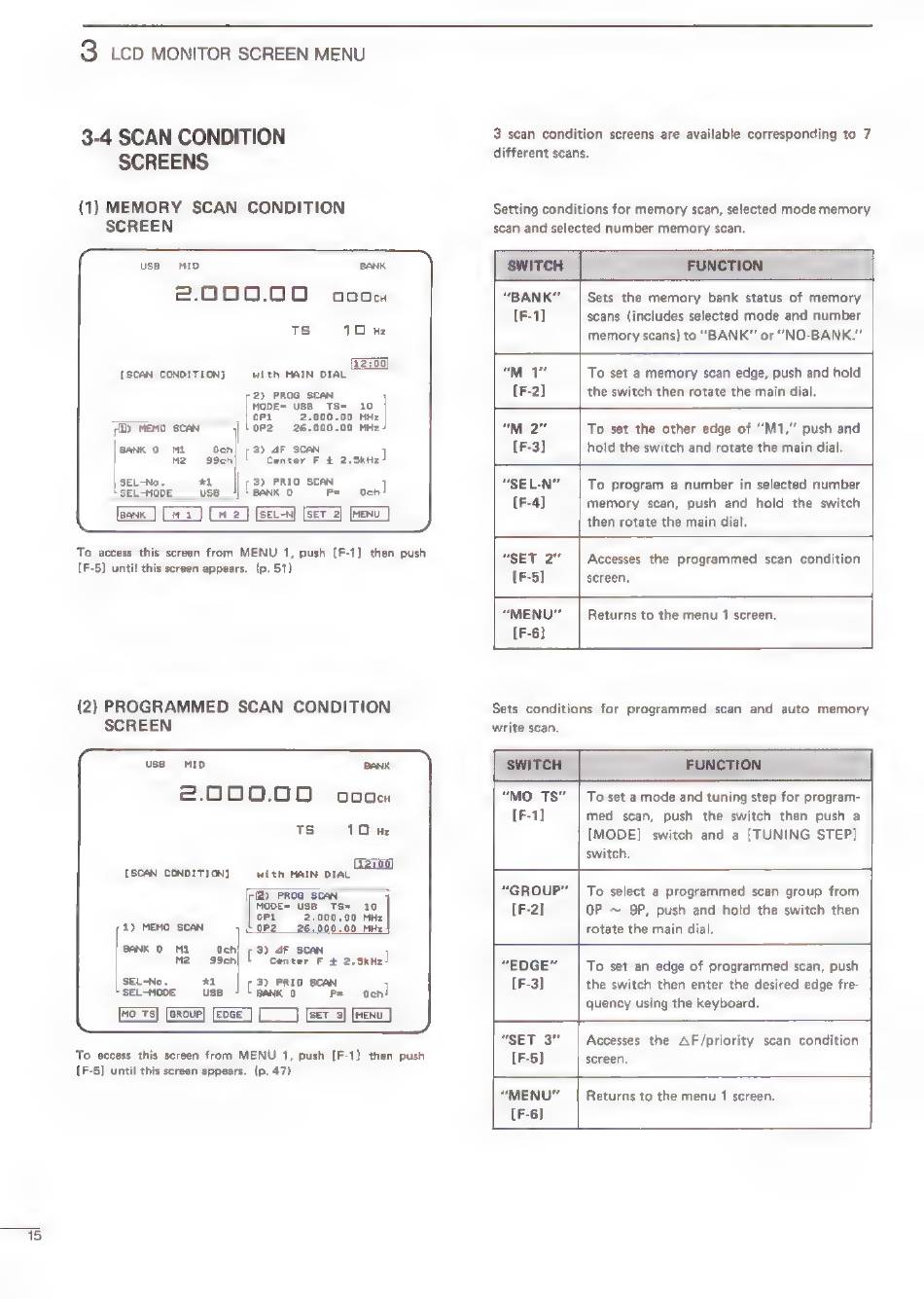

3 LCD MONITOR SCREEN MENU
3-4 SCAN CONDITION
SCREENS
(1) MEMORY SCAN CONDITION
SCREEN
usB MID BANK
2000.00 ooo
TS 10 wz
72700
[SCAN CONDITION] with MAIN DIAL
MODE= USB TS= 10
oP1 2.000.00 MHz
E: PROG SCAN
pl) MEMO SCAN 1 oP2 26,000.00 MHz
| BANK o Mt Och)
| [30 AF SCAN j
M2 99ch|/ Center F + 2,5kHz
|
| SEL-No. | [32 PRIO SCAN ]
'SEL-MODE __ USB BANK 0 P= Och
pank | (43 ] [2 | [Sec-n) [Set 2] [Menu
To access this screen from MENU 1, push [F-1] then push
[F-5] until this screen appears. (p. 51)
(2) PROGRAMMED SCAN CONDITION
SCREEN
USB MID BANK
2,000.00 O000cu
Ts 10 w
[SCAN CONDITION] with MAIN DIAL
1) MEMO SCAN
BANK 0 M2. Deh) (3) 4F SCAN
M2 99ch| Center F + 2.5kHz/
SEL-No. *1 [ 22 PRIO SCAN
SEL-MODE usB BANK 0 P= och]
[sRour] [EDse ] (—] [Set 3) [env]
To access this screen from MENU 1, push [F-1] then push
[F-5] until this screen appears. (p. 47)
3 scan condition screens are available corresponding to 7
different scans.
Setting conditions for memory scan, selected mode memory
scan and selected number memory scan.
[aren |
"BANK"
(F-1]
oma"
[F-2]
M2"
(F-3]
SEL-N"
[F-4]
"SET 2"
(F-5]
"MENU"
[F-6]
Sets the memory bank status of memory
scans (includes selected mode and number
memory scans) to "BANK" or '""NO-BANK.""
To set a memory scan edge, push and hold
the switch then rotate the main dial.
To set the other edge of "M1," push and
hold the switch and rotate the main dial.
To program a number in selected number
memory scan, push and hold the switch
then rotate the main dial.
Accesses the programmed scan condition
screen,
Returns to the menu 1 screen.
Sets conditions for programmed scan and auto memory
write scan.
_SwiTeH
"MO TS"
[F-1]
"GROUP"
[F-2]
"EDGE"
[F-3]
"SET 3"
[F-5]
|
To set a mode and tuning step for program-
med scan, push the switch then push a
[MODE] switch and a [TUNING STEP]
switch,
To select a programmed scan group from
OP ~ 9P, push and hold the switch then
rotate the main dial.
To set an edge of programmed scan, push
the switch then enter the desired edge fre-
quency using the keyboard.
Accesses the AF/priority scan condition
screen.
"MENU" | Returns to the menu 1 screen.
(F-6]
