QUICK REFERENCE GUIDE

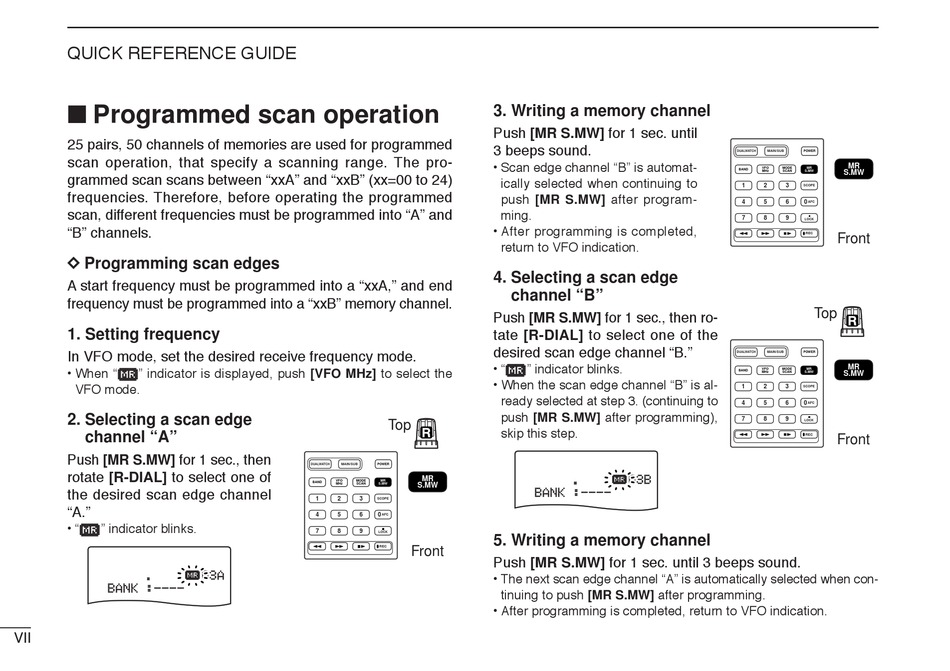

■ Programmed scan operation

25 pairs, 50 channels of memories are used for programmed
scan operation, that specify a scanning range. The pro-
grammed scan scans between "xxA" and "xxB" (xx=00 to 24)
frequencies. Therefore, before operating the programmed
scan, different frequencies must be programmed into "A" and
"B" channels.
D D Programming scan edges
A start frequency must be programmed into a "xxA," and end
frequency must be programmed into a "xxB" memory channel.
1. Setting frequency
In VFO mode, set the desired receive frequency mode.
• When "µ µ " indicator is displayed, push [VFO MHz] to select the
VFO mode.
2. Selecting a scan edge
channel "A"
Push [MR S.MW] for 1 sec., then
rotate [R-DIAL] to select one of
the desired scan edge channel
"A."
• "µ µ
" indicator blinks.
FM
146.010
µ
.
-BANK BANK-:---- :----
-BNAME: -BNAME:
VII
DUALWATCH MAIN/SUB POWER
VFO MODE MR
BAND
MHz SCAN S.MW
1 2 3
SCOPE
4 5 6 0
7 8 9
LOCK
REC
03A 03A
3. Writing a memory channel
Push [MR S.MW] for 1 sec. until
3 beeps sound.
• Scan edge channel "B" is automat-
ically selected when continuing to
push [MR S.MW] after program-
ming.
• After programming is completed,
return to VFO indication.
4. Selecting a scan edge
channel "B"
Push [MR S.MW] for 1 sec., then ro-
tate [R-DIAL] to select one of the
desired scan edge channel "B."
• "µ µ
" indicator blinks.
• When the scan edge channel "B" is al-
ready selected at step 3. (continuing to
push [MR S.MW] after programming),
Top
skip this step.
FM
146.010
MR
S.MW
-BANK BANK-:----
-BNAME: -BNAME:
AFC
5. Writing a memory channel
Front
Push [MR S.MW] for 1 sec. until 3 beeps sound.
• The next scan edge channel "A" is automatically selected when con-
tinuing to push [MR S.MW] after programming.
• After programming is completed, return to VFO indication.
DUALWATCH
BAND
1
4
7
DUALWATCH
BAND
1
4
7
µ 03B 03B
.
:----
MAIN/SUB POWER
MR
VFO MODE MR
MHz SCAN S.MW S.MW
2 3
SCOPE
5 6 0
AFC
8 9
LOCK
REC
Front
Top
MAIN/SUB POWER
MR
VFO MODE MR
MHz SCAN S.MW S.MW
2 3
SCOPE
5 6 0
AFC
8 9
LOCK
REC
Front
