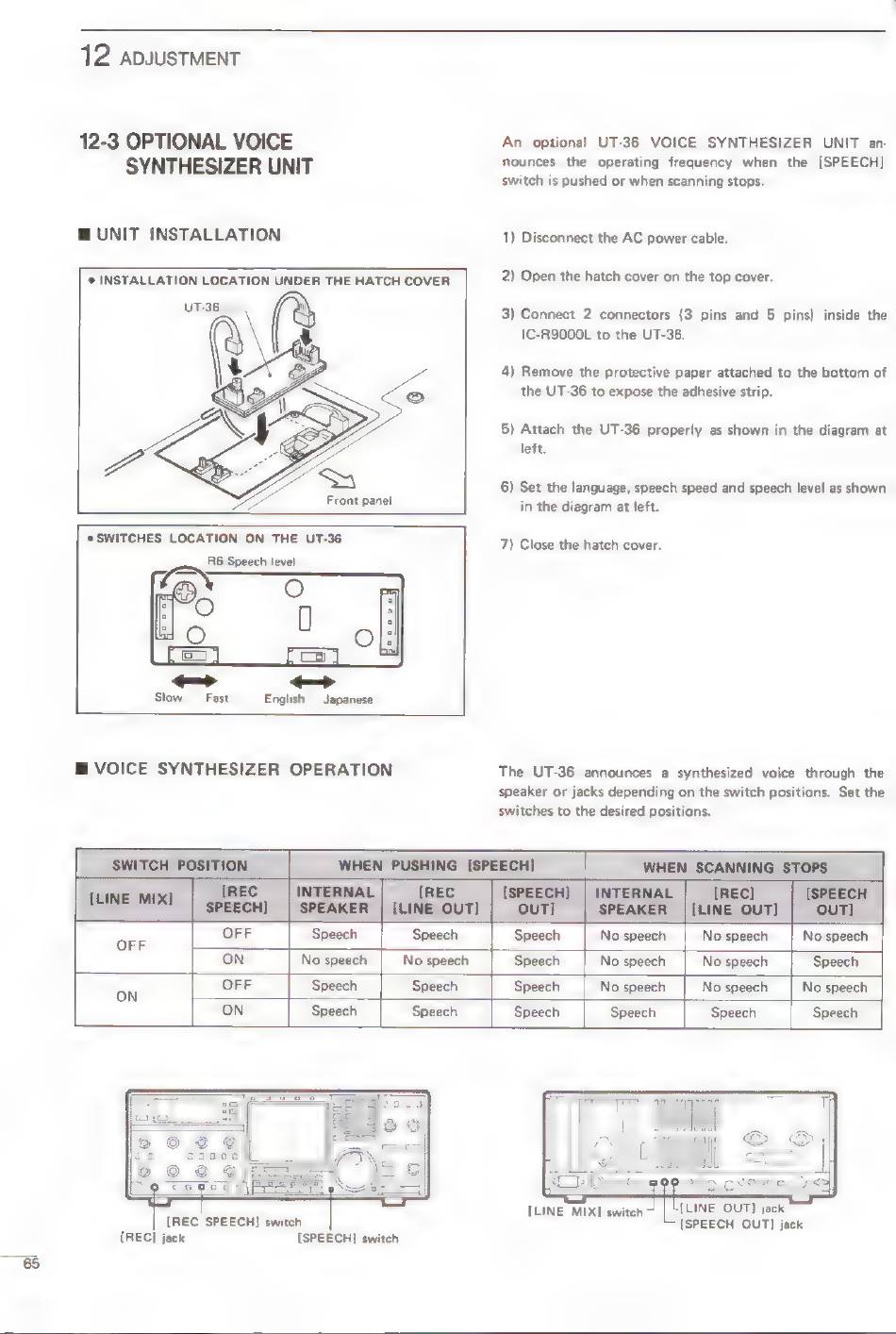

12 absUSTMENT
12-3 OPTIONAL VOICE
SYNTHESIZER UNIT
M UNIT INSTALLATION
@ INSTALLATION LOCATION UNDER THE HATCH COVER
English Japanese
@ VOICE SYNTHESIZER OPERATION
WHEN PUSHING [SPEECH]
An optional UT-36 VOICE SYNTHESIZER UNIT an-
nounces the operating frequency when the [SPEECH]
switch is pushed or when scanning stops.
1) Disconnect the AC power cable.
2) Open the hatch cover on the top cover.
3) Connect 2 connectors (3 pins and 5 pins) inside the
IC-R9OOOL to the UT-36.
4) Remove the protective paper attached to the bottom of
the UT-36 to expose the adhesive strip.
5) Attach the UT-36 properly as shown in the diagram at
left.
6) Set the language, speech speed and speech level as shown
in the diagram at left.
7) Close the hatch cover.
The UT-36 announces a synthesized voice through the
speaker or jacks depending on the switch positions. Set the
switches to the desired positions.
[REC SPEECH] switch
(REC] jack [SPEECH] switch
ene | le a
SPEECH] | SPEAKER | [LINE OUT] ouT] | SPEAKER | [LINE OUT] OUT]
GEE OFF Speech No speech No speech No speech
ON Speech No speech No speech Speech |
on OFF Speech No speech No speech No speech
=
[LINE MIX] switch
[SPEECH OUT] jack
