Control; Front Panel - Icom IC-RSOOCOL Instruction Manual

—p
2
qa

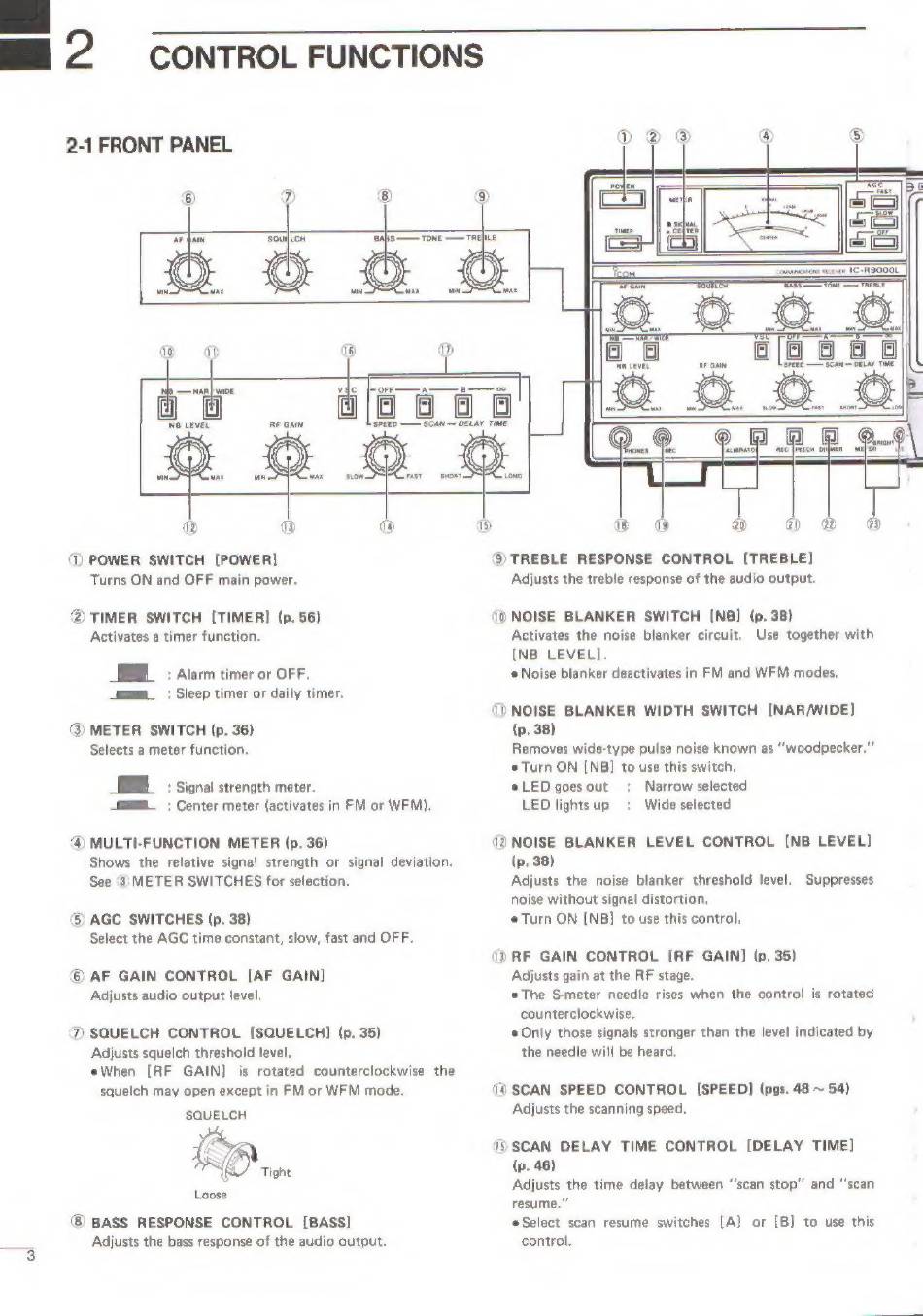

-1 FRONT PANEL
RF GAIN
NB LEVEL
@ a3 a)
) POWER SWITCH [POWER]
Turns ON and OFF main power.
2 TIMER SWITCH [TIMER] (p. 56)
Activates a timer function.
: &- : Alarm timer or OFF.
fmm: Sleep timer or daily timer.
(3) METER SWITCH (p, 36)
Selects a meter function.
s § : Signal strength meter.
mm. Center meter (activates in FM or WFM).
4) MULTI-FUNCTION METER (p. 36)
@
oe
2
Shows the relative signal strength or signal deviation.
See (33 METER SWITCHES for selection.
AGC SWITCHES (p. 38)
Select the AGC time constant, slow, fast and OFF.
) AF GAIN CONTROL [AF GAIN]
Adjusts audio output level,
) SQUELCH CONTROL [SQUELCH] (p. 35)
Adjusts squelch threshold level.
When [RF GAIN]
squelch may open except in FM or WFM mode.
SQUELCH
9...
Loose
'® BASS RESPONSE CONTROL [BASS]
Adjusts the bass response of the audio output.
CONTROL FUNCTIONS
BAlis —— TONE — TRE)ILE
is rotated counterclockwise the
ic)
(0
®
iE)
@
18) (9 20) ad a 2
TREBLE RESPONSE CONTROL [TREBLE]
Adjusts the treble response of the audio output.
NOISE BLANKER SWITCH [NB] (p. 38)
Activates the noise blanker circuit. Use together with
(NB LEVEL].
Noise blanker deactivates in FM and WFM modes.
NOISE BLANKER WIDTH SWITCH [NAR/WIDE]
(p, 38)
Removes wide-type pulse noise known as "woodpecker.""
© Turn ON [NB] to use this switch.
@ LED goes out Narrow selected
LED lights up Wide selected
NOISE BLANKER LEVEL CONTROL [NB LEVEL]
(p. 38)
Adjusts the noise blanker threshold level.
noise without signal distortion,
¢ Turn ON [NB] to use this control.
Suppresses
RF GAIN CONTROL [RF GAIN] (p. 35)
Adjusts gain at the RF stage.
©The S-meter needle rises when the control is rotated
counterclockwise.
Only those signals stronger than the level indicated by
the needle will be heard.
SCAN SPEED CONTROL [SPEED] (pgs. 48 ~ 54)
Adjusts the scanning speed,
SCAN DELAY TIME CONTROL [DELAY TIME]
(p. 46)
Adjusts the time delay between "'scan stop'' and ''scan
resume."
Select scan resume switches [A] or [B] to use this
control.
