2 CONTROL FUNCTIONS

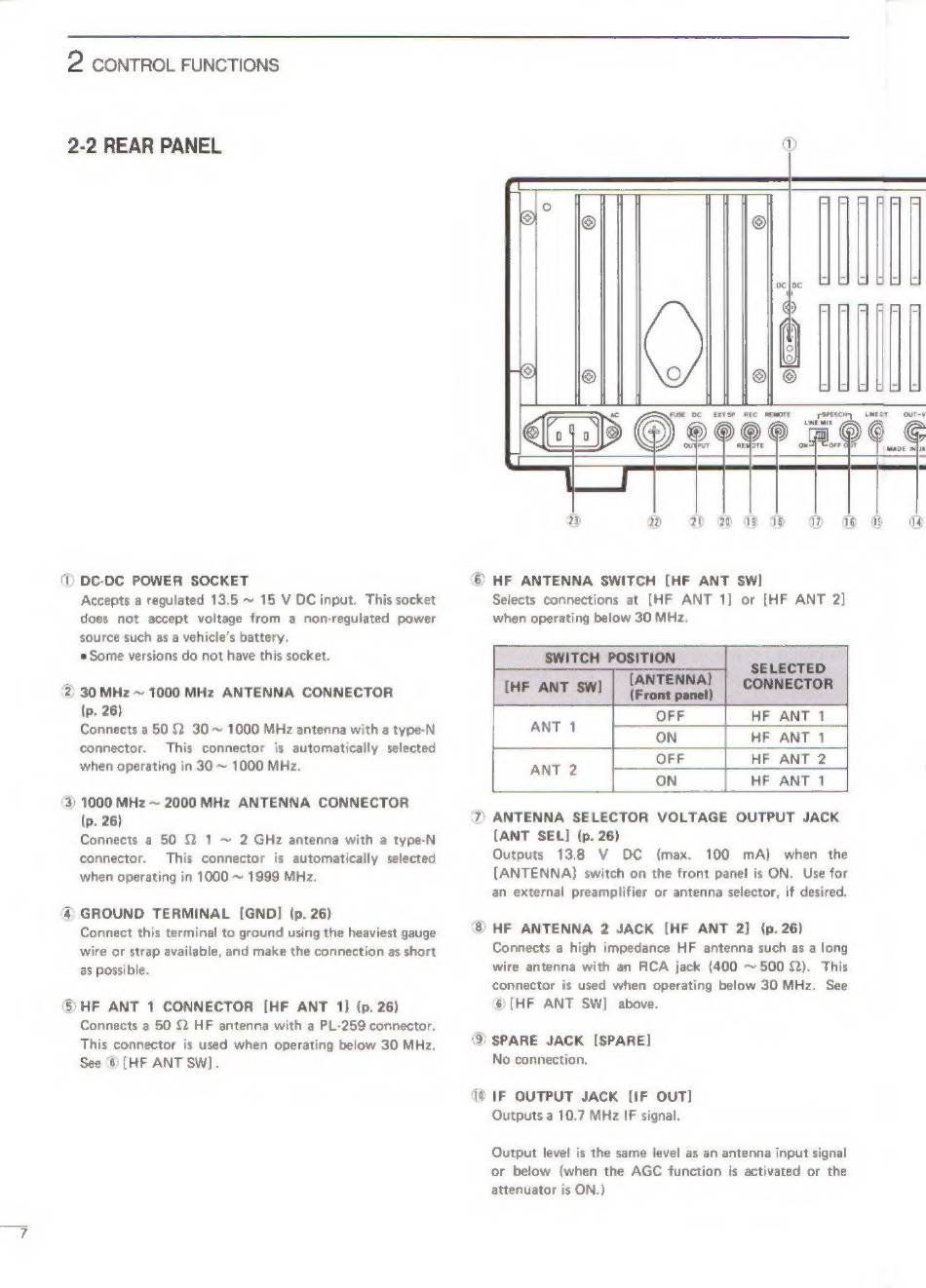

2-2 REAR PANEL
() DC-DC POWER SOCKET
Accepts a regulated 13.5 ~ 15 V DC input. This socket
does not accept voltage from a non-regulated power
source such as a vehicle's battery.
© Some versions do not have this socket.
2) 30 MHz ~ 1000 MHz ANTENNA CONNECTOR
(p. 26)
Connects a 50 82 30 ~ 1000 MHz antenna with a type-N
connector. This connector is automatically selected
when operating in 30 ~ 1000 MHz,
(3) 1000 MHz ~ 2000 MHz ANTENNA CONNECTOR
(p. 26)
Connects a 50 &2 1 ~ 2 GHz antenna with a type-N
connector. This connector is automatically selected
when operating in 1000 ~ 1999 MHz,
4) GROUND TERMINAL [GND] (p. 26)
Connect this terminal to ground using the heaviest gauge
wire or strap available, and make the connection as short
as possible.
(5) HF ANT 1 CONNECTOR [HF ANT 1] (p. 26)
Connects a 50 2. HF antenna with a PL-259 connector.
This connector is used when operating below 30 MHz.
See 6) [HF ANT SW].
6) HF ANTENNA SWITCH [HF ANT SW]
Selects connections at [HF ANT 1] or [HF ANT 2]
when operating below 30 MHz.
| SWITCH PosiTiON —| raed
ian] ea | cM
(Front panel
ee HF ANT 1
ANT! [on [ar ant
HE ANT 2
[on [HF ant 1
) ANTENNA SELECTOR VOLTAGE OUTPUT JACK
[ANT SEL] (p. 26)
Outputs 13.8 V DC (max. 100 mA) when the
[ANTENNA] switch on the front panel is ON. Use for
an external preamplifier or antenna selector, if desired.
ANT 2
i
8) HF ANTENNA 2 JACK [HF ANT 2] (p. 26)
Connects a high impedance HF antenna such as a long
wire antenna with an RCA jack (400 ~ 500 {2). This
connector is used when operating below 30 MHz. See
® [HF ANT SW] above.
( SPARE JACK [SPARE]
No connection.
10 IF OUTPUT JACK [IF OUT]
Outputs a 10.7 MHz IF signal.
Output level is the same level as an antenna input signal
or below (when the AGC function is activated or the
attenuator is ON.)
