INSTALLATIONS 4

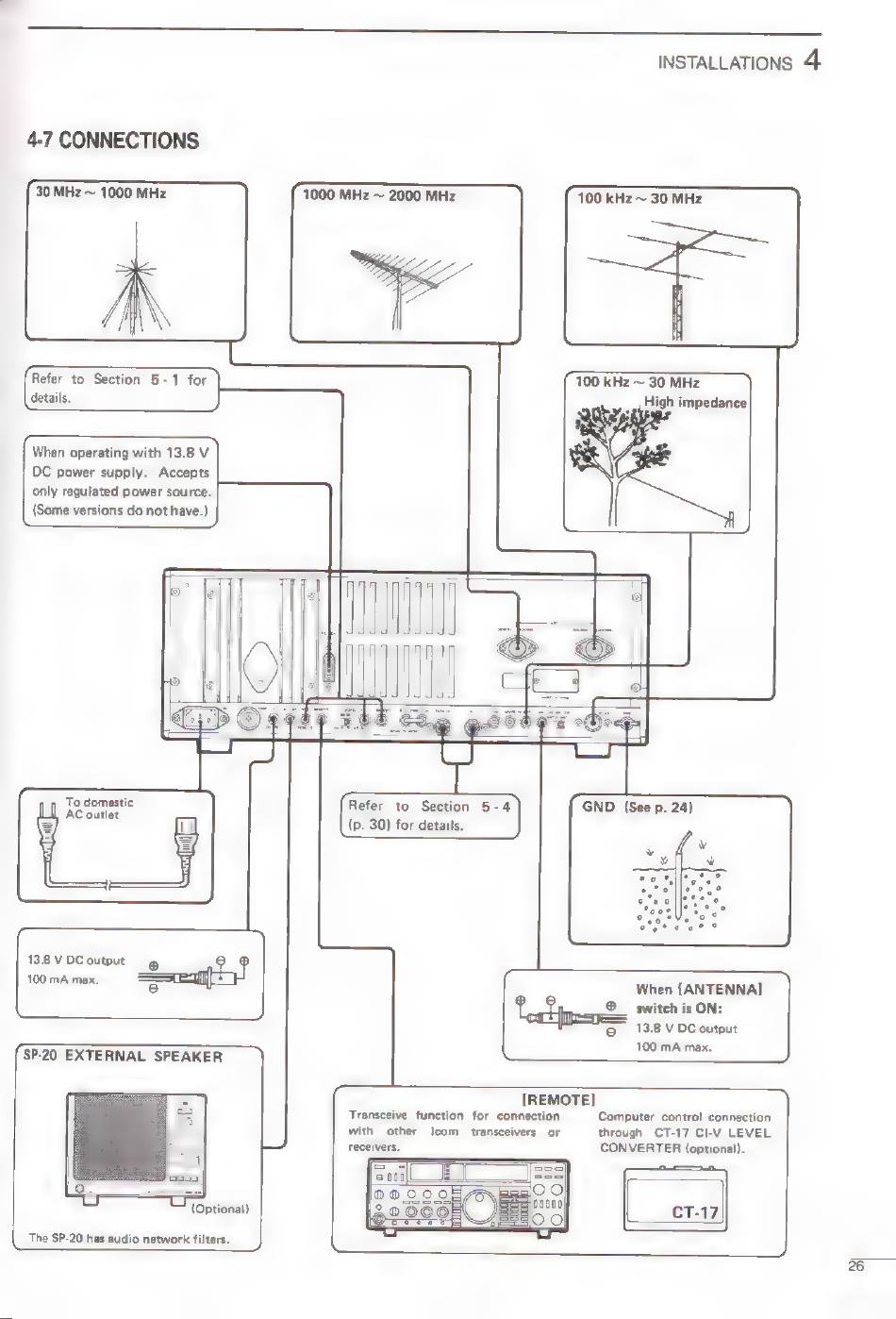

4-7 CONNECTIONS
Refer to Section 5-1 for
details.
When operating with 13.8 V
DC power supply. Accepts
only regulated power source.
(Some versions do not have.)
100 kHz ~ 30 MHz
High impedance
To domestic
I Ac outlet
13.8 V DC output ®
100 mA max.
eel pi
When [ANTENNA]
t 4 ®_ switch is ON:
13.8 V DC output
6
100 mA max.
SP-20 EXTERNAL SPEAKER
[REMOTE]
Transceive function for connection Computer control connection
with other Icom transceivers or through CT-17 CIl-V LEVEL
CONVERTER (optional).
(Optional)
The SP-20 has audio network filters.
