Icom IC-RSOOCOL Instruction Manual page 70

—iv
«Frequency coverage
Mode
e Receive system
e Intermediate frequencies
e Sensitivity
© Selectivity
¢ Audio output power
© Audio impedance
¢ Power supply requirement
Antenna impedance
¢ Power consumption
¢ Usable temperature range
Frequency stability
« Dimensions
e Weight

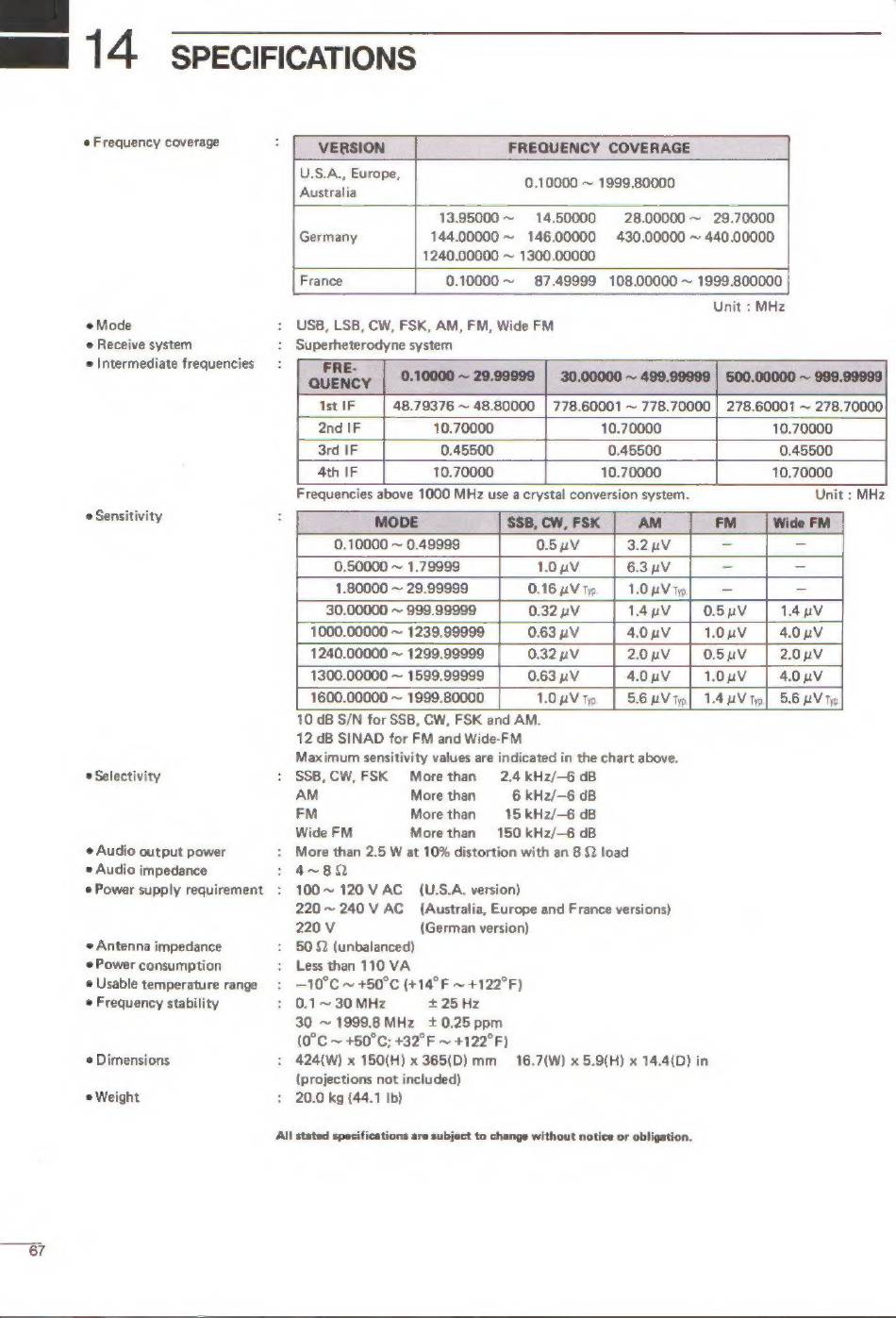

SPECIFICATIONS
VERSION FREQUENCY COVERAGE
., Europe,
penn
13.95000 ~ 14,50000
144.00000 ~ 146.00000
1240.00000 ~ 1300.00000
0.10000 ~ 87.49999 108.00000 ~ 1999.800000
Unit : MHz
28.00000 ~ 29.70000
430.00000 ~ 440.00000
USB, LSB, CW, FSK, AM, FM, Wide FM
Superheterodyne system
278.60001 ~ 278.70000
10.70000
0.45500
70 nV
0.16 LV Typ.
7000. SOG os 1239, 99999
1240.00000 ~ 1299.99999 |
1300.00000 ~ 1599.99999
1600.00000 ~ 1999.80000
10 dB S/N for SSB, CW, FSK and AM.
12 dB SINAD for FM and Wide-FM
Maximum sensitivity values are indicated in the chart above.
0.63 BV
0.32 nV
0.63 pV
SSB,CW,FSK Morethan 2.4 kHz/—-6 dB
AM More than 6 kHz/—6 dB
FM More than 15 kHz/—6 dB
Wide FM More than 150 kHz/—6 dB
More than 2.5 W at 10% distortion with an 8 Q load
4~82
100~120VAC (U.S.A. version)
220~ 240 V AC (Australia, Europe and France versions)
220 V {German version)
50 2 (unbalanced)
Less than 110 VA
—10°C ~ +50°C (+14°F ~ +122°F)
0.1 ~ 30 MHz +25 Hz
30 ~ 1999.8MHz +0.25 ppm
(0°C ~ +50°C; +32°F ~ +122°F)
424(W) x 150(H) x 365(D) mm
(projections not included)
20.0 kg (44.1 Ib)
16.7(W) x 5.9(H) x 14.4(D) in
All stated specifications are subject to change without notice or obligation.
