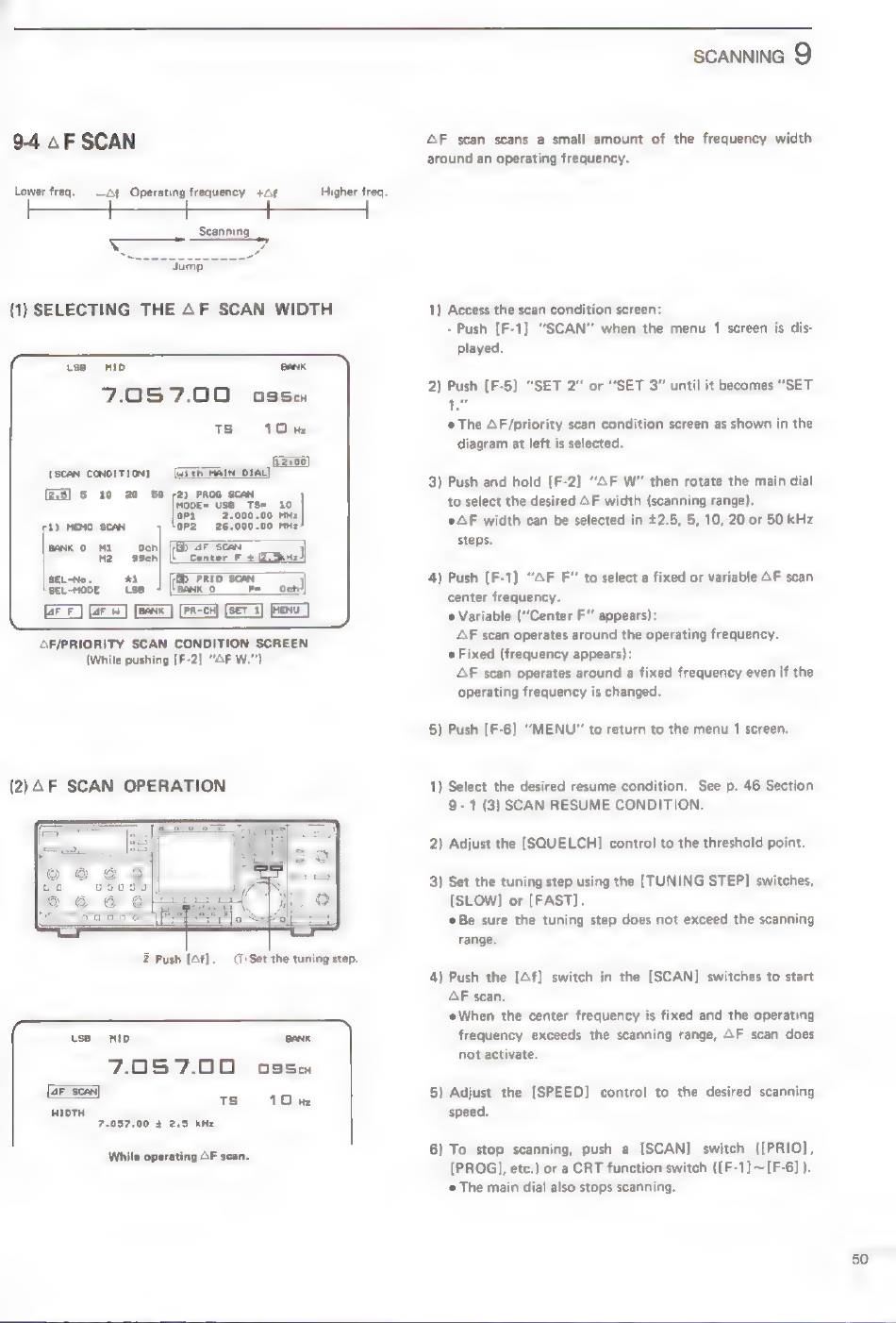

9-4 AF SCAN
Lower freq. —Af Operating frequency +Af Higher freq.
Scanning
po ee
(1) SELECTING THE AF SCAN WIDTH
LsB MID BANK
7.057.00 ossca
Ts 101
(£2100)
[SCAN CONDITION]
fas ee ae
MODE= USB TS= 10
OP1 = 2,000.00 MHz
1) MEMO SCAN OP2 26.000.00 MHz
BANK O Mi Och| [)
M2 99ch 23
SEL-No. a (@PRIO SCAN 7}
SEL-MODE LSB BANK 0 P= Och:
GEE) EH) [Bane] [Pace (SET 3) enw]
OF/PRIORITY SCAN CONDITION SCREEN
(While pushing [F-2] "AF W.")
(2) AF SCAN OPERATION
@ Push [Af], (1) Set the tuning step.
LsB MID BANK
7.057.00 osscu
TS 10 tz
WIDTH
7.057,00 + 2.5 kHz
While operating AF scan.
SCANNING Q
AF scan scans a small amount of the frequency width
around an operating frequency.
1) Access the scan condition screen:
- Push [F-1] "SCAN" when the menu 1 screen is dis-
played.
2) Push [F-5] "SET 2" or "SET 3" until it becomes "SET
1"
The AF/priority scan condition screen as shown in the
diagram at left is selected.
3) Push and hold [F-2] "AF W" then rotate the main dial
to select the desired AF width (scanning range).
eAF width can be selected in +2.5, 5, 10, 20 or 50 kHz
steps.
4) Push [F-1] "AF F" to select a fixed or variable AF scan
center frequency.
Variable ('Center F" appears):
AF scan operates around the operating frequency.
« Fixed (frequency appears):
AF scan operates around a fixed frequency even if the
operating frequency is changed.
5) Push [F-6] "MENU" to return to the menu 1 screen.
1) Select the desired resume condition, See p. 46 Section
9-1 (3) SCAN RESUME CONDITION.
2) Adjust the [SQUELCH] control to the threshold point.
3) Set the tuning step using the [TUNING STEP] switches,
[SLOW] or [FAST].
Be sure the tuning step does not exceed the scanning
range.
4) Push the [Af] switch in the [SCAN] switches to start
AF scan.
When the center frequency is fixed and the operating
frequency exceeds the scanning range, AF scan does
not activate.
5) Adjust the [SPEED] control to the desired scanning
speed.
6) To stop scanning, push a [SCAN] switch ([PRIO],
(PROG], etc.) or a CRT function switch (([F-1] ~[F-6] ).
@ The main dial also stops scanning.
