Icom IC-RSOOCOL Instruction Manual page 69

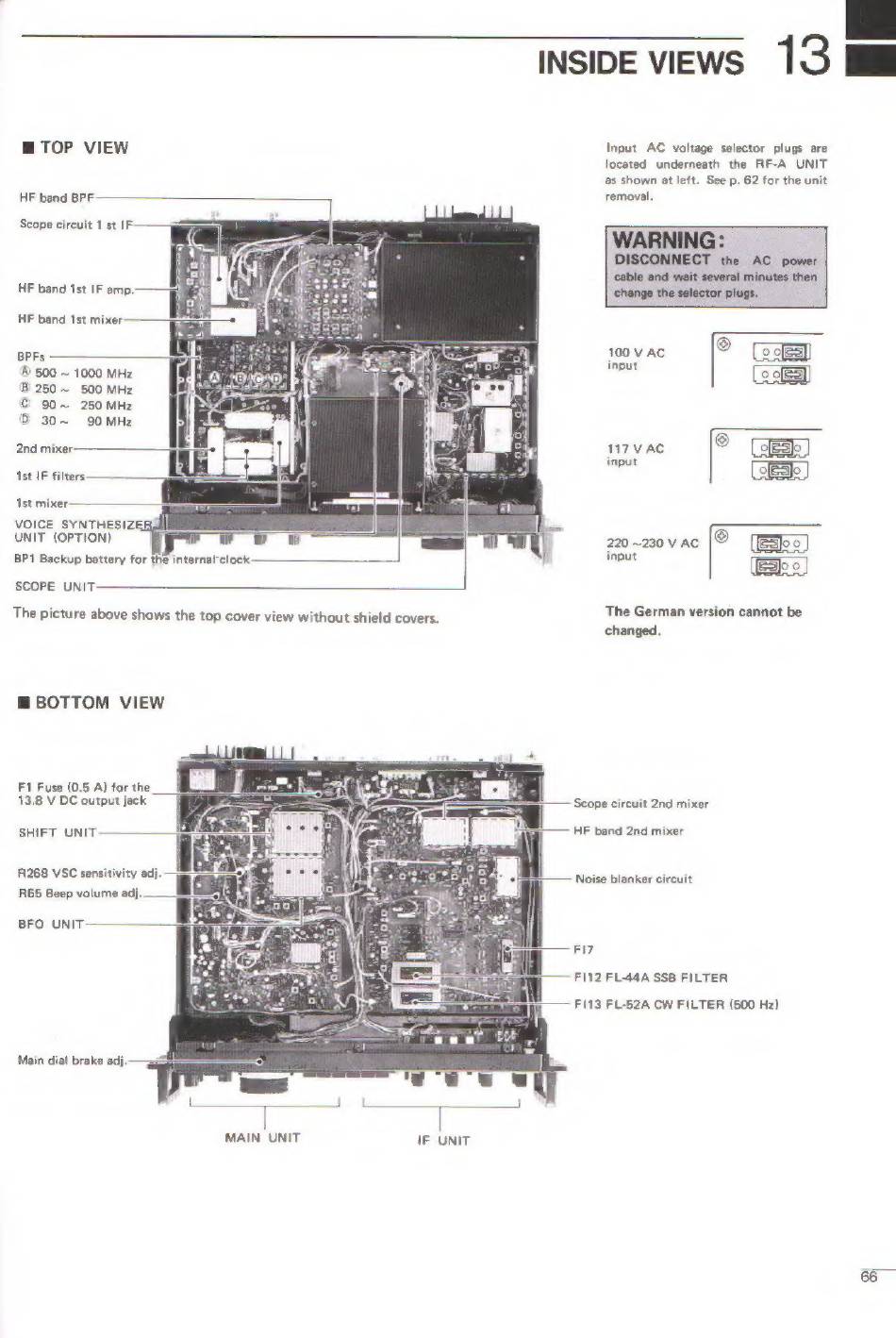

INSIDE VIEWS 13
mTOP VIEW
HF band BPF
Scope circuit 1 st IF-
pe ees
HF band 1st IF amp.
HF band 1st mixer
|
BPFs
® 500 ~ 1000 MHz
Ist IF filters
Ist mixer
VOICE SYNTHESIZI
UNIT (OPTION)
BP1 Backup battery for the internal*clock
SCOPE UNIT
@ BOTTOM VIEW
F1 Fuse (0,5 A) for the
13.8 V DC output jack
SHIFT UNIT
R268 VSC sensitivity adj.
R65 Beep volume adj.
BFO UNIT
Main dial brake adj.
MAIN UNIT IF UNIT
Input AC voltage selector plugs are
located underneath the RF-A UNIT
as shown at left. See p. 62 for the unit
removal.
100 V AC
input
117 VAC
input
220 ~230 V AC
input
The German version cannot be
changed,
Scope circuit 2nd mixer
HF band 2nd mixer
Noise blanker circuit
FI7
FI12 FL44A SSB FILTER
Fi13 FL-52A CW FILTER (500 Hz)
a
