3 LCD MONITOR SCREEN MENU

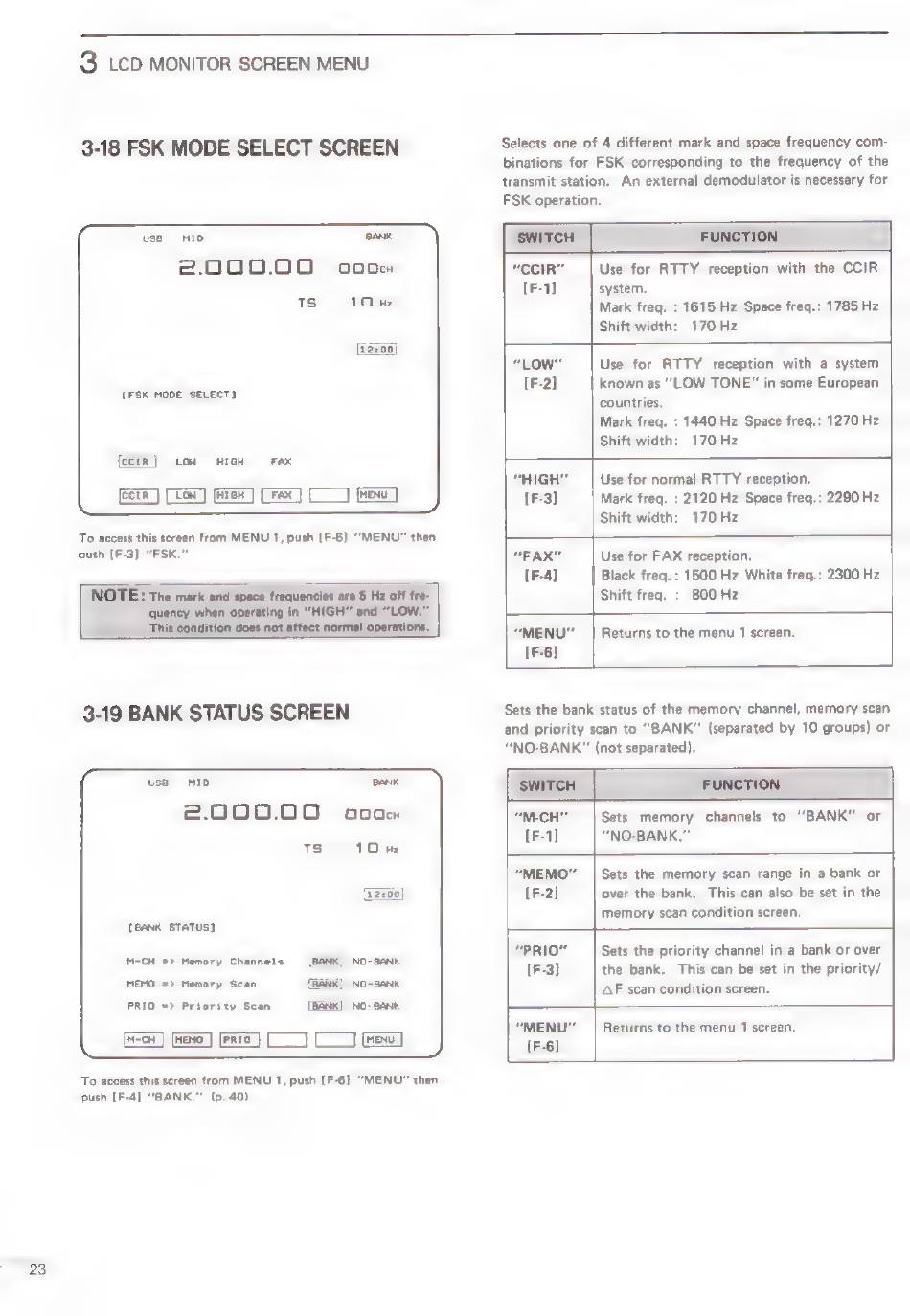

3-18 FSK MODE SELECT SCREEN
use MIO
2,000.00
TS
[FSK MODE SELECT]
CCIR LOW HIGH FAX
Gere] fe] ee) C) eee]
To access this screen from MENU 1, push [F-6] "MENU" then
push [F-3] "FSK.""
Selects one of 4 different mark and space frequency com-
binations for FSK corresponding to the frequency of the
transmit station. An external demodulator is necessary for
FSK operation.
"CCIR"
(F-1]
Use for RTTY reception with the CCIR
system.
Mark freq. : 1615 Hz Space freq.: 1785 Hz
Shift width: 170 Hz
Use for RTTY reception with a system
(F-2] known as "LOW TONE" in some European
countries,
Mark freq. : 1440 Hz Space freq.: 1270 Hz
Shift width: 170 Hz
"HIGH"
[F-3]
Use for normal RTTY reception.
Mark freq. : 2120 Hz Space freq.: 2290 Hz
Shift width: 170 Hz
Use for FAX reception,
(F-4] Black freq. : 1500 Hz White freq.: 2300 Hz
800 Hz
ITE: The mark and space frequencies are 5 Hz off fre-
quency when operating in "HIGH" and "LOW."
This condition does not affect normal operations.
Shift freq.
"MENU" | Returns to the menu 1 screen.
23
3-19 BANK STATUS SCREEN
uUsB MID BANK
2.000.00 ooom
Ts 10
52108)
(BANK STATUS]
M-CH => Memory Channels [BANK] NO-BANK
MEMO => Memory Scan
PRIO => Priority Scan NO-BANK
(HecH] [reno] [erro] (_] (__] [renv]
To access this screen from MENU 1, push [F-6] "MENU" then
push [F-4] "BANK." (p. 40)
[F-6]
Sets the bank status of the memory channel, memory scan
and priority scan to "BANK" (separated by 10 groups) or
"NO-BANK" (not separated).
Sets memory channels to "BANK" or
"NO-BANK."
Sets the memory scan range in a bank or
over the bank. This can also be set in the
memory scan condition screen,
"PRIO" Sets the priority channel in a bank or over
[F-3] the bank. This can be set in the priority/
AF scan condition screen.
bal Returns to the menu 1 screen,
