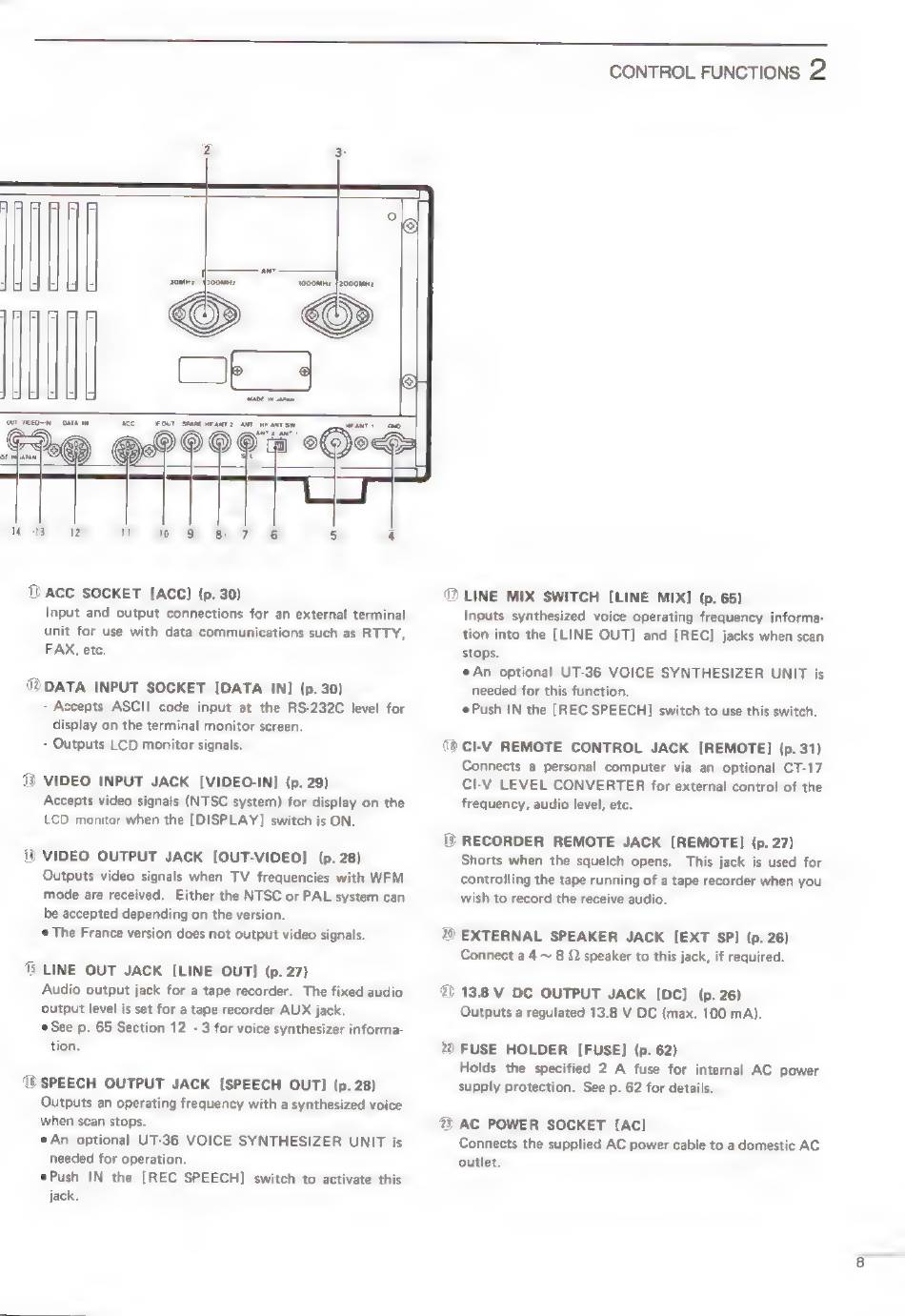

Icom IC-RSOOCOL Instruction Manual page 11

) ACC SOCKET [ACC] (p. 30)
Input and output connections for an external terminal
unit for use with data communications such as RTTY,
FAX, etc.
13 VIDEO INPUT JACK [VIDEO-IN] (p. 29)
Accepts video signals (NTSC system) for display on the
LCD monitor when the [DISPLAY] switch is ON.
* The France version does not output video signals.
@
LINE OUT JACK [LINE OUT] (p. 27)
Audio output jack for a tape recorder. The fixed audio
output level is set for a tape recorder AUX jack.
See p. 65 Section 12 - 3 for voice synthesizer informa-
tion.
8 SPEECH OUTPUT JACK [SPEECH OUT] (p. 28)
Outputs an operating frequency with a synthesized voice
when scan stops.
¢An optional UT-36 VOICE SYNTHESIZER UNIT is
needed for operation.
ePush IN the [REC SPEECH] switch to activate this
jack.
CONTROL FUNCTIONS 2
(1 LINE MIX SWITCH [LINE MIX] (p. 65)
Inputs synthesized voice operating frequency informa-
tion into the [LINE OUT] and [REC] jacks when scan
stops.
¢An optional UT-36 VOICE SYNTHESIZER UNIT is
needed for this function.
Push IN the [REC SPEECH] switch to use this switch.
(® Cl-V REMOTE CONTROL JACK [REMOTE] (p. 31)
Connects a personal computer via an optional CT-17
Cl-V LEVEL CONVERTER for external contro! of the
frequency, audio level, etc.
19 RECORDER REMOTE JACK [REMOTE] (p. 27)
Shorts when the squelch opens. This jack is used for
controlling the tape running of a tape recorder when you
wish to record the receive audio.
2 EXTERNAL SPEAKER JACK [EXT SP] (p. 26)
Connect a 4 ~ 8 2 speaker to this jack, if required.
2) FUSE HOLDER [FUSE] (p. 62)
Holds the specified 2 A fuse for internal AC power
supply protection. See p. 62 for details.
2 AC POWER SOCKET [AC]
Connects the supplied AC power cable to a domestic AC
outlet.
