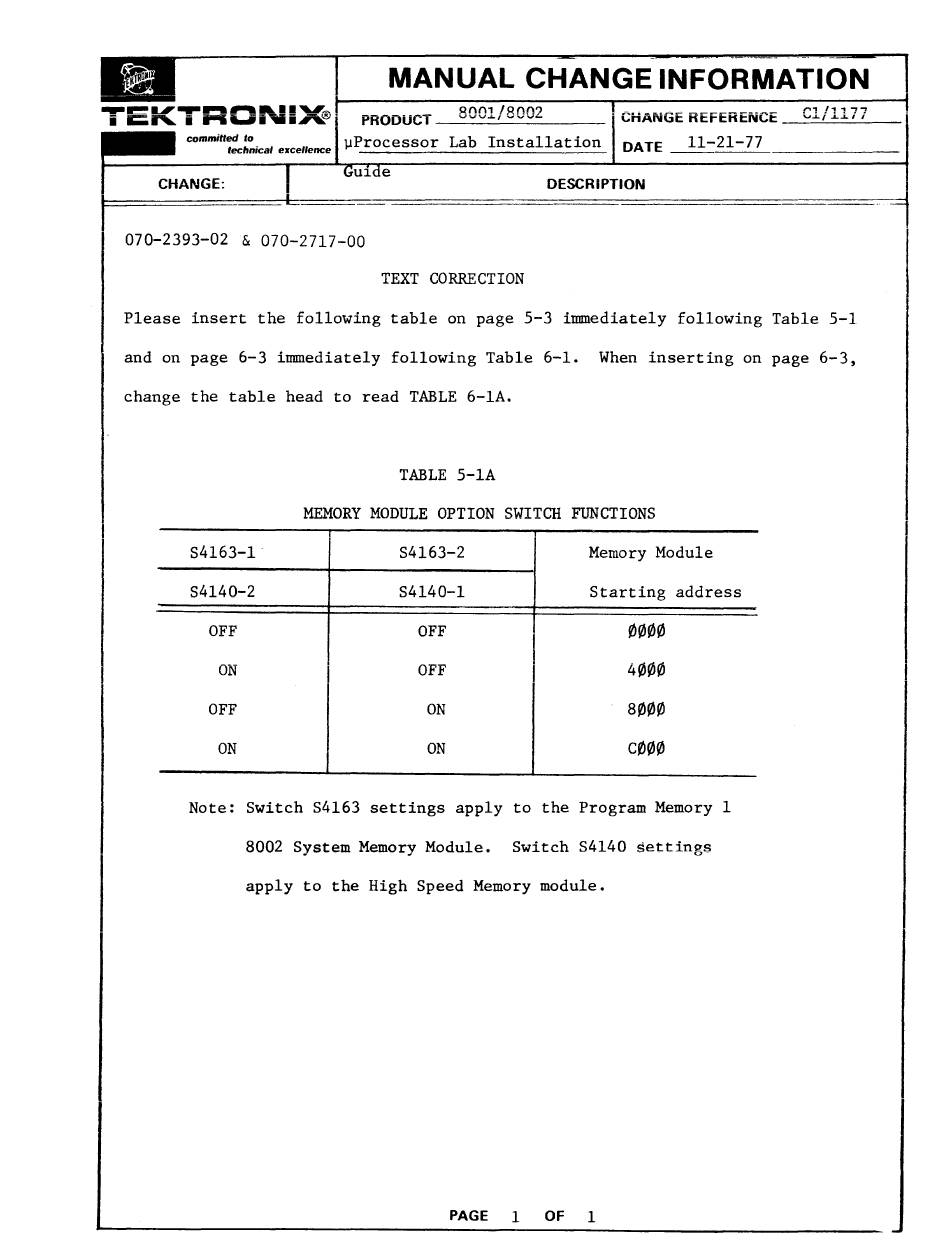

MANUAL CHANGE INFORMATION
committed to
technical excellence
Lab Installation
11-21-77
DATE
DESCRIPTION
070-2393-02 & 070-2717-00
TEXT CORRE CT ION
Please insert the following table on page 5-3 innnediately following Table 5-1
and on page 6-3 innnediately following Table 6-1. When inserting on page 6-3,
change the table head to read TABLE 6-lA.
TABLE 5-lA
MEMORY MODULE OPTION SWITCH FUNCTIONS
S4163-l.
S4163-2 Memory Module
S4140-2 S4140-l Starting address
OFF OFF
0000
ON OFF
4000
OFF ON
8000
ON ON
C000
Note: Switch S4163 settings apply to the Program Memory 1
8002 System Memory Module. Switch S4140
settings
apply to the High Speed Memory module.
PAGE
1 OF 1
