General Information

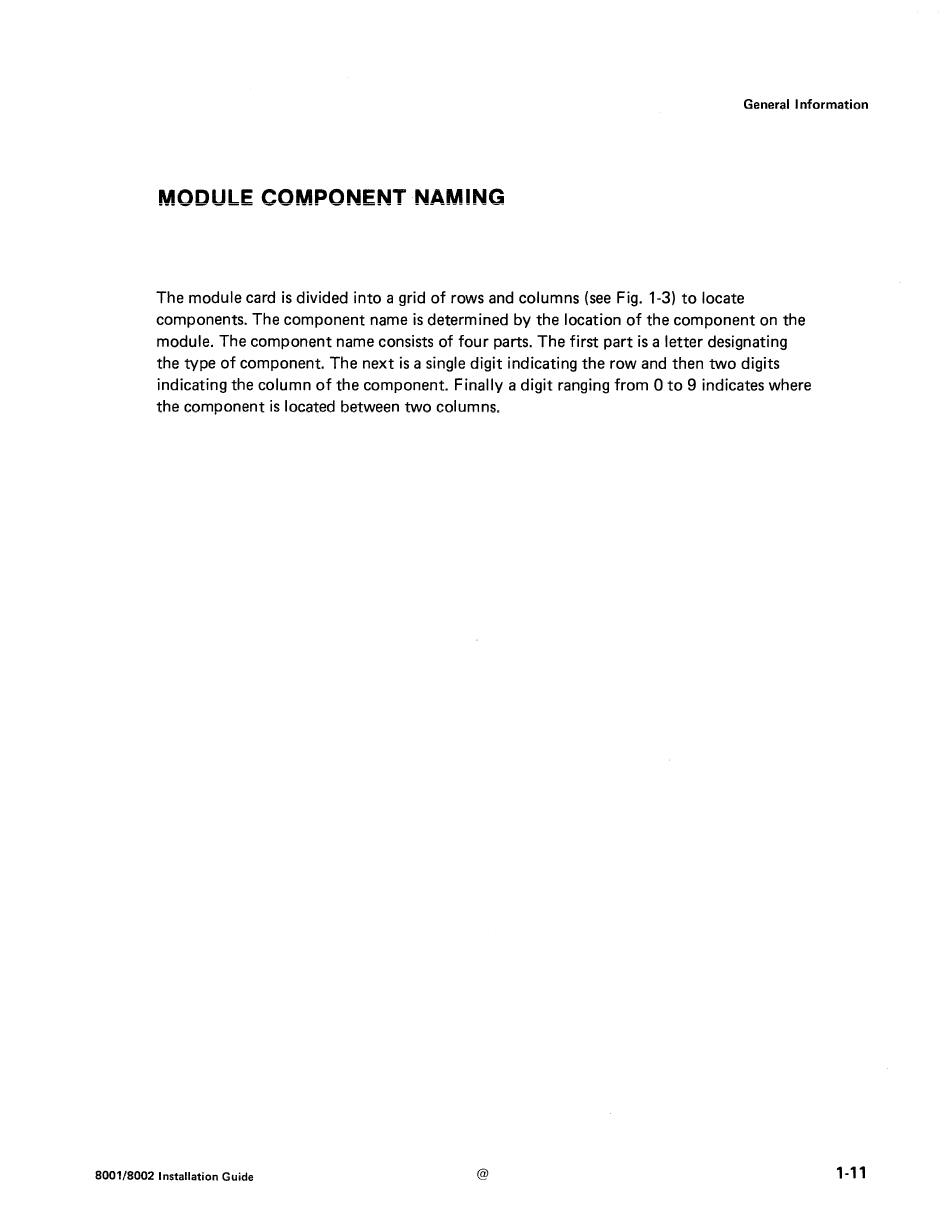

MODULE COMPONENT NAMING
The module card is divided into a grid of rows and columns (see Fig. 1-3) to locate
components. The component name is determined by the location of the component on the
module. The component name consists of four parts. The first part is a letter designating
the type of component. The next is a single digit indicating the row and then two digits
indicating the column of the component. Finally a digit ranging from 0 to 9 indicates where
the component is located between two columns.
