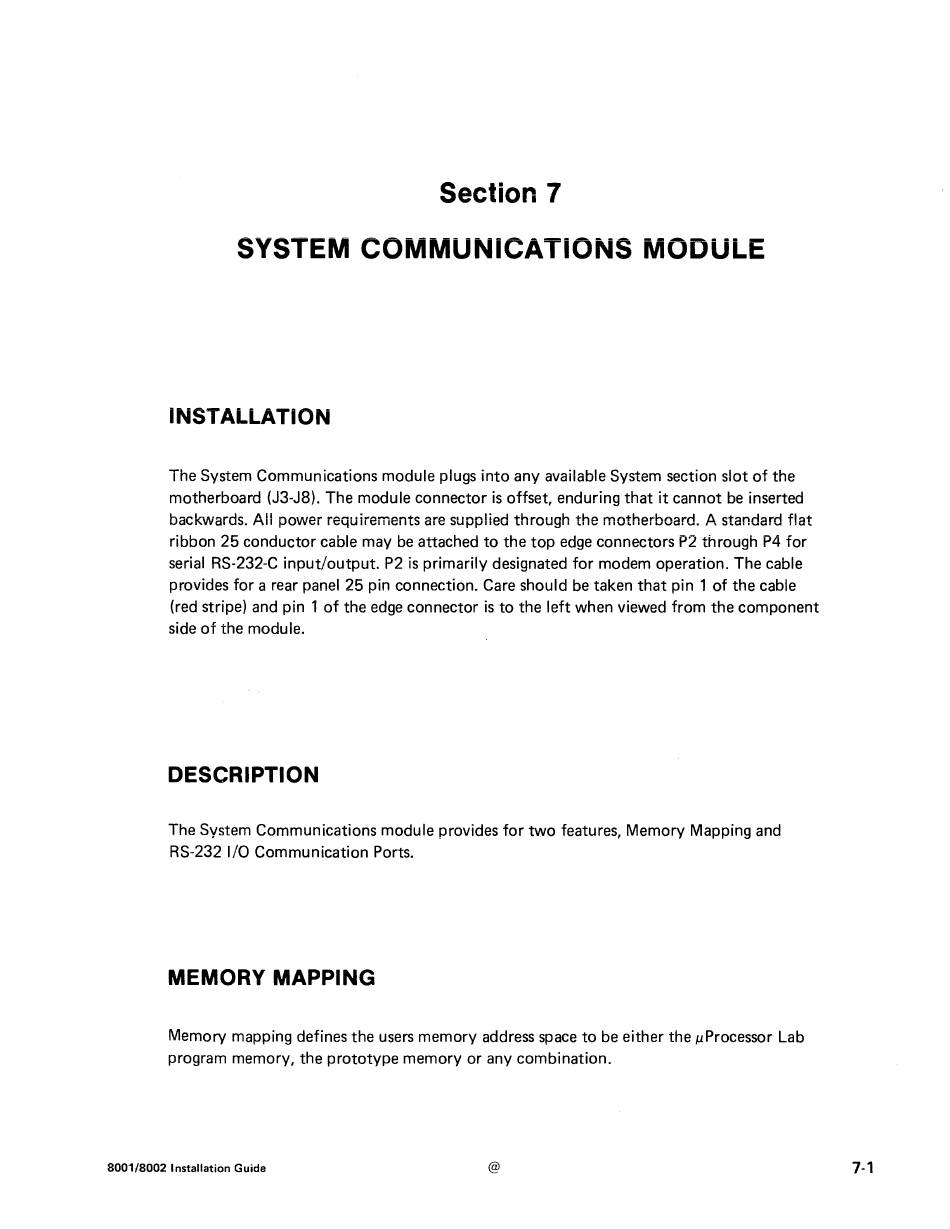

SYSTEM COMMUNICATIONS MODULE
INSTALLATION
The System Communications module plugs into any available System section slot of the
motherboard (J3-J8). The module connector is offset, enduring that it cannot be inserted
backwards. All power requirements are supplied through the motherboard. A standard flat
ribbon 25 conductor cable may be attached to the top edge connectors P2 through P4 for
serial RS-232-C input/output. P2 is primarily designated for modem operation. The cable
provides for a rear panel 25 pin connection. Care should be taken that pin 1 of the cable
(red stripe) and pin 1 of the edge connector is to the left when viewed from the component
side of the mo du le.
DESCRIPTION
The System Communications module provides for two features, Memory Mapping and
RS-232
1/0
Communication Ports.
MEMORY MAPPING
Memory mapping defines the users memory address space to be either the µProcessor Lab
program memory, the prototype memory or any combination.
8001/8002 Installation Guide
@
