General Information

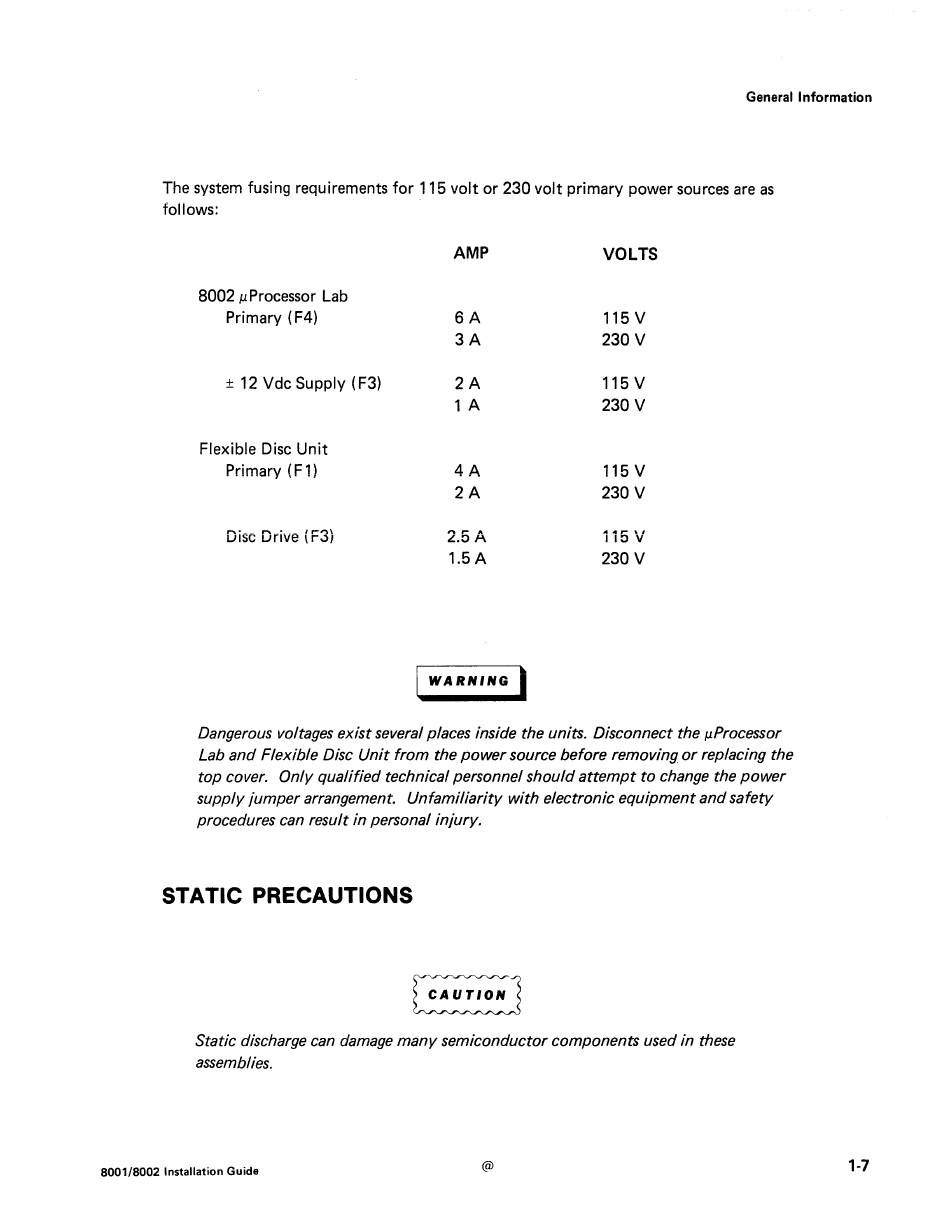

The system fusing requirements for 115 volt or 230 volt primary power sources are as
follows:
8002 µProcessor Lab
Primary ( F4)
±
12 Vdc Supply ( F3)
Flexible Disc Unit
Primary ( F
1)
Disc Drive ( F3)
AMP
6A
3A
2A
1 A
4A
2A
2.5A
1.5 A
WARNING
I
VOLTS
115
v
230
v
115
v
230
v
115
v
230
v
i i5
v
230
v
Dangerous voltages exist several places inside the units. Disconnect the µProcessor
Lab and Flexible Disc Unit from the power source before removing or replacing the
top cover. Only qualified technical personnel should attempt to change the power
supply jumper arrangement. Unfamiliarity with electronic equipment and safety
procedures can result in personal injury.
STATIC PRECAUTIONS
Static discharge can damage many semiconductor components used in these
assemblies.
8001/8002 Installation Guide
1-7
