Emulator Processor Modules
8080 Emulator Processor
No switches or jumper changes. All existing jumpers are configured for the 8001/8002
µProcessor Lab.
6800 Emulator Processor
Jumpers
Two jumper selections may be made on the 6800 Emulator Processor. One selection will
control clock rate, the other will disable the on-board RAM. See Fig. 10-2 for jumper
locations.

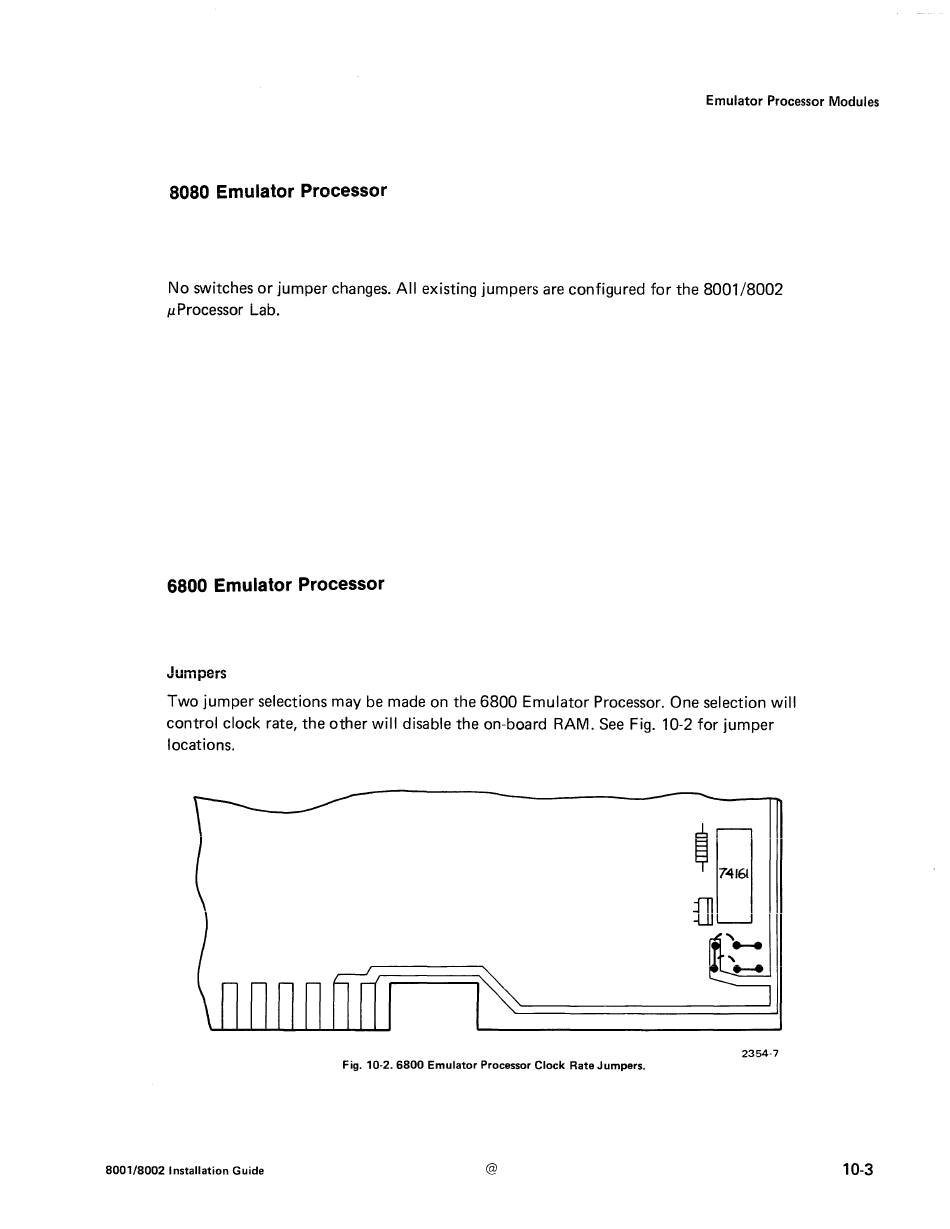

Fig. 10-2. 6800 Emulator Processor Clock Rate Jumpers.
8001/8002 Installation Guide
@
cb
I I
~
74161
2354-7
10-3
