Prototype Control Probes

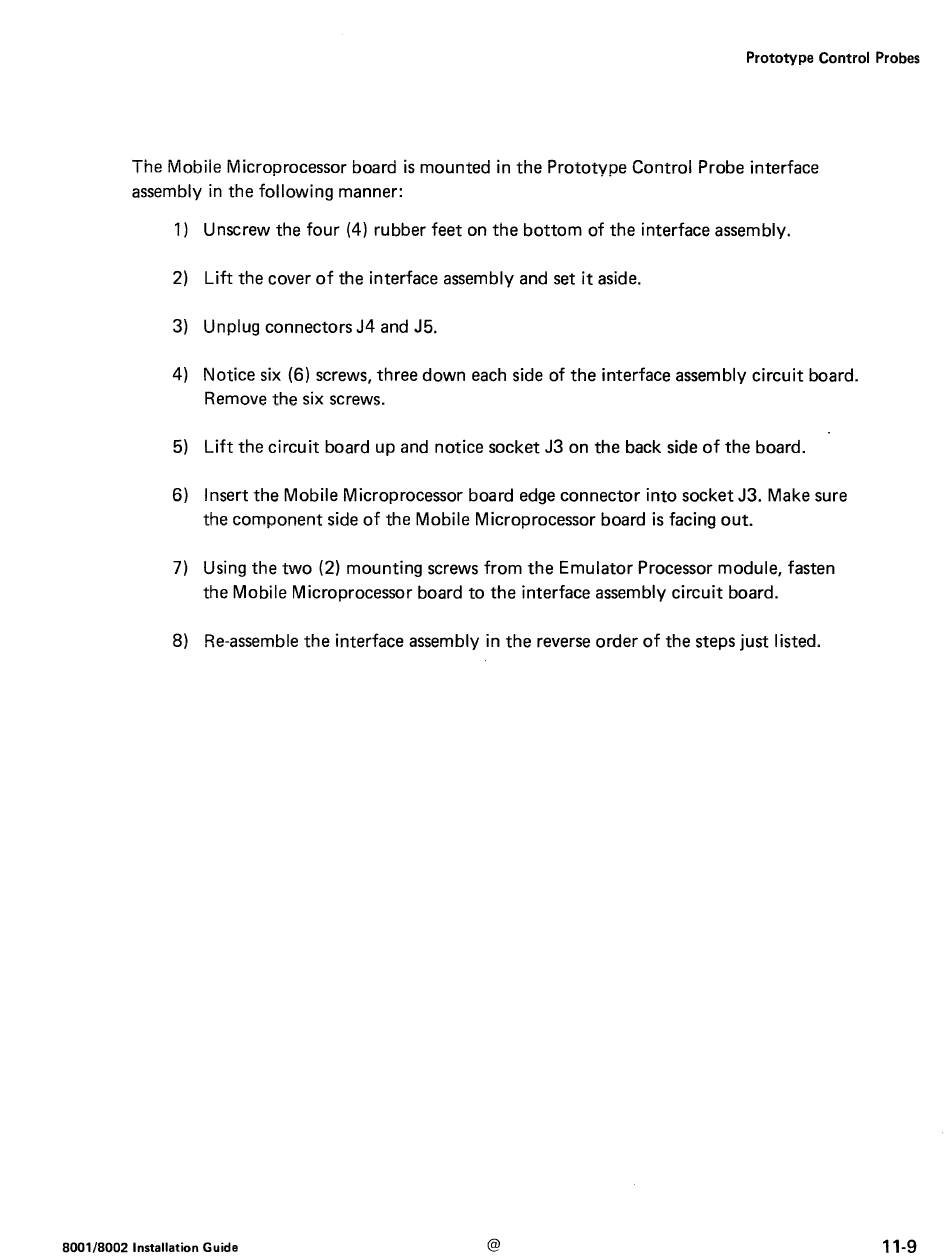

The Mobile Microprocessor board is mounted in the Prototype Controi Probe interface
assembly in the following manner:
1) Unscrew the four (4) rubber feet on the bottom of the interface assembly.
2) Lift the cover of the interface assembly and set it aside.
3) Unplug connectors J4 and J5.
4) Notice six (6) screws, three down each side of the interface assembly circuit board.
Remove the six screws.
5) Lift the circuit board up and notice socket J3 on the back side of the board.
6) Insert the Mobile Microprocessor board edge connector into socket J3. Make sure
the component side of the Mobile Microprocessor board is facing out.
7) Using the two (2) mounting screws from the Emulator Processor module, fasten
the Mobile Microprocessor board to the interface assembly circuit board.
8) Re-assemble the interface assembly in the reverse order of the steps just listed.
