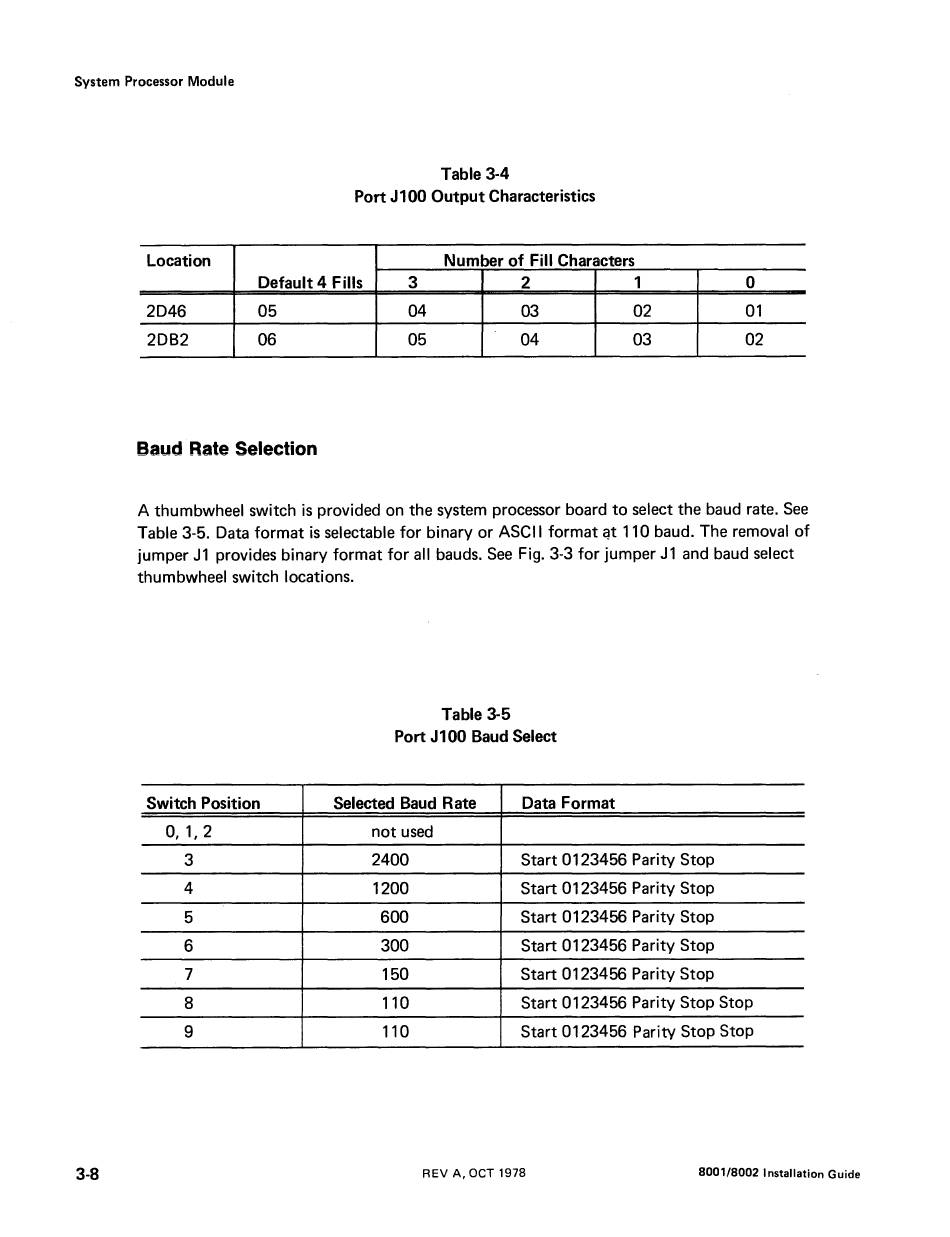

System Processor Module
3-8
Table 3-4
Port J 100 Output Characteristics
Location Number of Fill Characters
Default 4 Fills 3
2
1 0
2046 05 04 03 02 01
2082 06 05 04 03 02
Baud Rate Selection
A thumbwheel switch is provided on the system processor board to select the baud rate. See
Table 3-5. Data format is selectable for binary or ASCII format
~t
110 baud. The removal of
jumper J1 provides binary format for all bauds. See Fig. 3-3 for jumper J1 and baud select
thumbwheel switch locations.
Table 3-5
Port J 100 Baud Select
Switch Position Selected Baud Rate Data Format
0, 1, 2
not used
3 2400
Start 0123456 Parity Stop
4
1200
Start 0123456 Parity Stop
5
600 Start 0123456 Parity Stop
6 300
Start 0123456 Parity Stop
7 150 Start 0123456 Parity Stop
8 110
Start 0123456 Parity Stop Stop
9 110
Start 0123456 Parity Stop Stop
REV A, OCT 1978 8001/8002 Installation Guide
