Tektronix KEITHLEY 8606 Instruction Sheet

Keithley Instruments, Inc.
28775 Aurora Road
Cleveland, Ohio 44139
1-888-KEITHLEY
http://www.keithley.com

Description

The Keithley Instruments Model 8606 High Performance Probe Tip Kit consists of one red and one black of the
following tips:
• Spade lug
• Alligator clip
• Spring hook test probe
• Insulated banana jack to standard banana plug adapter
Item shipped may vary from model pictured here.
To avoid a shock hazard and possible instrument damage, do not use the Model 8606 probe
tips to measure voltages that exceed 30 V
Do not exceed the maximum signal levels of the accessory or the attached instrument, as
defined in the specifications and operating information.
Inspect the probe tips, lead insulation, and insulating sheaths for wear, cracks, or breaks
before each use.
To prevent voltages from being exposed or connections from shorting together, make sure
the probe tips and test leads are properly connected before applying power.
The banana adapter is intended for connection to a fixed installation, such as a 5-way binding
post. It is not a hand held probe. Maintain 16 mm minimum distance at all times from the
uninsulated tip as indicated by the tactile barrier.
PA-378 Rev. C / October 2013
Model 8606 High Performance Probe Tip Kit

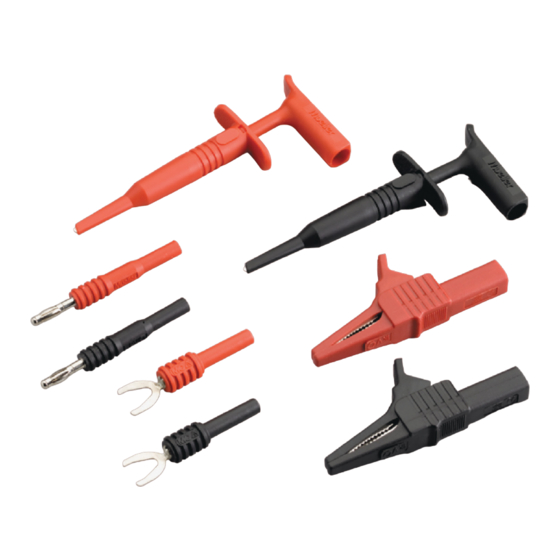

Figure 1: Model 8606 High Performance Probe Tip Kit
*PA378C*
, 42 V .
RMS peak
Instruction Sheet
1
