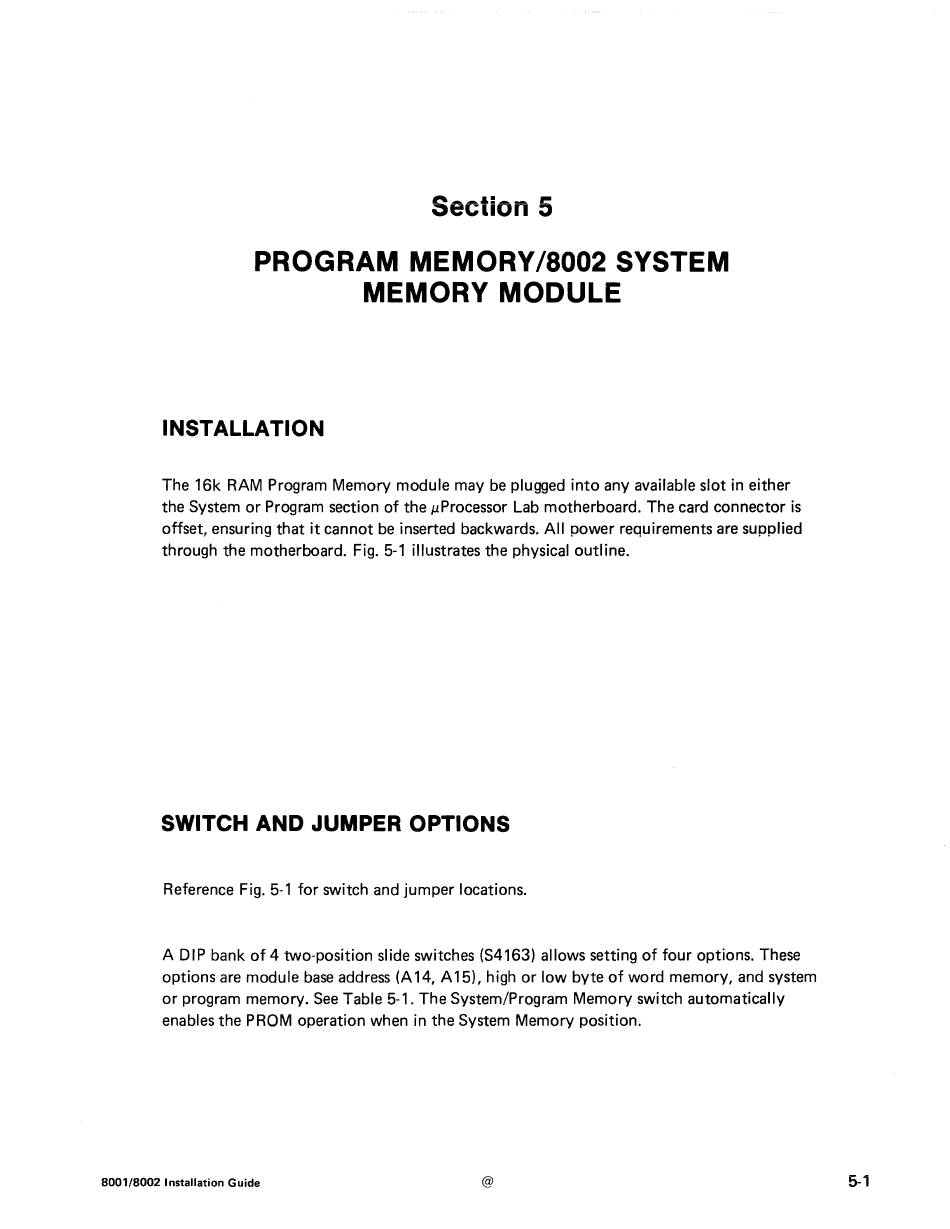

Section 5
PROGRAM MEMORY /8002 SYSTEM
MEMORY MODULE
INSTALLATION
The 16k RAM Program Memory module may be plugged into any available slot in either
the System or Program section of the µProcessor Lab motherboard. The card connector is
offset, ensuring that it cannot be inserted backwards. All power requirements are supplied
through the motherboard. Fig. 5-1 illustrates the physical outline.
SWITCH AND JUMPER OPTIONS
Reference Fig. 5-1 for switch and jumper locations.
A DIP bank of 4 two-position slide switches (S4163) allows setting of four options. These
options are module base address (A 14, A 15), high or low byte of word memory, and system
or program memory. See Table 5-1. The System/Program Memory switch automatically
enables the PROM operation when in the System Memory position.
