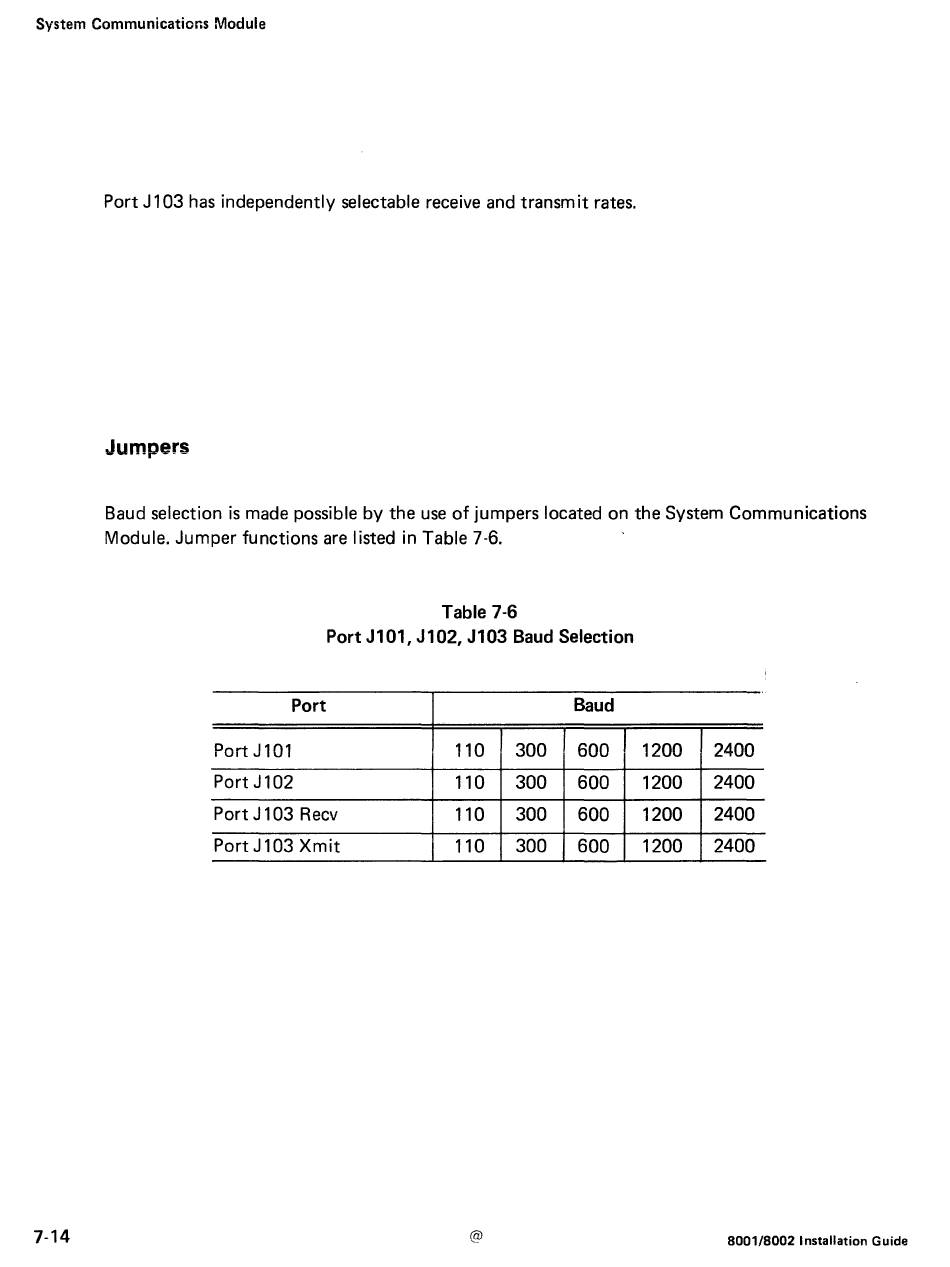

Jumpers - Tektronix 8001A Installation Manual

System Communications Module
7-14
Port J 103 has independently selectable receive and transmit rates.
Jumpers
Baud selection is made possible by the use of jumpers located on the System Communications
Module. Jumper functions are listed in Table 7-6.
Table 7-6
Port J101, J102, J103 Baud Selection
Port Baud
Port J 101 110 300 600 1200 2400
Port J102
110 300 600 1200 2400
Port J 103 Recv 110 300 600 1200 2400
Port J 103 Xmit
110 300 600 1200 2400
@
