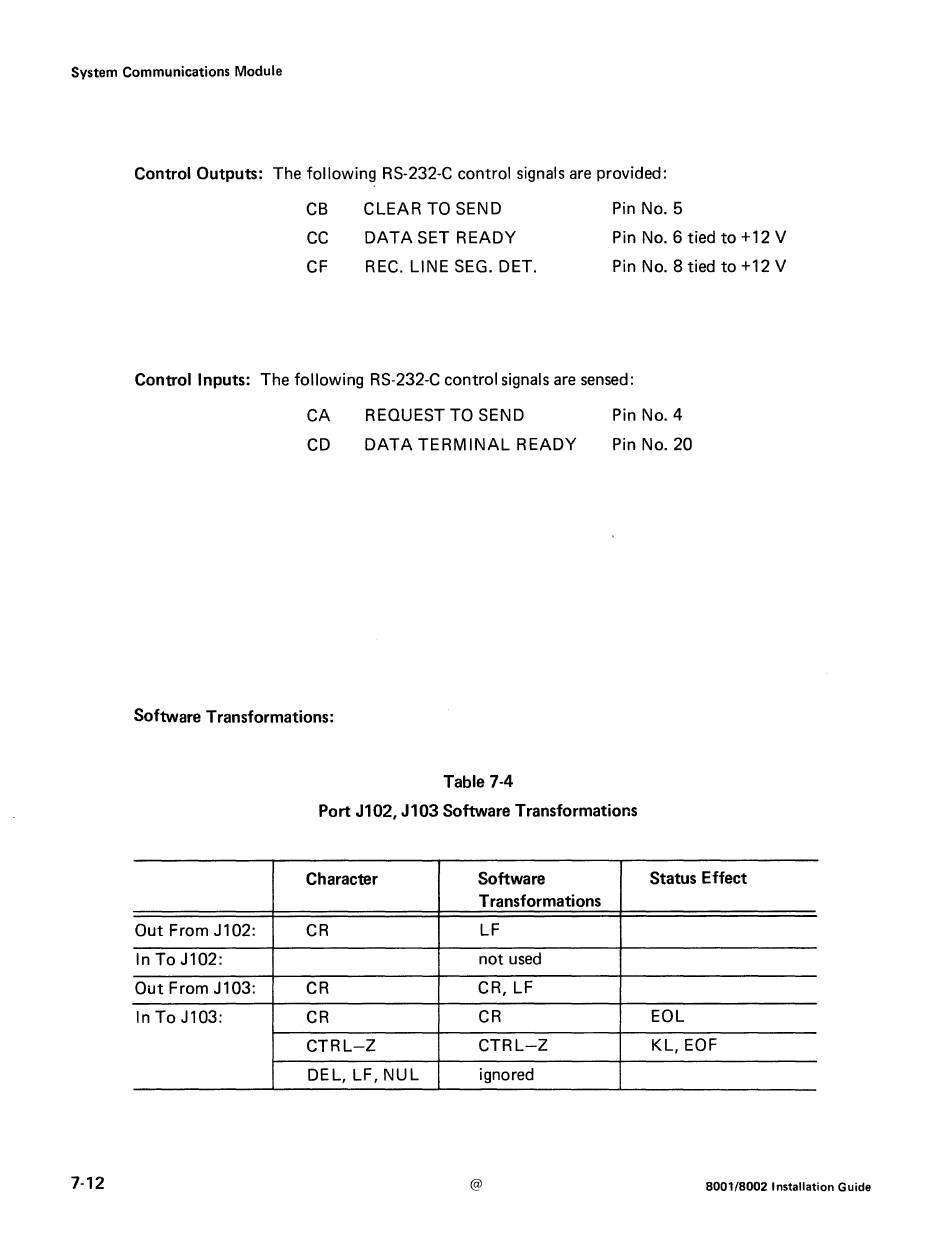

System Communications Module
7-12
Control Outputs: The following RS-232-C control signals are provided:
CB
cc
CF
CLEAR TO SEND
DATA SET READY
REC. LINE SEG. DET.
Pin No. 5
Pin No. 6 tied to +12 V
Pin No. 8 tied to +12 V
Control Inputs: The following RS-232-C control signals are sensed:
CA
CD
Software Transformations:
REQUEST TO SEND
DATA TERMINAL READY
Table 7-4
Pin No. 4
Pin No. 20
Port J102, J103 Software Transformations
Character Software
Status Effect
Transformations
Out From J 102: CR LF
In To J102: not used
Out From J103: CR CR, LF
In To J103: CR CR
EOL
CTRL-Z
CTRL-Z KL, EOF
DEL, LF, NUL
ignored
@
