Keithley Instruments
28775 Aurora Road
Cleveland, Ohio 44139
1-800-935-5595
http://www.tek.com/keithley

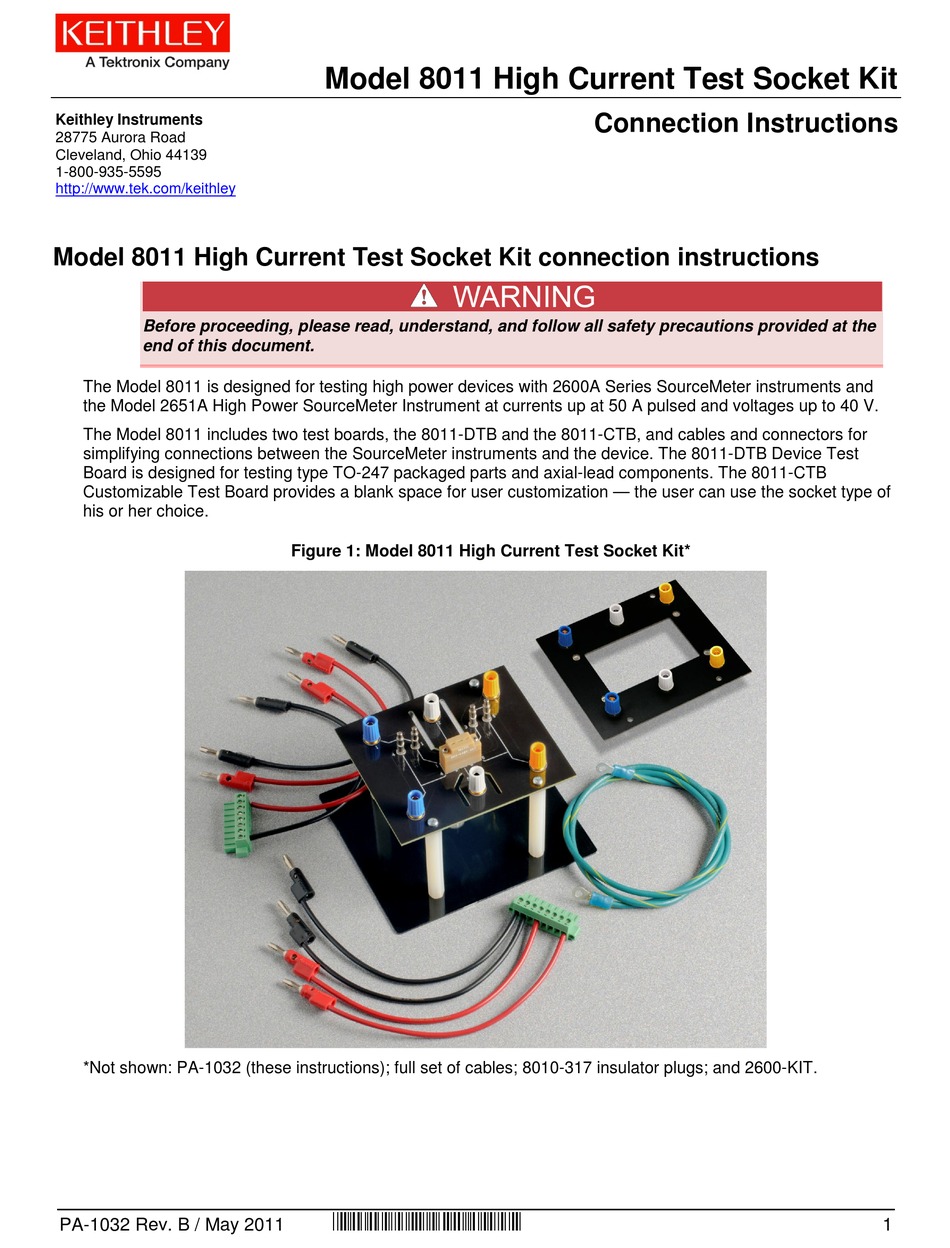

Model 8011 High Current Test Socket Kit connection instructions
Before proceeding, please read, understand, and follow all safety precautions provided at the
end of this document.
The Model 8011 is designed for testing high power devices with 2600A Series SourceMeter instruments and
the Model 2651A High Power SourceMeter Instrument at currents up at 50 A pulsed and voltages up to 40 V.
The Model 8011 includes two test boards, the 8011-DTB and the 8011-CTB, and cables and connectors for
simplifying connections between the SourceMeter instruments and the device. The 8011-DTB Device Test
Board is designed for testing type TO-247 packaged parts and axial-lead components. The 8011-CTB
Customizable Test Board provides a blank space for user customization — the user can use the socket type of
his or her choice.
*Not shown: PA-1032 (these instructions); full set of cables; 8010-317 insulator plugs; and 2600-KIT.
PA-1032 Rev. B / May 2011
Model 8011 High Current Test Socket Kit
Figure 1: Model 8011 High Current Test Socket Kit*
*PPA-1032B*
Connection Instructions
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KEITHLEY 8011 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tektronix KEITHLEY 8011

Summary of Contents for Tektronix KEITHLEY 8011

  • Page 1 Model 8011 High Current Test Socket Kit Connection Instructions Keithley Instruments 28775 Aurora Road Cleveland, Ohio 44139 1-800-935-5595 http://www.tek.com/keithley Model 8011 High Current Test Socket Kit connection instructions Before proceeding, please read, understand, and follow all safety precautions provided at the end of this document.

  • Page 2: Power And Environmental Specifications

    Model 8011 High Current Test Socket Kit Power and environmental specifications For indoor use only. Specification Value Voltage limit 40 V DC maximum Current limit 15 A DC maximum Unpack and inspect the High Current Test Socket Kit To unpack and inspect the: 1.
  • Page 3 Model 8011 High Current Test Socket Kit Assembly instructions 1. Select the TO-247 Device Test Board (8010-120) or Customizable Test Board (8010-130), as appropriate for your application. 2. Connect one end of the ground cable to the ground screw at the center of the mounting plate. 3.

  • Page 4: Mounting Instructions

    Model 8011 High Current Test Socket Kit Mounting instructions The 8011-301 mounting plate should be used to secure your test board (8010-120 or 8010-130). It can also be used to secure the assembled Model 8011 to a work surface using the mounting holes shown in the next figure. Figure 3: Mounting plate dimensions PA-1032 Rev.
  • Page 5 Model 8011 High Current Test Socket Kit You can attach your own test board or testing fixture to the 8010-130 Customizable Test Board using the #6-32 screw mounts provided. Figure 4: 8010-130 Customizable Test Board dimensions The High Current Test Socket Kit provides several types of connections to allow you to make connections to meet the needs of your application.
  • Page 6 Model 8011 High Current Test Socket Kit Tools needed • Small flat-head screwdriver Instructions 1. Remove power from the Model 2651A. 2. Make connections as shown in the next t and figure. 3. Install the 8010-317 insulator plug into the test socket. 4.
  • Page 7 Model 8011 High Current Test Socket Kit Two-terminal DUT using a Model 2651A set to remote sense Tools needed • Small flat-head screwdriver Instructions 1. Remove power from the Model 2651A. 2. Make connections as shown in the next table and figure. 3.
  • Page 8 Model 8011 High Current Test Socket Kit Do not plug the CA-560-0 and CA-560-2 cables directly into the CA-552-1. Always use the CS-1626-2, as shown in the figure. Plugging the cables directly into the CA-552-1 can permanently damage the connector. Figure 6: Connections for two-terminal device test (remote sense) Three-terminal DUT using a Model 2651A and a single or dual channel SourceMeter instrument...
  • Page 9 Model 8011 High Current Test Socket Kit Tools and equipment needed • Small flat-head screwdriver • Cable created using the 2600-KIT screw terminal connector kits (included with the Model 8011); the cable must use wire that can support 3 A and 200 V Instructions 1.
  • Page 10 Model 8011 High Current Test Socket Kit Do not plug the CA-560-0 and CA-560-2 cables directly into the CA-552-1. Always use the CS-1626-2, as shown in the figure. Plugging the cables directly into the CA-552-1 can permanently damage the connector. Figure 7: Connections for three-terminal device test Three-terminal DUT using a Model 2651A and a low current SourceMeter instrument...
  • Page 11 Model 8011 High Current Test Socket Kit Tools needed • Small flat-head screwdriver This use case calls for three 2600-ALG-2 cables. Normally, the Model 2635A ships with one of these cables and the Model 2636A ships with two. For additional cables, order Keithley Instruments catalog number 2600-ALG-2.
  • Page 12 Model 8011 High Current Test Socket Kit Connections for three-terminal device test Cable end Cable Cable end Model 2651A rear panel CA-552-1 (supplied with the Model 2651A) Open Model 2651A rear panel CA-557-1 (supplied with the Model 2651A) CS-1629-8 Model 2635A or 2600-ALG-2 Red alligator clip to 8010-120 blue Model 2636A rear panel...

  • Page 13: Contact Information

    Model 8011 High Current Test Socket Kit Alligator clips are connected the screw posts on the underside of the board, as shown here. Contact information If you have any questions after you review the information in this documentation, please contact your local Keithley Instruments office, sales partner, or distributor.
  • Page 14 Model 8011 High Current Test Socket Kit The following safety precautions should be observed before using this product and any associated instrumentation. Although some instruments and accessories would normally be used with nonhazardous voltages, there are situations where hazardous conditions may be present. This product is intended for use by qualified personnel who recognize shock hazards and are familiar with the safety precautions required to avoid possible injury.
  • Page 15 Model 8011 High Current Test Socket Kit When fuses are used in a product, replace with the same type and rating for continued protection against fire hazard. Chassis connections must only be used as shield connections for measuring circuits, NOT as protective earth (safety ground) connections.
