Keithley Instruments, Inc.
28775 Aurora Road
Cleveland, Ohio 44139
1-800-935-5595
http://www.keithley.com
Description
The Model 2450-CAL-KIT is a measurement fixture that provides a stable load connection to and from all
recommended 2450 calibration equipment. This fixture is required for accurate calibration over all ranges and
polarities.
Refer to the Model 2450 Interactive SourceMeter® Instrument Calibration Manual for full usage instructions. The
Calibration Manual (part number: 2450-905-01) can be found on the
(http://www.keithley.com/support).
071337300 / July 2014

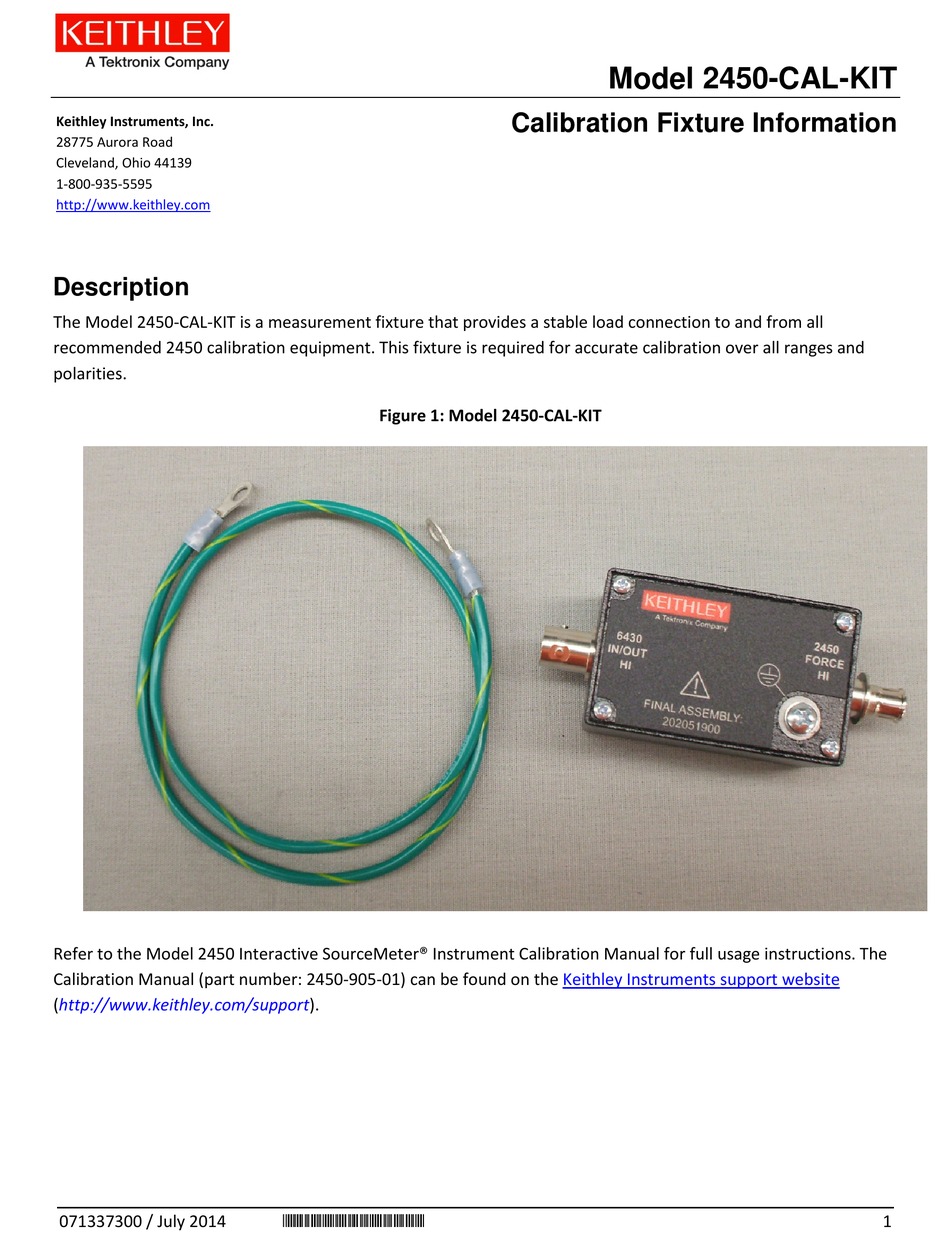

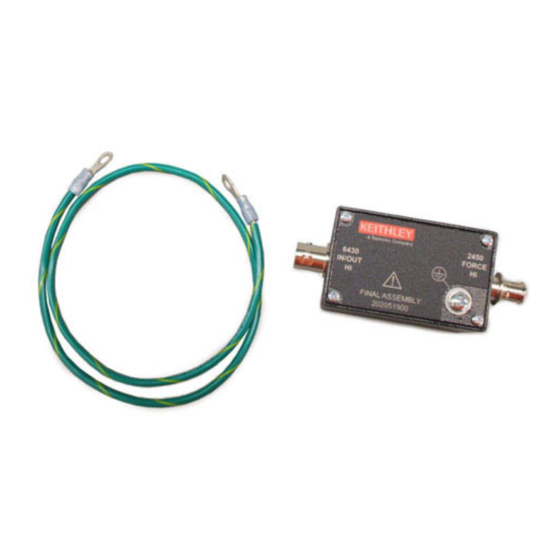

Figure 1: Model 2450-CAL-KIT
*P071337300*
Model 2450-CAL-KIT
Calibration Fixture Information
Keithley Instruments support website
1
