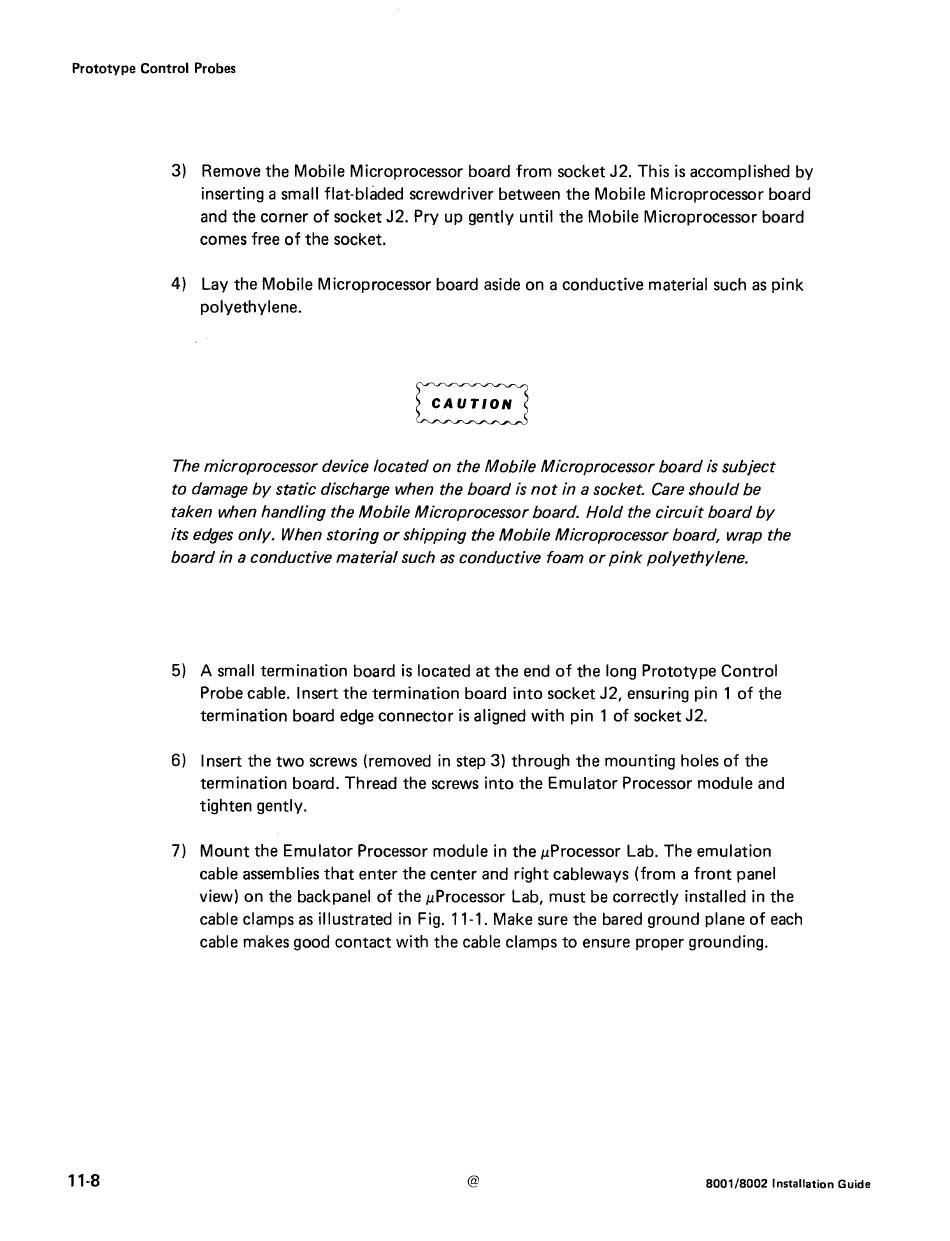

3) Remove the Mobile Microprocessor board from socket J2. This is accomplished by
inserting a small flat-bladed screwdriver between the Mobile Microprocessor board
and the corner of socket J2. Pry up gently until the Mobile Microprocessor board
comes free of the socket.
4) Lay the Mobile Microprocessor board aside on a conductive material such as pink
polyethylene.
The microprocessor device located on the Mobile Microprocessor board is subject
to damage by static discharge when the board is not in a socket. Care should be
taken when handling the Mobile Microprocessor board. Hold the circuit board by
its edges only. When storing or shipping the Mobile Microprocessor board, wrap the
board in a conductive material such as conductive foam or pink polyethylene.
5) A small termination board is located at the end of the long Prototype Control
Probe cable. Insert the termination board into socket J2, ensuring pin 1 of the
termination board edge connector is aligned with pin 1 of socket J2.
6) Insert the two screws (removed in step 3) through the mounting holes of the
termination board. Thread the screws into the Emulator Processor module and
tighten gently.
7) Mount the Emulator Processor module in the µProcessor Lab. The emulation
cable assemblies that enter the center and right cableways (from a front panel
view) on the backpanel of the µProcessor Lab, must be correctly installed in the
cable clamps as illustrated in Fig. 11-1. Make sure the bared ground plane of each
cable makes good contact with the cable clamps to ensure proper grounding.
@
