Real Time Prototype Analyzer
8-8
JUMPERS/SWITCHES

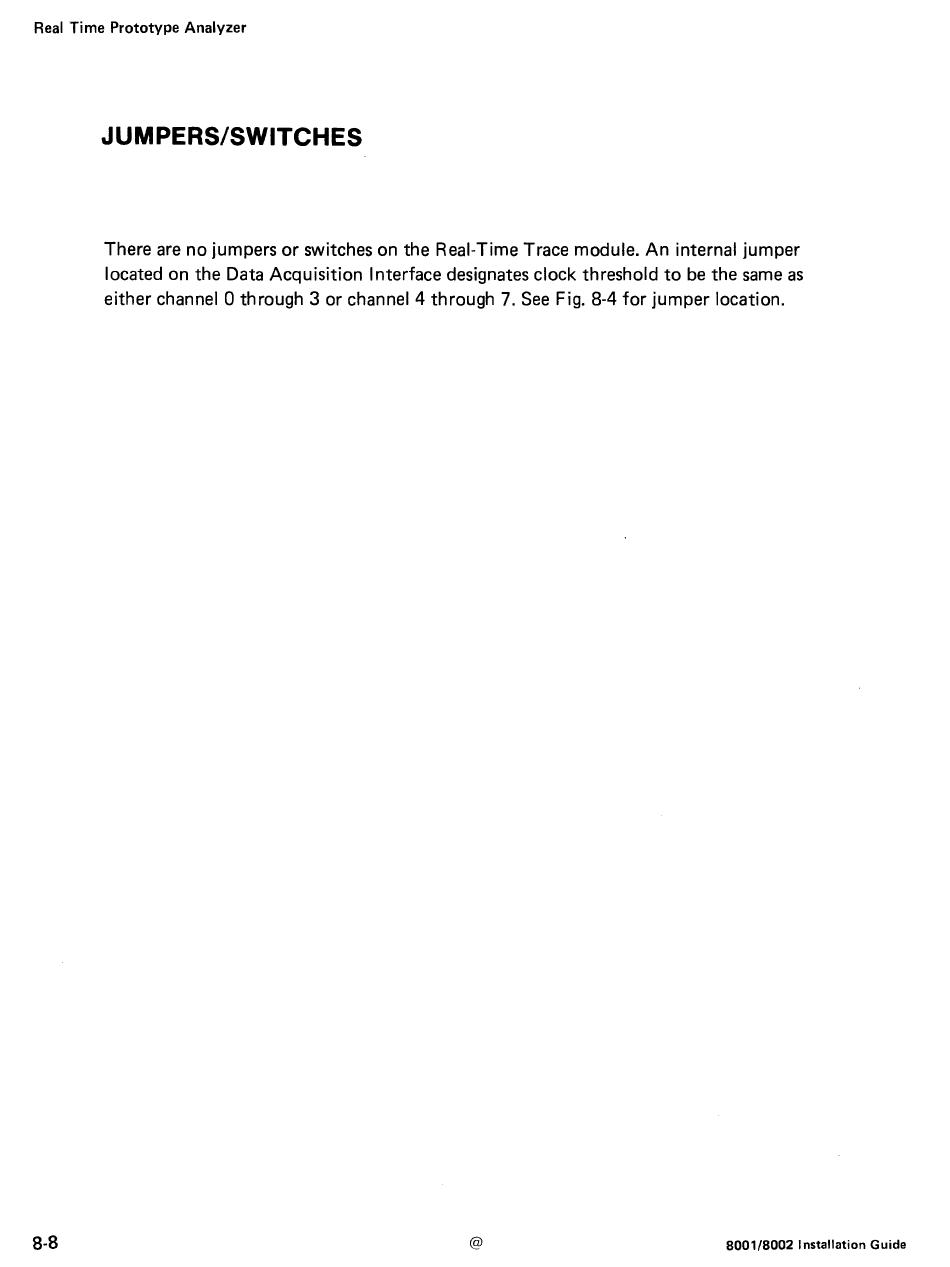

There are no jumpers or switches on the Real-Time Trace module. An internal jumper
located on the Data Acquisition Interface designates clock threshold to be the same as
either channel 0 through 3 or channel 4 through 7. See Fig. 8-4 for jumper location.
@
8001/8002 Installation Guide
