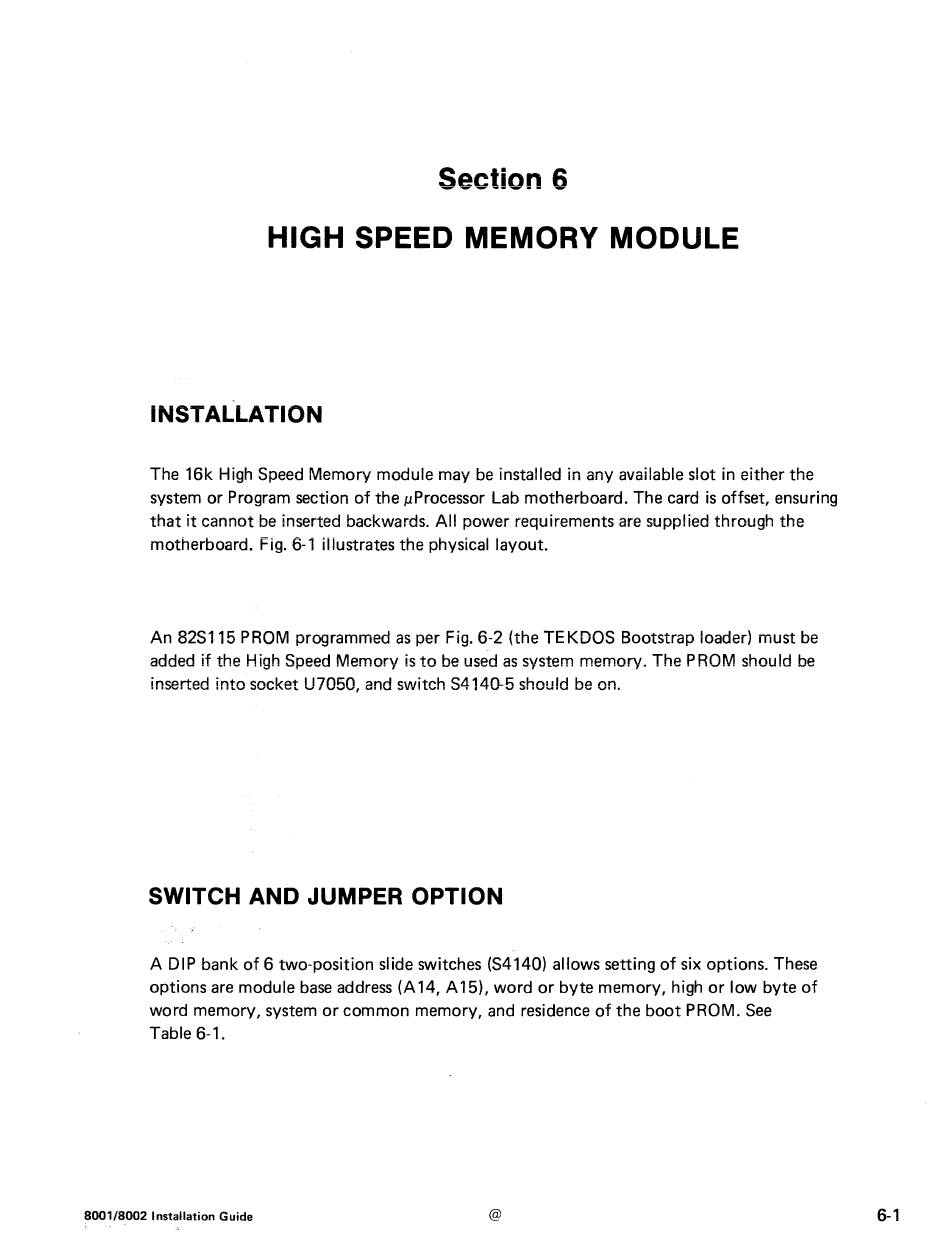

Section 6
HIGH SPEED MEMORY MODULE
INSTALLATION
The 16k High Speed Memory module may be installed in any available slot in either the
system or Program section of the µProcessor Lab motherboard. The card is offset, ensuring
that it cannot be inserted backwards. All power requirements are supplied through the
motherboard. Fig. 6-1 illustrates the physical layout.
An 82S115 PROM programmed as per Fig. 6-2 (the TE KOOS Bootstrap loader) must be
added if the High Speed Memory is to be used as system memory. The PROM should be
inserted into socket U7050, and switch S4140-5 should be on.
SWITCH AND JUMPER OPTION
A DIP bank of 6 two-position slide switches (S4140) allows setting of six options. These
options are module base address (A 14, A 15), word or byte memory, high or low byte of
word memory, system or common memory, and residence of the boot PROM. See
Table 6-1.
8001/8002 Installation Guide
@ 6-1
