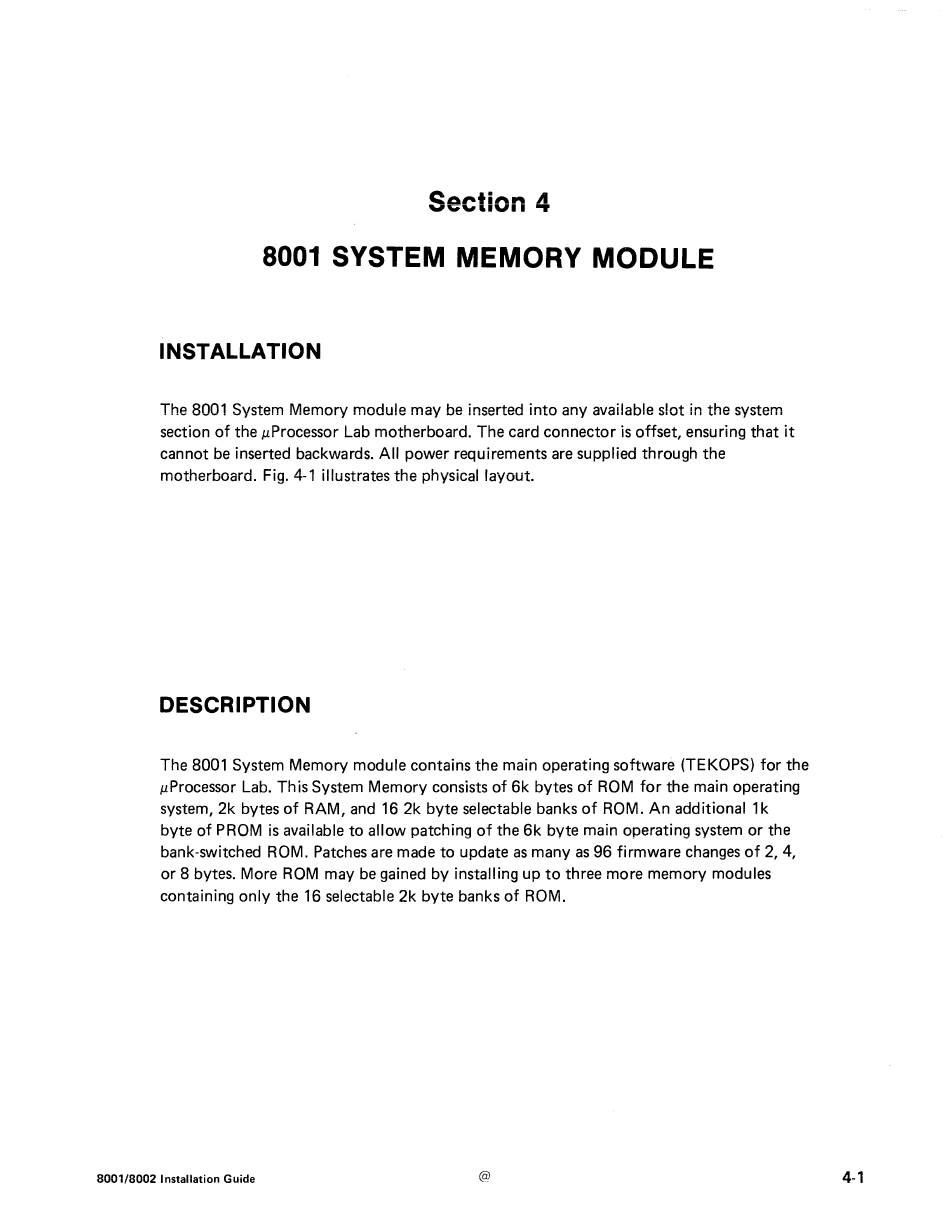

8001 SYSTEM MEMORY MODULE
INSTALLATION
The 8001 System Memory module may be inserted into any available slot in the system
section of the µProcessor Lab motherboard. The card connector is offset, ensuring that it
cannot be inserted backwards. All power requirements are supplied through the
motherboard. Fig. 4-1 illustrates the physical layout.
DESCRIPTION
The 8001 System Memory module contains the main operating software (TE KOPS) for the
µProcessor Lab. This System Memory consists of 6k bytes of ROM for the main operating
system, 2k bytes of RAM, and 16 2k byte selectable banks of ROM. An additional 1 k
byte of PROM is available to allow patching of the 6k byte main operating system or the
bank-switched ROM. Patches are made to update as many as 96 firmware changes of 2, 4,
or 8 bytes. More ROM may be gained by installing up to three more memory modules
containing only the 16 selectable 2k byte banks of ROM.
8001/8002 Installation Guide
@
4-1
