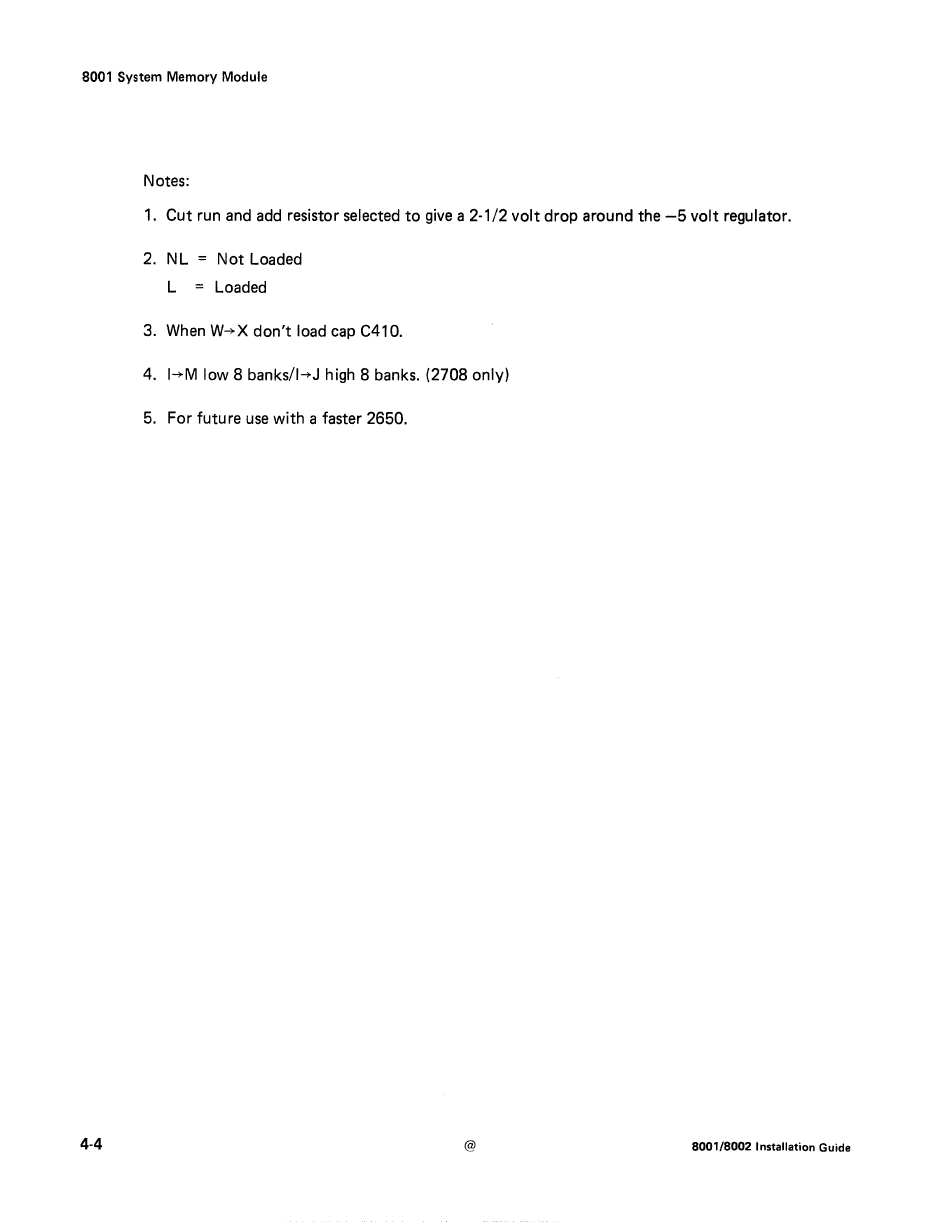

Tektronix 8001A Installation Manual page 38

8001 System Memory Module
Notes:
1. Cut run and add resistor selected to give a 2-1 /2 volt drop around the -5 volt regulator.
4-4
2. NL = Not Loaded
L = Loaded
3. When W-+ X don't load cap C410.
4. 1-+M low 8 banks/1-+J high 8 banks. (2708 only)
5. For future use with a faster 2650.
@
8001/8002 Installation Guide
