Prototype Control Probes
II
Termination
Board
INSTALLATION
2393-17

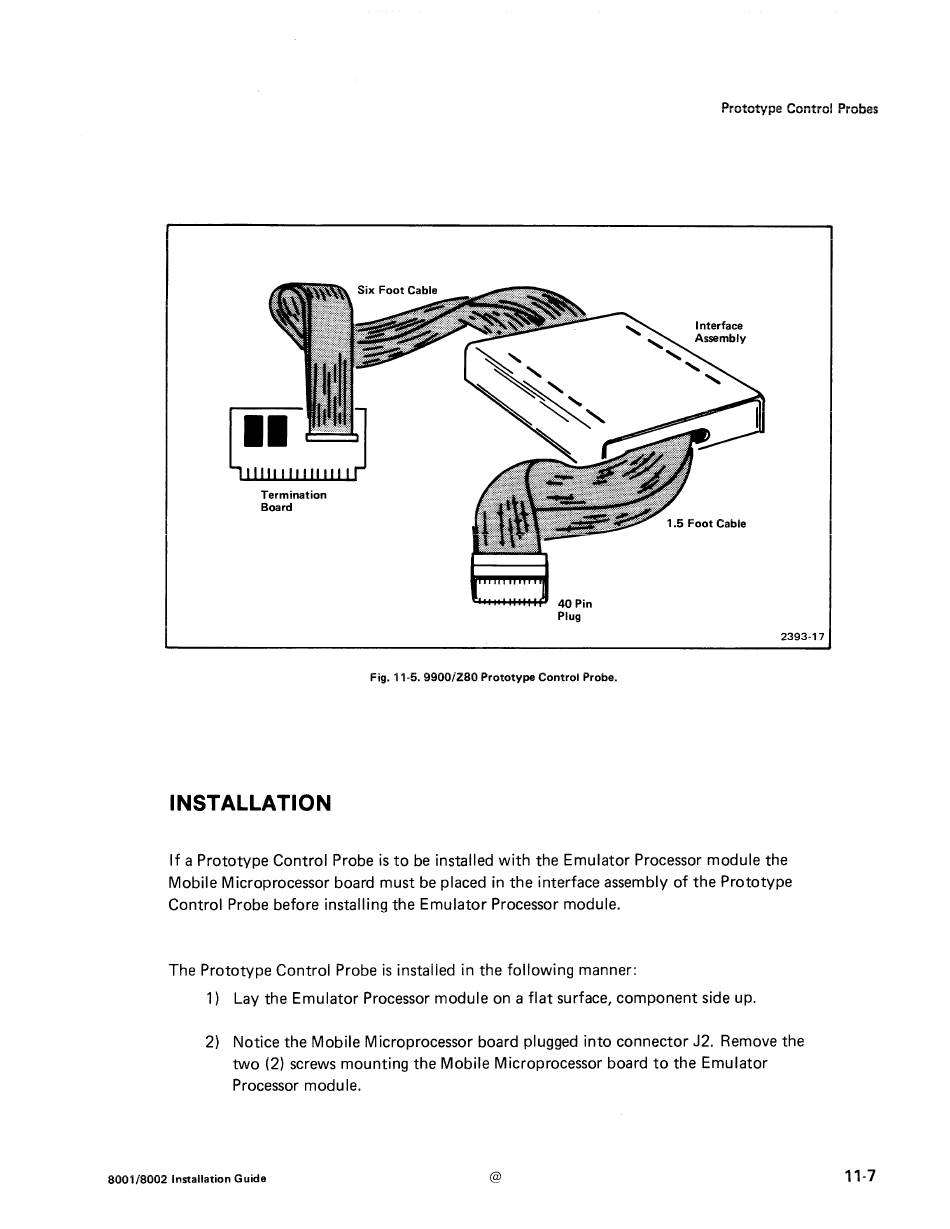

Fig. 11-5. 9900iZ80 Prototype Controi Probe.
If a Prototype Control Probe is to be installed with the Emulator Processor module the
Mobile Microprocessor board must be placed in the interface assembly of the Prototype
Control Probe before installing the Emulator Processor module.
The Prototype Control Probe is instailed in the following manner:
1) Lay the Emulator Processor module on a flat surface, component side up.
2) Notice the Mobile Microprocessor board plugged into connector J2. Remove the
two (2) screws mounting the Mobile Microprocessor board to the Emulator
Processor module.
8001i8002 Installation Guide
@
11=7
