System Communications Module

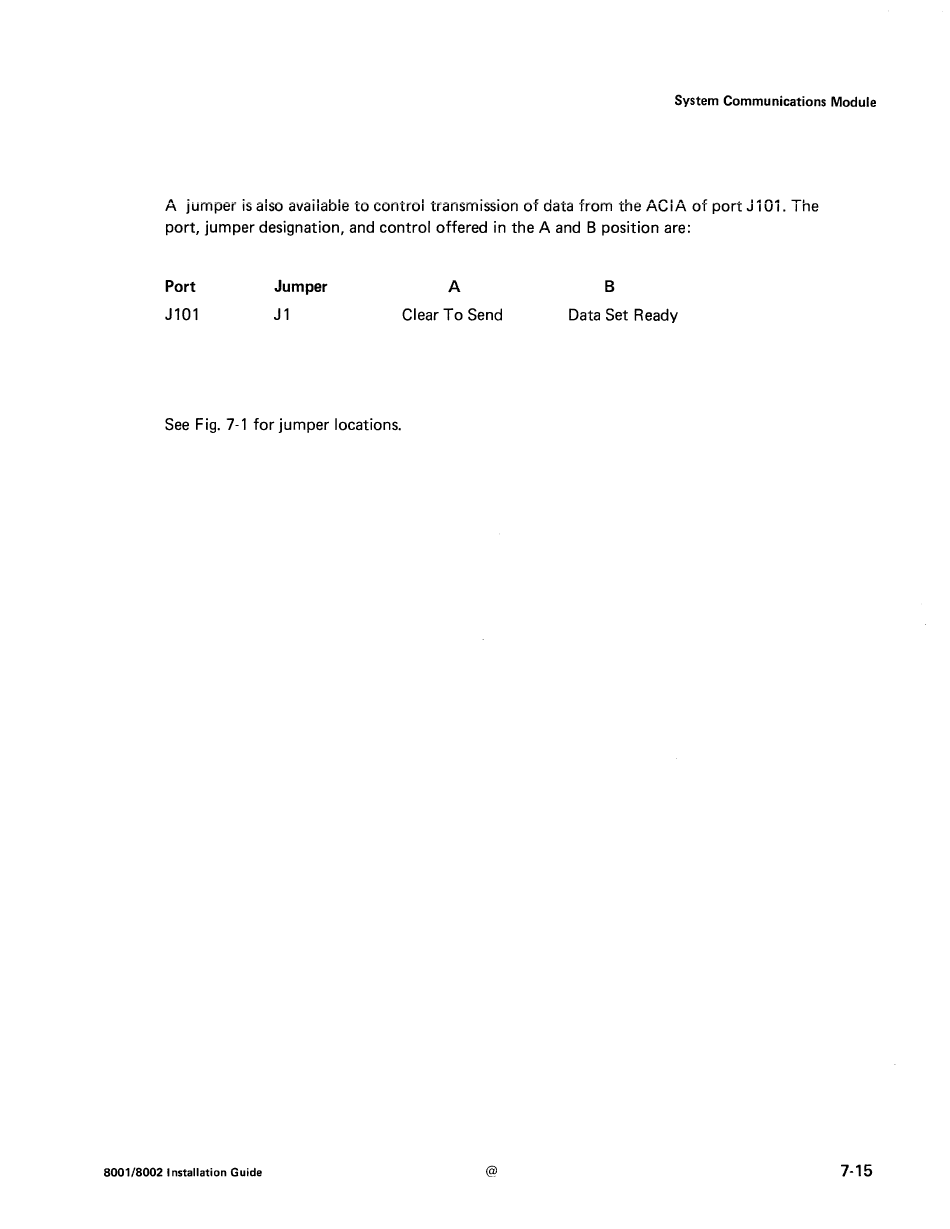

A jumper is also available to control transmission of data from the ACiA of port
j
i Oi.
The
port, jumper designation, and control offered in the A and B position are:
Port
J101
Jumper
J1
See Fig. 7-1 for jumper locations.
8001/8002 Installation Guide
A
B
Clear To Send
Data Set Ready
@
7-15
