Ports page
The Ports selection on the Networking Settings page (see
a read-only pane that shows the port usage parameters of the encoder (see figure 60).
The HTTPS and RTP Start parameters can be edited by clicking the EDIT button (
feature gives the flexibility to use specific ports of your choosing, if the default ports are in
use. An editable version of the selection opens (see figure 61).
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

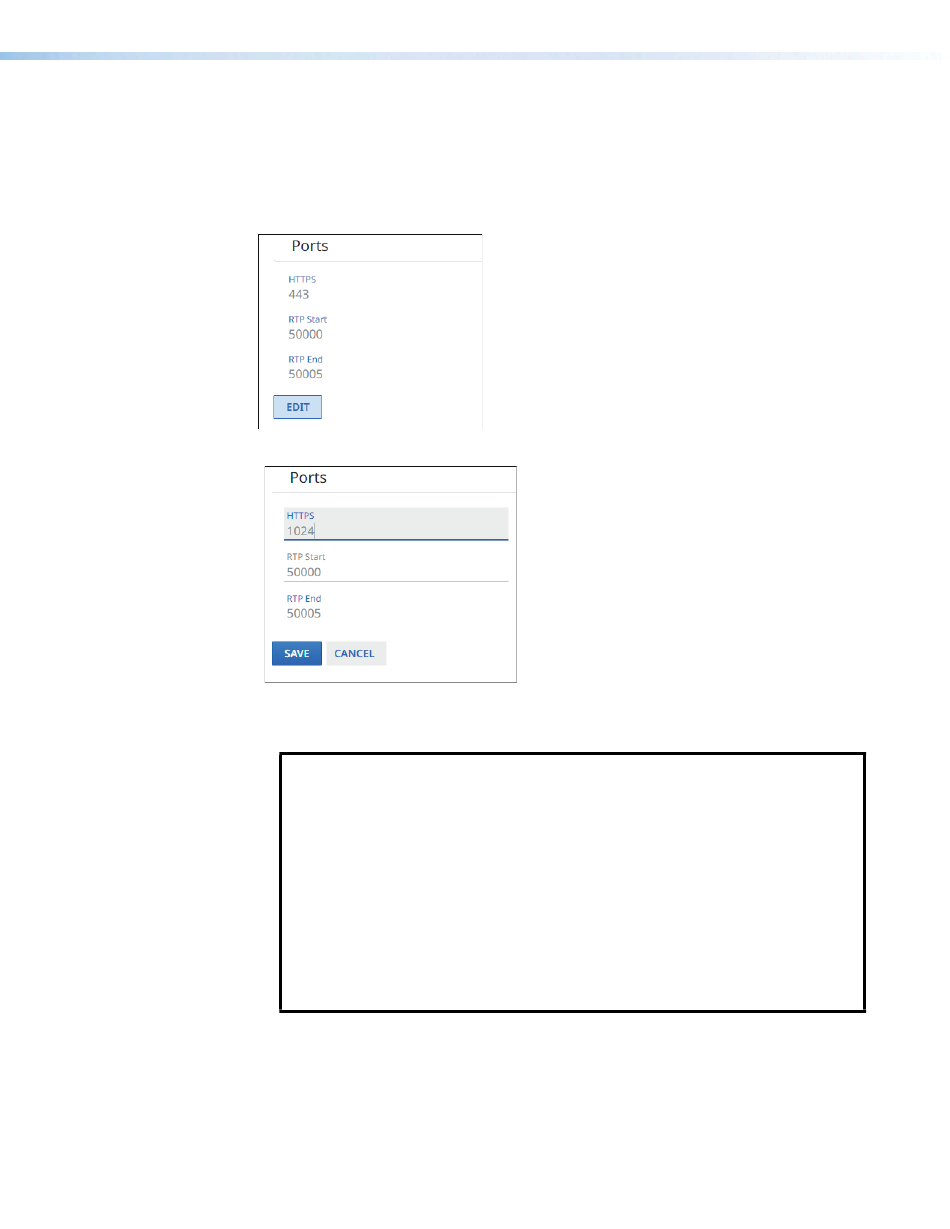

Figure 60. Ports Selection
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
Figure 61. Editable Ports Selection
HTTPS and RTP Start — Click in these fields and type in valid values for your encoder.
1
NOTES:
• Valid HTTPS values:
• = Disabled
0
• = Default
443
• -
1024 65535
on the encoder.
• Valid RTP Start values:
• - Disabled
0
• -
1024 65529
• See the NAV Series Pro AV Ports and Licenses Guide, available at
www.extron.com, for more information on ports.
SAVE and CANCEL buttons — Click SAVE to take Port changes or CANCEL to
2
abandon them. Clicking either button closes the editable pane.
= Other available options so long as they are not overlapping
= Free use
