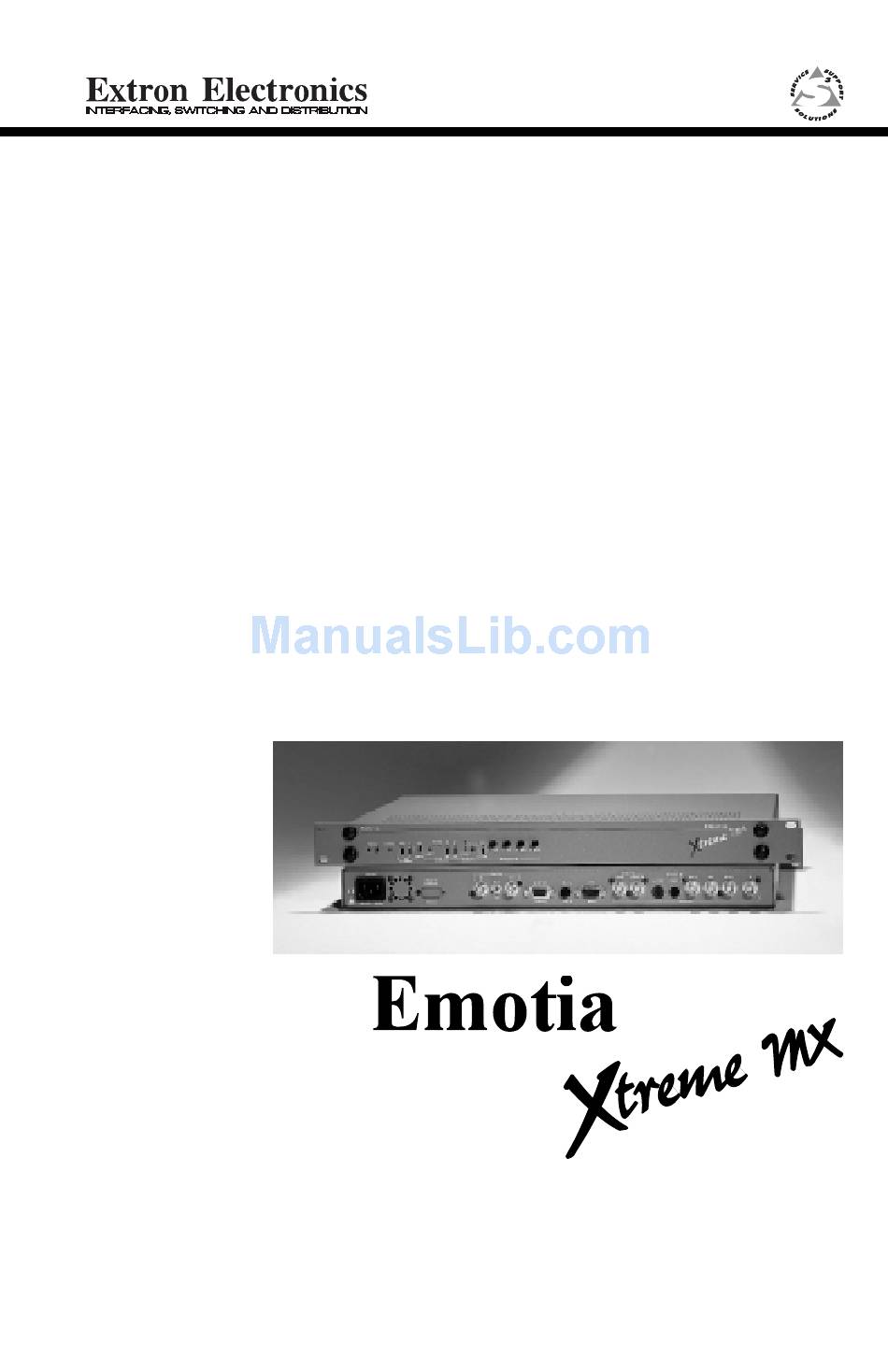

- Page 1 User's Manual...
-
Page 3: Table Of Contents
Contents Introduction to the Emotia Xtreme MX ..........Chapter 1 Introduction ..................1-1 About this Manual ................. 1-1 Features ..................1-2 Specifications ................1-3 Installation and Operation ..............Chapter 2 Installing the Emotia Xtreme MX ............2-1 Rack Mounting ................2-1 Cabling .................. - Page 4 _ A Note, a Hint, or a Tip that may be helpful. __ Possible Electrostatic Discharge (ESD) damage could result from touching electronic components. __ Additional information may be referenced in another section, or in another document. Extron • Emotia Xtreme MX • User’s Manual...
-
Page 5: Introduction To The Emotia Xtreme Mx
Extron’s Emotia Xtreme MX User’s Manual Chapter One Introduction to the Emotia Xtreme MX Introduction Features Specifications Extron • Emotia Xtreme MX • User’s Manual... -
Page 6: Introduction
21 preset input memory blocks. With digital signal processing, the Emotia Xtreme MX also offers a full spectrum of 16 million colors. Its multiscanning capabilities provide automatic recognition and auto-lock of scan rates between 29 to 92 kHz. -
Page 7: Features
29 kHz to 92 kHz and resolutions from 320 x 200 up to 1600 x 1280. • Outputs — The Emotia Xtreme MX outputs NTSC or PAL video, Y/C (S-Video), Component Video and RGBS to fulfill any application and offer compatibility with virtually any output source. -
Page 8: Specifications
5.0 kg Power Supply ......100-240 VAC, 50/60 Hz Internal switch mode MTBF .......... 30,000 Hours Warranty ........Two years, parts &labor * See Appendix for complete list of supplied adapters. Page 1-3 Extron • Emotia Xtreme MX • User’s Manual... -
Page 9: Installation And Operation
Extron’s Emotia Xtreme MX User’s Manual Chapter Two Installation and Operation Rack Mounting Cabling Front Panel Rear Panel Extron • Emotia Xtreme MX • User’s Manual... -
Page 10: Installing The Emotia Xtreme Mx
“Cabling” below. Rack Mounting To rack mount the Emotia Xtreme MX, mount it as shown below using 4-user supplied screws to secure the front panel to the rack. Upon completion of the rack mounting procedure, go to “Cabling”... - Page 11 3. Use the computer monitor's cable to connect to the Emotia Xtreme MX Monitor Output connector or adapter cable. 4. Connect the cable from the desired Emotia Xtreme MX output connector (see note below) to the input connector of the output device.
- Page 12 Connect the VGA input cable (PN# 26-112-15) from the Mac/VGA Adapter to the CPU Input on the Emotia Xtreme MX. Connect the Mac monitor cable to the adapter and connect the adapter to the Monitor Output on the Emotia Xtreme MX.
-
Page 13: Front Panel
GENLOCK controls. synchronized video. An Emotia Xtreme MX using a Burst generator as the source for a Genlock signal is shown in the diagram below. The GENLOCK signal passes through the Xtreme MX GENLOCK OUT BNC connector and on to another device (Video Camera). - Page 14 Emotia Xtreme MX Front Panel A. Freeze Button and LED – Press the Freeze Button once to freeze the display on a frame, press it again to release the display. The LED is ON in Freeze Frame mode. B. Power On LED – This LED is ON if power is applied to the unit.
- Page 15 Emotia Xtreme MX Rear Panel H. AC Power Connector – Standard IEC type. 100-240 VAC, 50/60 Hz, Internal switch mode J. GENLOCK IN Connector – BNC connector for Genlock input. K. GENLOCK HI-Z/75 – Pushbutton selects termination, If there is no other Genlock termination, set the switch to 75 .
- Page 16 Installation and Operation NOTES: Page 2-7...
-
Page 17: Other Reference Material
Extron’s Emotia Xtreme MX User’s Manual Appendix A Other Reference Material Accessories and Part Numbers Limited Warranty... -
Page 18: Accessories/Part Numbers
Mac HV/VGA monitor cable, 1’ (0.3 m) ..........26-340-02 S-Video cable, 6’ (1.8 m) ..............26-316-02 RCA cable, 6’ (1.8 m) ................26-345-01 VGA 6’ HR .................... 26-112-15 BNC/M-RCA/F adapter ................ 10-264-01 Page A-1 Extron • Emotia Xtreme MX • User’s Manual... - Page 19 1230 South Lewis Street Beeldschermweg 6C 41B Kreta Ayer Road Anaheim, CA 92805 3821 AH Amersfoort Singapore 089003 (714) 491-1500 FAX (714) 491-1517 +31-33-453-4040 FAX +31-33-453-4050 +65-226-0015 FAX +65-226-0019 U.S.A. The Netherlands Singapore Extron • Emotia Xtreme MX • User’s Manual...
