USB Devices pane
The USB Devices pane (see

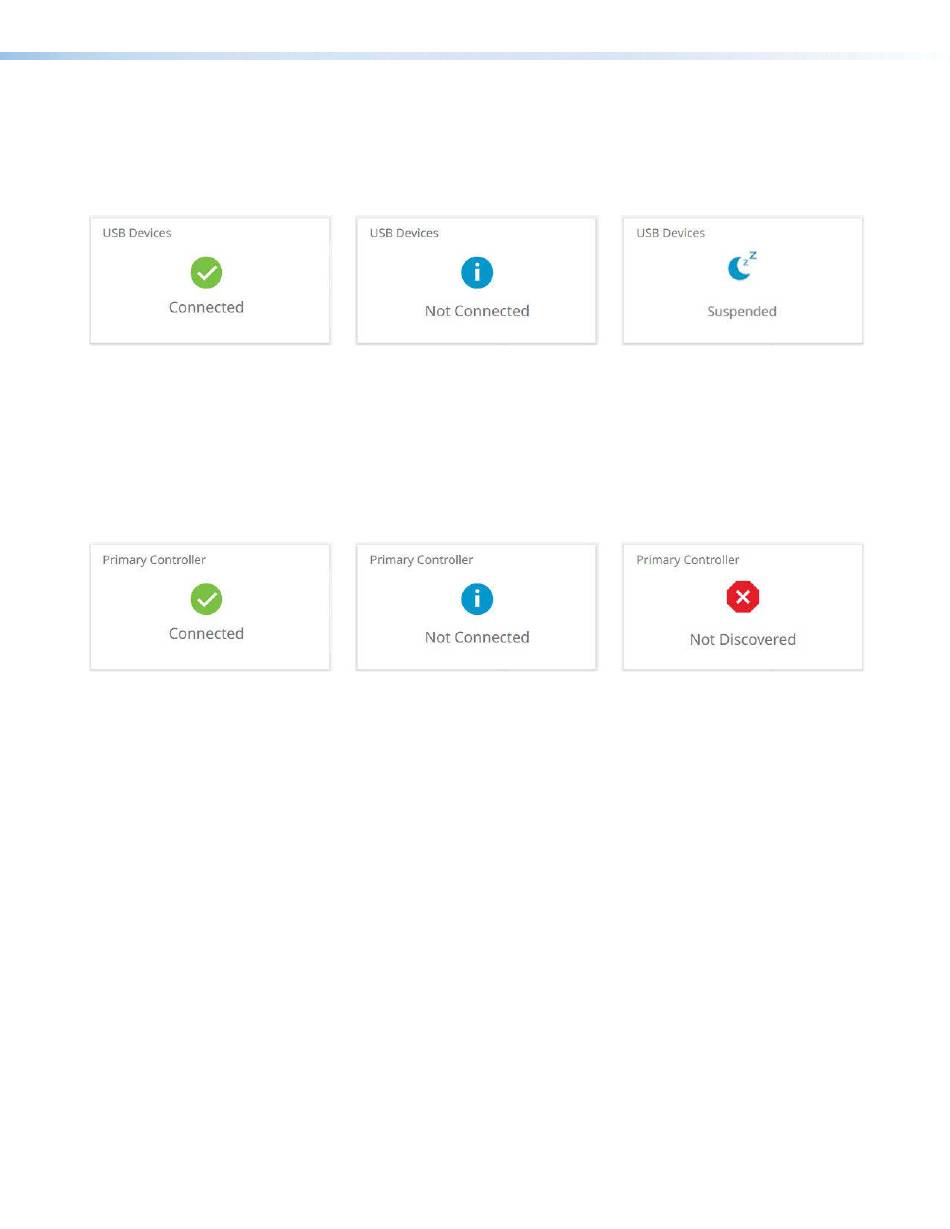

USB devices are connected and NAV USB extension is enabled. Figure 42 shows the
normal indication and if no USB devices are connected or the USB Host has forced the
USB bus into a suspend state.
USB Devices Normal Indication
Figure 42.
Primary Controller pane
The Primary Controller pane (see
processor, such as an IPCP Pro xi Control Processor, is paired with the NAV device, and
the IP address of the device if present. Figure 43 shows the normal indication and if no
primary controller is present on the network available or the endpoint is not connected to
any controller.
Primary Controller Normal Indication
Figure 43.
figure 39,
7
USB Devices Not Connected
USB Devices Pane Indications
figure 39,
Primary Controller Not Connected
Primary Controller Pane Indications
on page 43) shows whether or not one or more
USB Devices Suspended Indication
) shows whether or not an Extron control
8
Primary Controller Not Discovered
