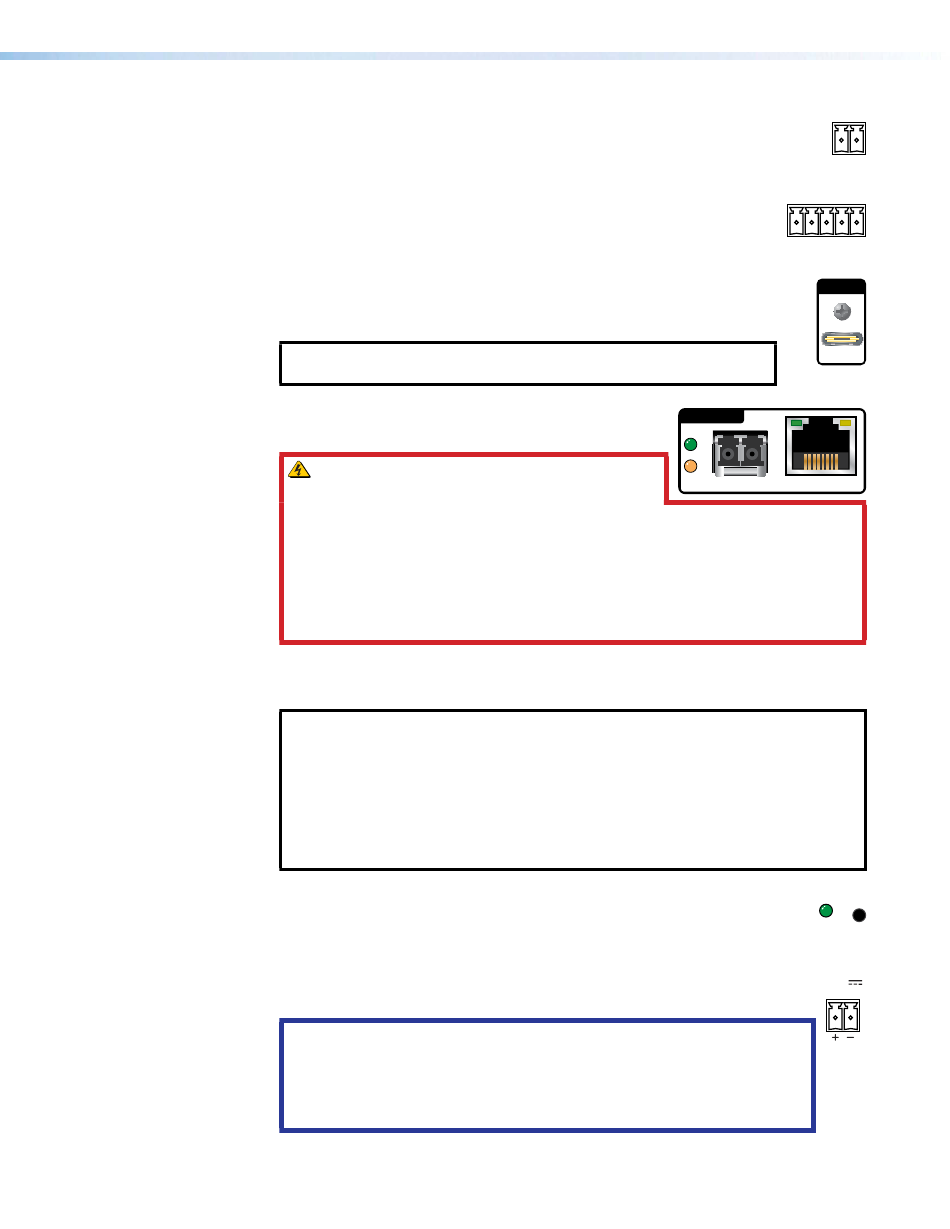

D CONTROL Contact Closure port (see
Extron Show Me cable to the port to allow an Extron Teamwork 400 user to
request to take over the presentation from this encoder (see the Teamwork 400
User Guide, available at www.extron.com).
E CONTROL RS-232/IR port — Connect a serial RS-232 signal, a
modulated IR signal, or both to this 3.5 mm, 5-pole captive screw
connector for bidirectional RS-232 and IR communication (see
connector wiring on page 10 to wire the connector).
F USB 2.0 port — Connect a USB Type-C
device (see LockIt Lacing Brackets
connector to the encoder).
NOTE: This connector is limited to supplying 500 mA in USB device
mode.
G NAV 1G port — Connect to a LAN on which one or
more decoders also reside for streaming control.
WARNING: This unit outputs continuous invisible
light (Class 1 rated), which may be harmful to the
eyes; use with caution. Plug the attached dust cap into the optical transceiver
when the fiber optic cable is unplugged.
AVERTISSEMENT : Le grilles de commutation de la gamme FOX cartes d'entrée/
sortie fibre optique émet une lumière invisible en continu (équipement de classe
1) qui peut être dangereux pour les yeux, à utiliser avec précaution Branchez la
protection contre la poussière dans l'ensemble émetteur/récepteur lorsque le
câble fibre optique est débranché.
H
Extension port — If desired, connect another networked device to this port. The port
acts as a networked switch to the NAV 1G port (
NOTES:
• The NAV 1G (fiber) port (
• Act (amber) LED — Indicates transmission of data packets on the
connector. This LED blinks as the encoder communicates.
• Link (green) LED — Indicates that the encoder is properly connected to a
LAN. This LED lights steadily.
• TP cable termination
See
I RESET button and LED — The RESET button initiates three levels of encoder
reset. For the different reset levels, press and hold the button while the encoder
is running or while you power up the encoder (see
page 15 for details).
J Power connector — Plug the included external 12 VDC power supply into
this 2-pole connector to power the encoder locally.
ATTENTION:
• Do not connect power to the encoder until you have read the
CAUTION and
• Ne connectez pas l'alimentation à l'encodeur avant d'avoir lu les
rubriques « ATTENTION
figure 2
on page 6) — Connect an
cable from a USB host or a USB
®
on page 9 to securely fasten the USB
G
G
) and EXT (RJ-45) port (
on page 10 to properly wire the EXT connector.
ATTENTION notices on page 11.
» des page 11.
