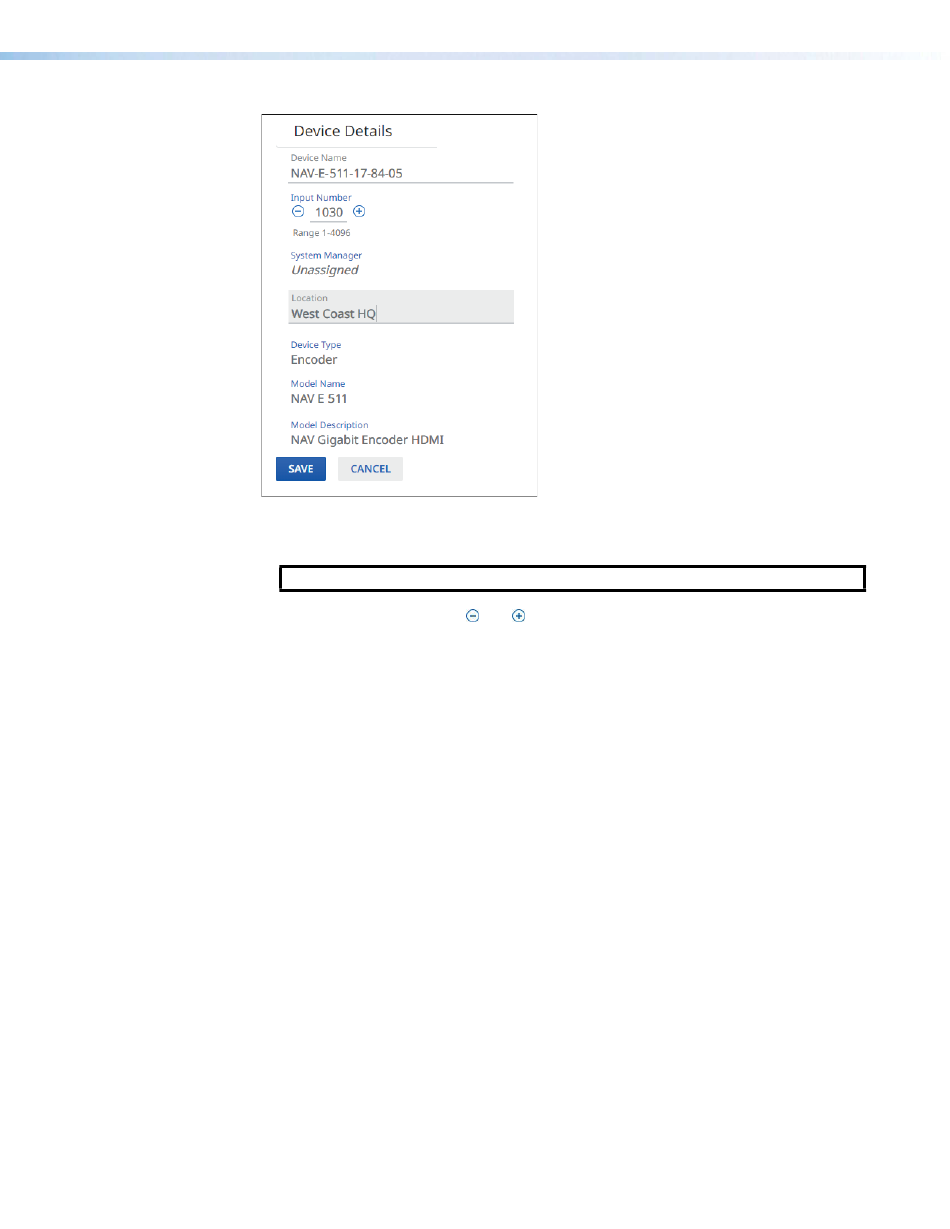

Figure 48. Editable Device Details Pane
Device Name — Click in this field and type in a device name of your choice.
1
NOTE: The Device Name is also the "hostname."
Input Number — Click the
2
the factory default input number, which is automatically generated in the range from 1 to
4096.
Location — Click in this field and type in a location to customize your system.
3
SAVE and CANCEL buttons — Click SAVE to take Device Details changes or
4
CANCEL to abandon them. Clicking either button closes the editable pane.
and buttons or type a number into the field to overwrite
NAV E 511 Encoder • HTML Operation 50
