Typical Input Display
Typical Custom Display

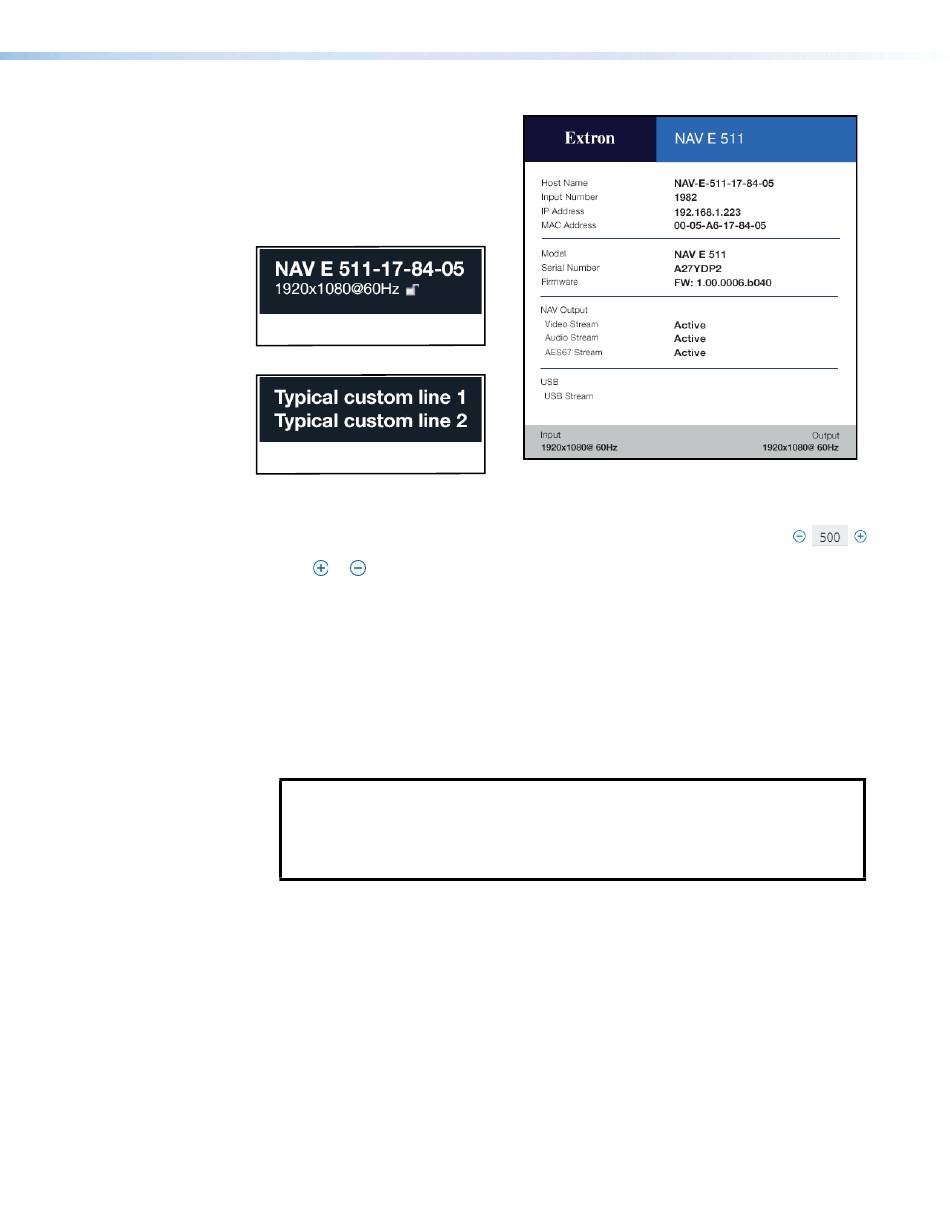

Figure 25. Typical On-Screen Displays
OSD duration (available only when OSD Type is NOT Disabled
3
[see on page 32]) — Click in the Duration field and edit it as desired or
1
click or to increment or decrement the delay (in seconds) the screen
saver stays active and streaming, before muting sync to a display. The valid
range is from 1 to 500 (seconds) or 501 Always on.
When Screen Saver Mute is unchecked (
Always on.
After the duration expires, the encoder drops the active sync, allowing the monitor to
turn off or enter low power mode.
Custom Line 1 and 2 (available only when OSD Type Custom is selected [
4
in the either Custom Line field and type in the custom information of your choice.
Delete all text to clear a custom line.
NOTE: A valid custom line entry meets the following requirements:
• The length is up to 64 characters.
• All alphanumeric characters and ASCII symbols are permitted except | (pipe).
• The custom line cannot start with a space.
Typical Status Display
), the duration automatically becomes 501
2
