NAV E 121 • Setup Guide
IMPORTANT NOTE:
Go to
www.extron.com
before connecting the product to the power source.
This guide provides instructions for an experienced installer to install the Extron NAV E 121 streaming encoder and to make all
connections. The Extron NAV encoder and one or more compatible decoders form an AV distribution and switching matrix on a
managed 1G (1 Gbps) IP network.
NOTE:
For more information on any subject in this guide, see the NAV E 121 User Guide, available at www.extron.com.
Installation
Step 1 — Mounting
Turn off or disconnect all equipment power sources and rack or furniture mount the encoder as required.

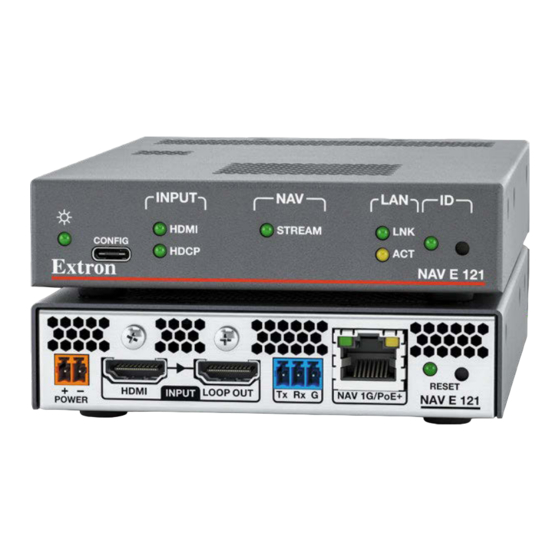

Step 2 — Rear Panel Connections
HDMI input port — Connect an HDMI cable between
A
this port and the HDMI output port (or DVI port, with an
appropriate adapter) of the digital video source.
HDMI LOOP OUT port — Connect a display to this port
B
for local loop-through monitoring of the source signal.
NOTE:
LockIt
See
to securely fasten the HDMI connectors to the
encoder for
Control RS-232 port — Connect a serial RS-232 signal
C
to this 3.5 mm, 3-pole captive screw connector for
bidirectional RS-232 and unidirectional IR communication
with connected remote controlled devices using an Extron control system (see
connector).
NAV 1G/PoE+ port — Connect to an Ethernet LAN on which one or more decoders also reside for streaming and control (see
D
NAV 1G/PoE+ connector
Reset button and LED — This button initiates three modes of reset (see the NAV E 121 User Guide, available at
E
www.extron.com, for details).
Power connector — If desired, plug the optional external 12 VDC power supply into this 2-pole connector (see
F
connector
on page 5 to wire the connector and
for the complete user guide, installation instructions, and specifications
Lacing Brackets
®
on page 6
A
B
and
.
on page 5 to wire the connector).
POWER
POWER
12V
1.2A MAX
HDMI
Top
F
F F
A
A A
Rear
HDMI
POWER

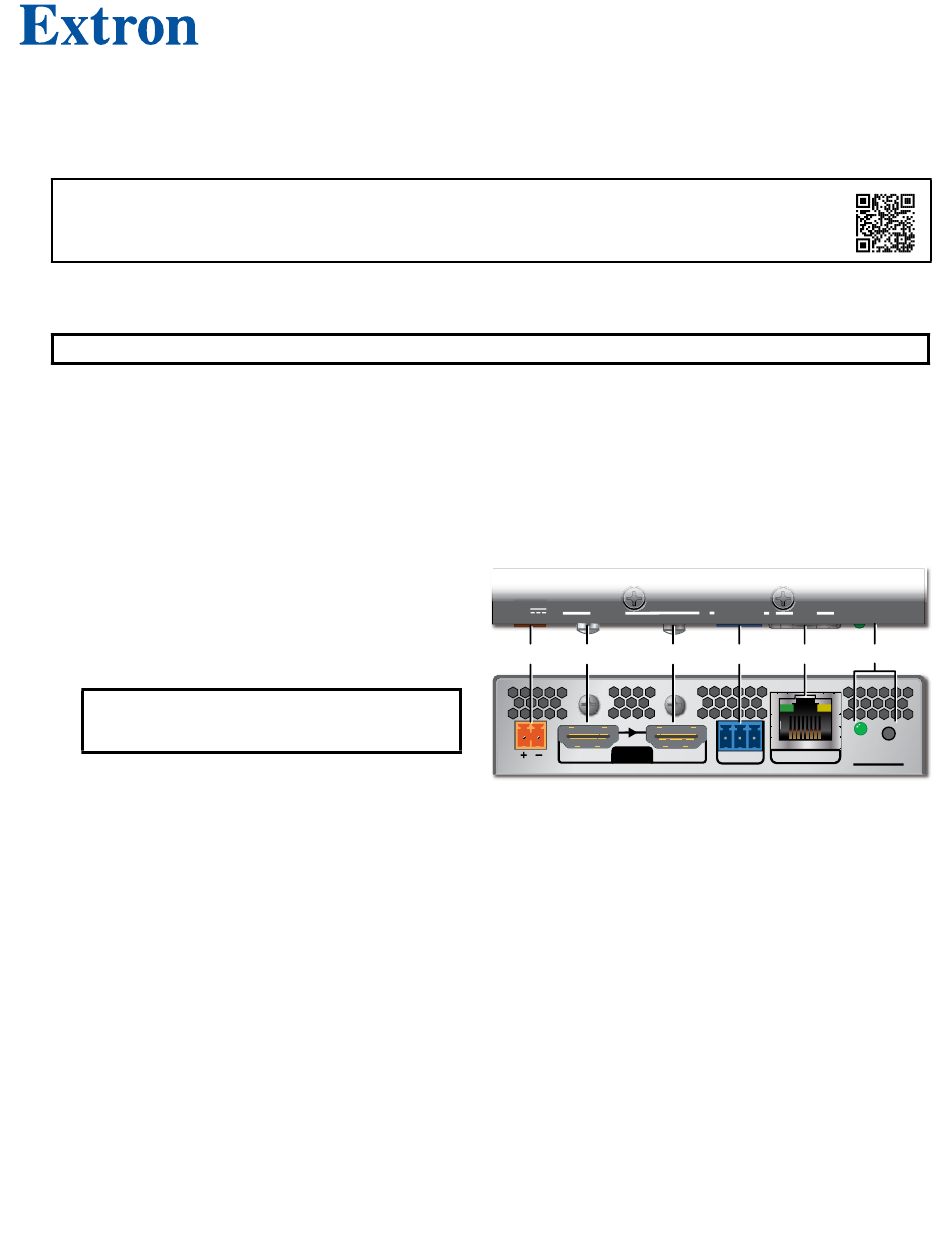

Figure 1.
for power options).
Power
CONTROL
INPUT
LOOP OUT
RS-232
B
B B
C
C C
INPUT
LOOP OUT
G
Tx
Rx
NAV E 121 Rear Panel Features
Control connector
on page 5 to wire the
LAN
NAV 1G/PoE+
RESET
D
D D
E
E E
RESET
NAV E 121
NAV 1G/PoE+
Power
1
Advertisement
Related Manuals for Extron electronics NAV E 121
Summary of Contents for Extron electronics NAV E 121
- Page 1 This guide provides instructions for an experienced installer to install the Extron NAV E 121 streaming encoder and to make all connections. The Extron NAV encoder and one or more compatible decoders form an AV distribution and switching matrix on a managed 1G (1 Gbps) IP network.
-
Page 2: System Operation
The encoder is NOT operational until the boot process is complete (the Power LED is lit steadily). System Operation The encoder can be configured and controlled using embedded web pages or Extron Toolbelt (see the NAV E 121 User Guide www.extron.com available at and the Toolbelt Help file). - Page 3 Connection via web pages Connection to the encoder and its embedded web pages can be made via either the front panel Configuration (USB) port (using IP over USB technology) (see figure 2, on page 2) or the rear panel NAV 1G/PoE+ port (see figure 1, on page 1).
-
Page 4: Connection Settings
1 1 1 1 Figure 5. HTML Page NOTE Detailed descriptions of communication, configuration, and monitoring are provided in the NAV E 121 User Guide, available at www.extron.com. Connection settings View and change connection settings as follows: On the home page, click Settings (see figure 5, ) >... -
Page 5: Connection Details
NAV E 121 • Setup Guide (Continued) Pairing devices via front panel Use a small screwdriver to press and hold the encoder front panel ID button for approximately 3 seconds, until the ID LED blinks. The encoder enters pairing mode, which allows decoders to receive the AV stream from encoders. - Page 6 For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the Extron Safety and Regulatory Compliance Guide on the Extron website. www.extron.com © 2023 Extron — All rights reserved. 68-3771-50 Rev. A All trademarks mentioned are the property of their respective owners. 09 23 Worldwide Headquarters: Extron USA West, 1025 E.
