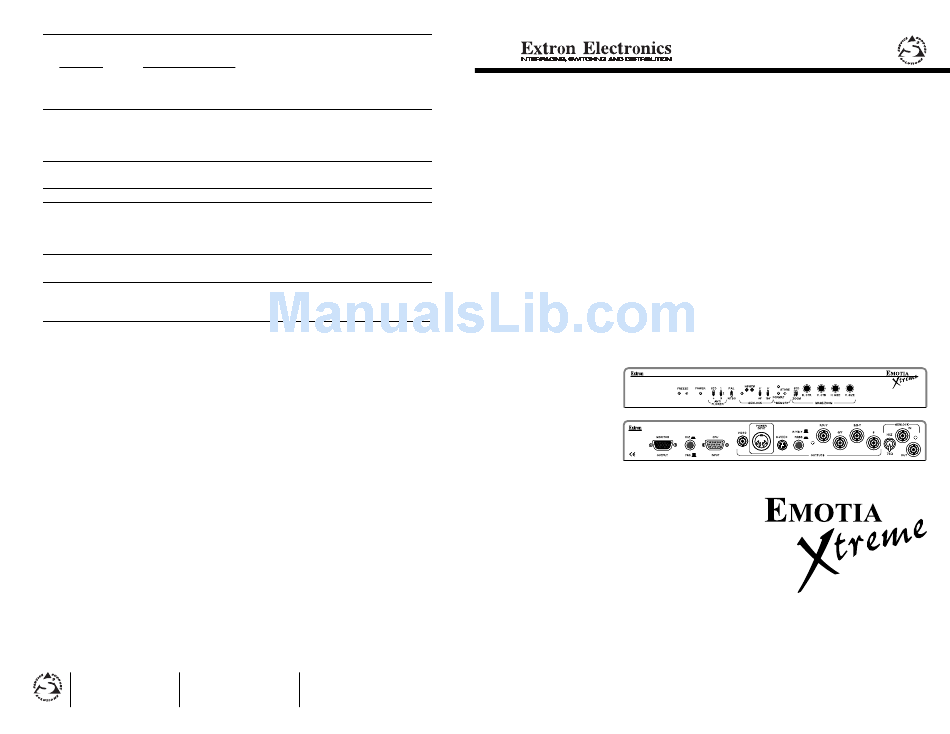

Troubleshooting
Problem Probable Solution
No image 1) Make sure all cable connections are tight.
or picture 2) Confirm that only compatible scan rates are coming into
the E
X
MOTIA TREME
Garbage on 1) Disconnect and reconnect the input cable.
the Screen 2) Disconnect and reconnect the Power connector on the
E X
MOTIA TREME
3) Press Freeze button On and then Off.
Picture 1) Put termination switch (rear) to the Out (75Ω)
too bright position.
Picture too dark 1) Put termination switch (rear) to the In (Hi Z) position.
No Color 1) Adjust the Hue/Tint and Color controls on the projector/
on screen monitor.
2) Make sure the video equipment in use matches the
format (NTSC, PAL etc.).
Poor recording 1) Adjust sharpness control on the VCR.
quality 2) Record using the S-VHS output of E
Picture too big 1) Try the Zoom switch.
for screen 2) Adjust the Horizontal sizing control (width).
3) Adjust the Vertical sizing control.
Specifications
Input Signals
Computer Compatibility: VGA, XGA, SUN, Silicon Graphics, PowerPC,
VESA, NeXT, PowerMAC, Quadra, PowerBook, Radius and more.
Resolutions .... 320 x 200 up to 1600 x 1280, non-interlacing
Frequencies ... 29 to 92 kHz
Format ............ RGsB, RGBS, RGBHV
Output Signals
Type ................ Composite Video, S-Video, RGBS, Component Video
NTSC .............. 15.75 kHz/60 Hz, 525 lines
PAL ................. 15.63 kHz/50 Hz, 625 lines
Power Supply ........ 100/240 VAC 50/60 Hz (auto-switchable)
Dimensions ............ 10" W x 11.5" D x 1.5" H (25 W x 29 D x 3.8 H cm)
Warranty ................ Two years parts/labor
Shipping Weight .... 9 lbs. (4 kg)
The following cables/adapters ship with the Emotia Xtreme:
13W3/VGA adapter
13W3/VGA monitor cable
Mac HV/VGA Adapter
VGA/Mac Adapter Cable
VGA/Mac Adapter Cable
S-VHS Cable
RCA Cable
BNC/M-RCA/F Adapter
The RGBS cables are provided by the user.
