Vsx 5000 Back Panel - Polycom VSX Series Administrator's Manual

Administrator's Guide for the VSX Series

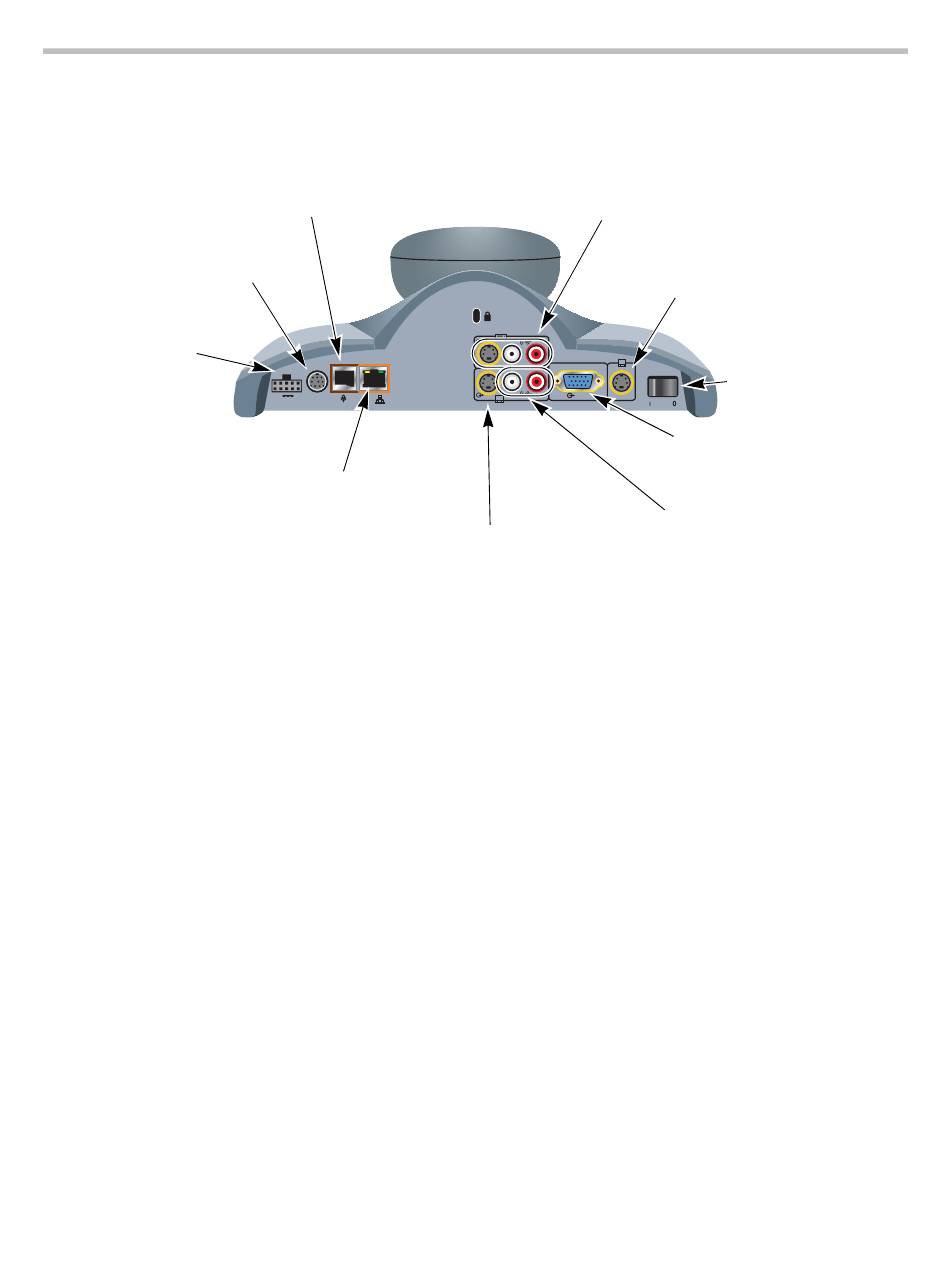

VSX 5000 Back Panel

RS-232 serial port
For RS-232 device
Power connector
For power supply
A - 2
Conference link
For Polycom microphone,
SoundStation VTX 1000, or
Visual Concert VSX
101010
24V 3A
LAN
LAN port
For IP,
People+Content IP,
and VSX Web
VGA
1
S-Video output
from system
For main monitor
VCR/DVD input to system
For VCR/DVD to play
content into calls
S-Video output from system
For second S-Video monitor
2
Power switch
VGA output from system
For VGA monitor or projector
Audio output from system
For main monitor audio, or
for external speaker system
