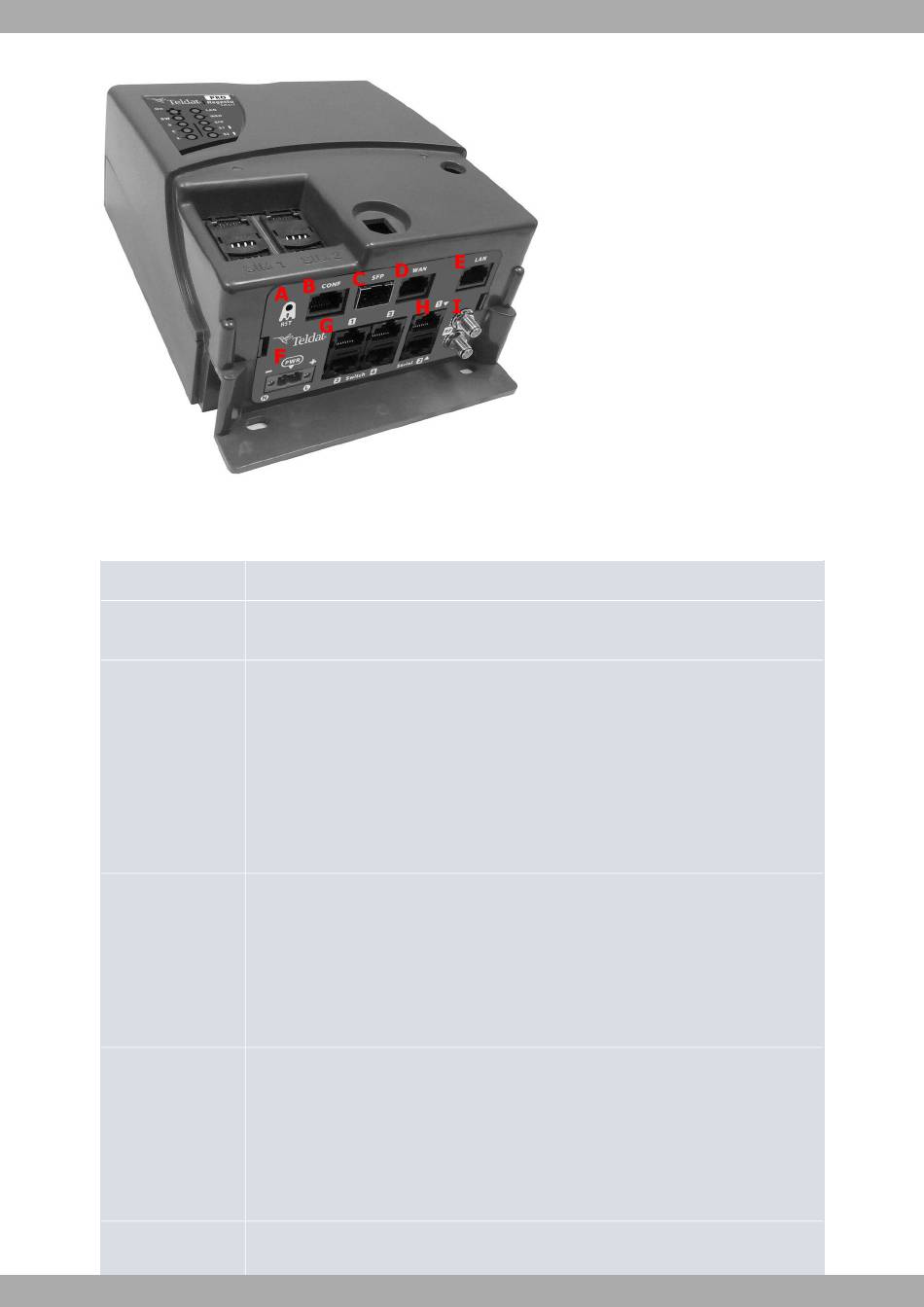

The connector panel includes the following elements:
Front Panel Elements
Item
A
B
C
D
E
Regesta Smart PRO
Description
RST. Reset button. For further details on the functionality of the reset button, see
ton
on page 29.
CONF. RJ-45 connector providing access to the device's local console for configuration and
monitoring purposes. (This connector can also be used as an RS-232 asynchronous DCE
serial port)
For more information about the CONF connector, please refer to:
-
Console connector as serial port (CONF connector)
-
Configuration connector
on page 37
-
Configuration interface
on page 40
WAN Gigabit Ethernet. SFP connector.
For more information about the WAN interface with SFP connector, refer to:
-
WAN connections
on page 23
-
WAN SFP connector
on page 36
-
WAN SFP interface
on page 39
WAN Gigabit Ethernet. RJ-45 connector.
For more information about the WAN interface with Base-T connector, please refer to:
-
WAN connections
on page 23
-
WAN Base-T connector
on page 36
-
WAN Base-T interface
on page 39
LAN Gigabit Ethernet Port.
RST but-
on page 26
