Front Panel

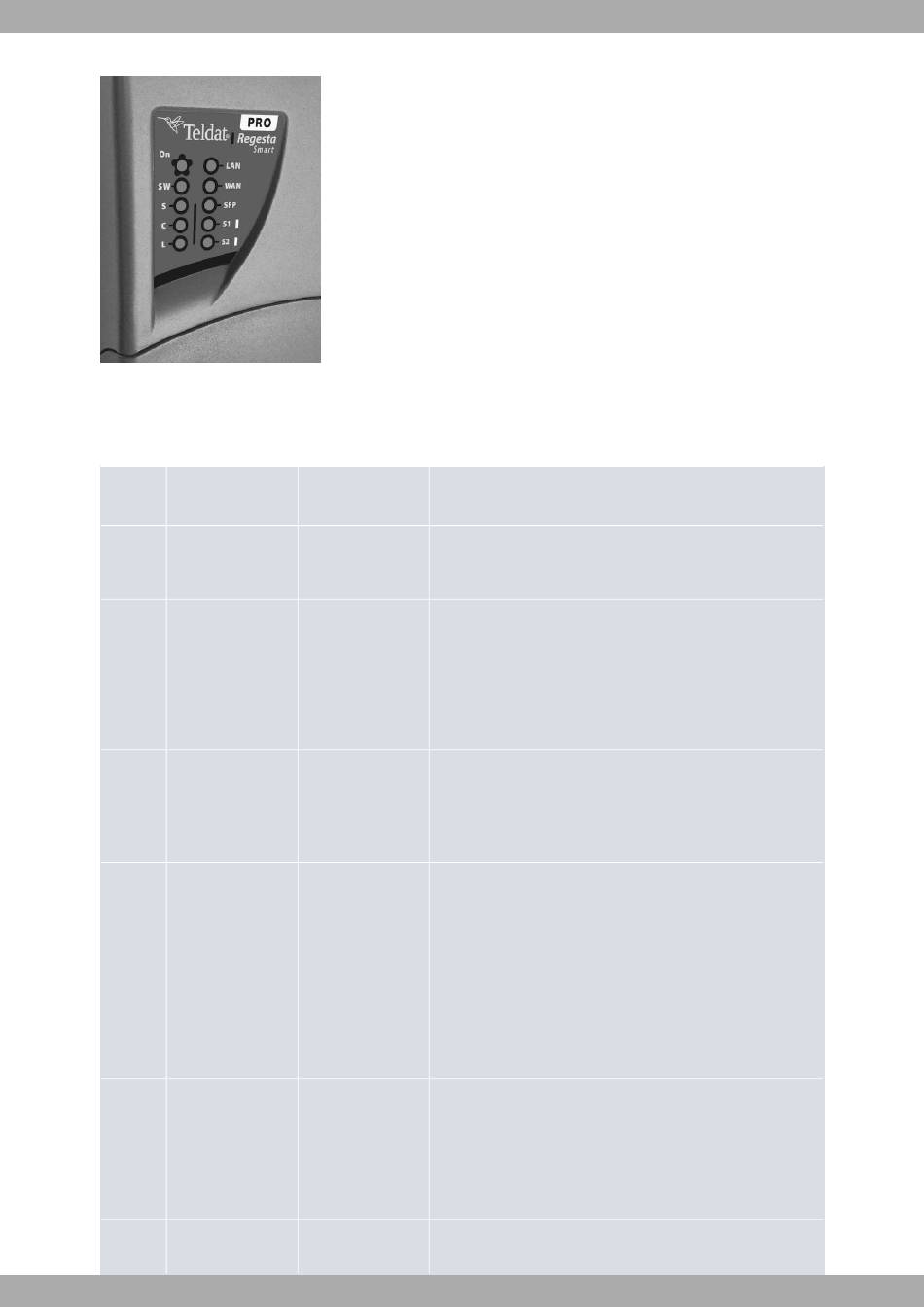

Fig. 2:
While the device is in startup mode, LED L lights up in green. Once the device has started up, the LEDs indicate the
following:
LEDs
LED Associated Inter-
face
Power
ON
Ethernet Switch in-
SW
terface
Cellular interface
S
Cellular interface
C
Cellular interface
L
corresponding to
the active SIM.
Ethernet LAN inter-
LAN
face
Regesta Smart PRO
Status Description
Off Device is not powered.
Green Device is powered.
Off The Ethernet Switch is currently disabled or there is no estab-
lished connection.
Green
Ethernet connection (link) established in at least one port:
• Steady: Data is not being transferred.
• Flashing: Data is being transferred.
Green SIM1 operating SIM. This is processing traffic through the car-
rier for the SIM installed in this tray.
Amber
SIM2 operating SIM. This is processing traffic through the car-
rier for the SIM installed in this tray.
Red Cellular interface is unavailable, not installed or not registered.
The device has registered in the network and is establishing
Amber
the PDP connection.
The device is registered, PDP connection is established and
Green
IP traffic can be sent through the CELLULAR interface.
• Steady: Data is not being transferred.
• Flashing: Data is being transferred.
Off Cellular interface is not active.
Red Coverage level below -100dBm.
Amber Coverage level between -90dBm and -100dBm.
Green Coverage level above -90dBm.
Off The Ethernet LAN is currently disabled or there is no estab-
