Chapter 3: System Setup

Installing DIMM Memory Modules

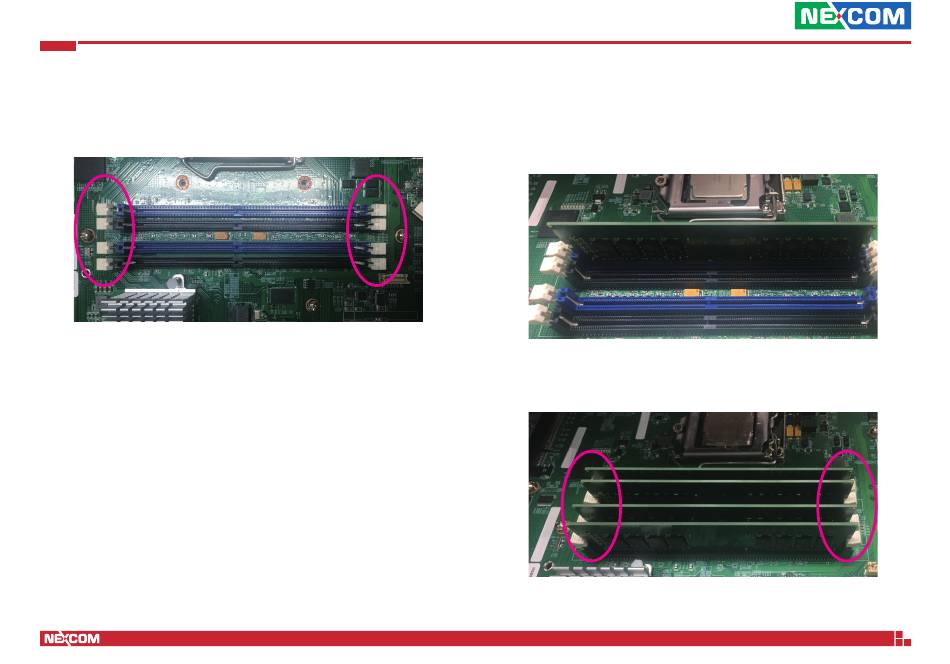

1. Locate the DIMM sockets on the board and release the locks.
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
2. Insert the module into the socket at an 90 degree angle. Apply firm even
pressure to each end of the module until it slips into the socket.
3. While pushing the modules into position, the lock will close automatically.
