Rear Panel Overview

2
1
1. AUX OUT
- Trigger output:
After the AUX output is set to "TrigOut", the oscilloscope generates a trigger
and outputs a signal that can reflect the current capture rate of the oscilloscope
via this interface. Connect the signal to a waveform display device and measure
the frequency of the signal. The measurement result is the same as the current
capture rate.
- Pass/Fail:
After the AUX output is set to "PassFail", in the pass/fail test, the instrument will
output a pulse via the [AUX OUT] connector when a passed or failed waveform
is detected during the pass/fail test.
2. AFG OUT (for DHO914S and DHO924S only)
DHO914S and DHO924S have a built-in AFG. When the AFG output is enabled, the
rear-panel [AFG OUT] connector will output signals according to current settings.
3. LAN
Connect the instrument to network via this interface. The instrument conforms to
the standards specified in LXI Device Specification 2011. Its test system can be
built quickly. Then you can control the instrument through using Web Control to
send the SCPI commands. When update is available, you can perform online
upgrading for the system software of the instrument via the LAN interface.
www.calcert.com
15
10 20
5 25
0 30
9

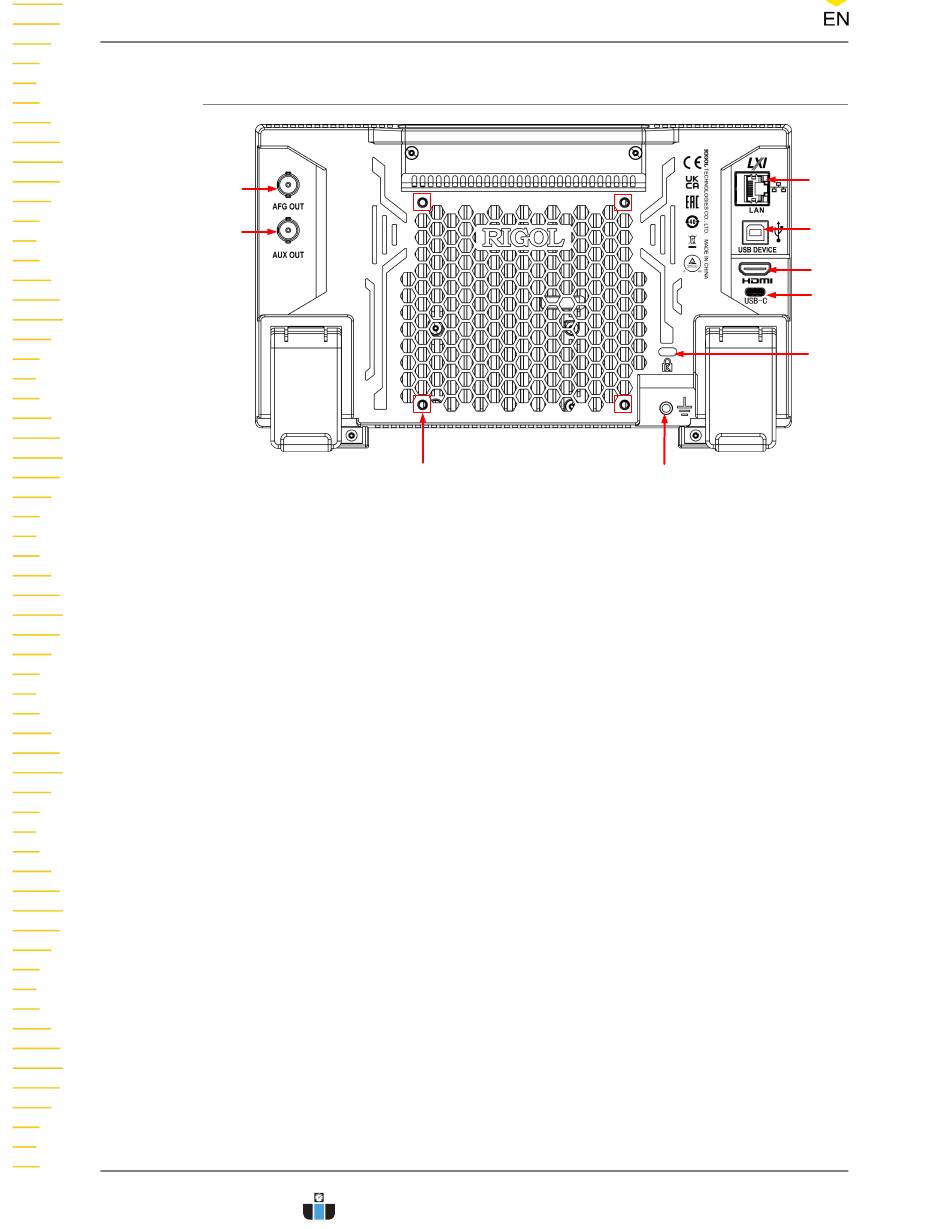

Figure 4.11 Rear Panel

Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
3
4
5
6
7
8
