Rigol DS1102E Datasheet

RIGOL
Data Sheet

Product Overview

DS1000E, DS1000D series are kinds of economical
digital oscilloscope with high-performance.
DS1000E series are designed with dual channels
and 1 external trigger channel.
DS1000D series are designed with dual channels
and 1 external trigger channel as well as 16
channels logic analyzer.
Applications
Electronic Circuit Test

Circuit Functional Test

Logical Relation Between Singals

Verification
Circuit of Mixed Signal Test

Education & Training


Main Features

Dual analog channels and 16 channels logic

analyzer, 100MHz maximum bandwidth,
1GSa/s maximum real-time Sample rate and
25GSa/s maximum equivalent Sample rate
5.6 inch and 64 k TFT LCD make the

waveform displays more clear and vivid
Abundant trigger types: Edge, Pulse Width,

Video, Slope, Alternate, Pattern and
Duration
Unique adjustable trigger sensitivity enables

to meet different demands
Enable to measure 20 types of wave

parameters and track measurements via
cursor automatically
Unique waveform record and replay

DS1000E, DS1000D Series

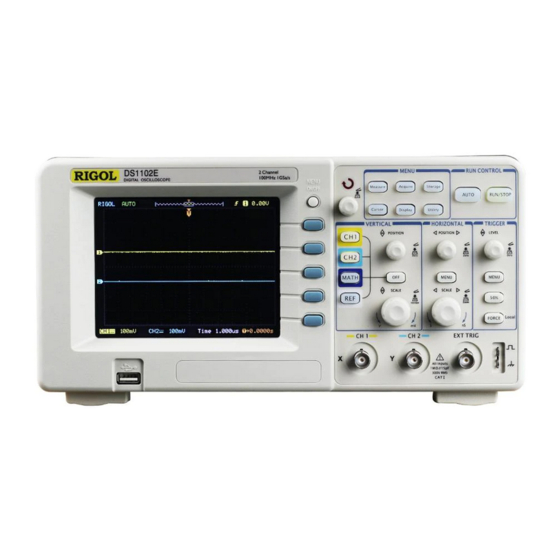

DS1102E, DS1052E, DS1102D, DS1052D
Easy to Use Design














May. 2013
RIGOL Technologies, Inc.
Digital Oscilloscopes
Built-in help menu enables information
getting more convenient
Multiple Language User Interface, support
Chinese & English input
Support U disk and local files storage
Waveform intensity can be adjusted
To display a signal automatically by AUTO
Pop-up menu makes it easy to read and use
function
Fine delayed scan function
Built-in FFT function, hold practical digital
filters
Pass/Fail detection function enables to
output testing results
Math operations available to multiple waves
Powerful PC application software UltraScope
Standard configuration interface: USB
Device, USB Host , RS-232 and support U
disk storage and PictBridge print standards
The new function "Key Lock" can meet the
needs of industrial production
Support for remote command control
