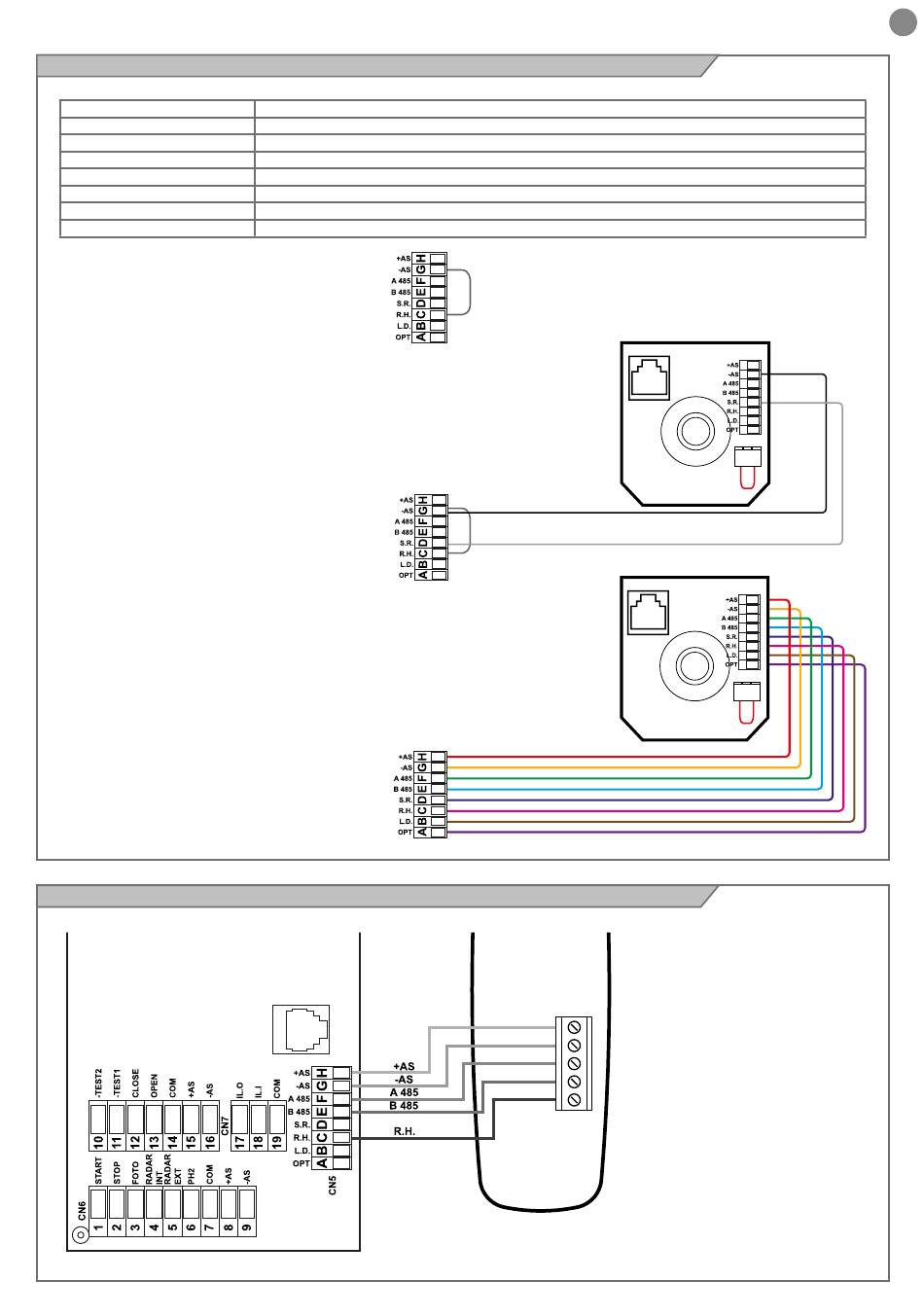

9.7 - Example of connection for SMNPAE manual selector
+AS
-AS
A 485
B 485
S.R.
R.H.
L.D.
OPT
1) - Without manual selector or with
radio selector SEL3
In order not to use the manual selector, it is necessary to bridge the
cn5 connector between the -AS and R.H. connection.
2) - With 2-wire manual selector
With the connection with just 2 wires, the following are lost: LED
error indication, hardware reset, connection of the EASY2terminal.
3) - With complete selector
Recommended installation.
9.8 - Example of SEL1 and SEL2 selector connection
Positive selector power supply
Negative selector power supply
EASY programmer connection
EASY programmer connection
Rotary selector
Reset
Error signalling LED
Optional (not used)
