Locking The Cover Panel - Key Automation LEV3301L Instructions And Warnings For Installation And Use

To prepare the cover, proceed as follows:

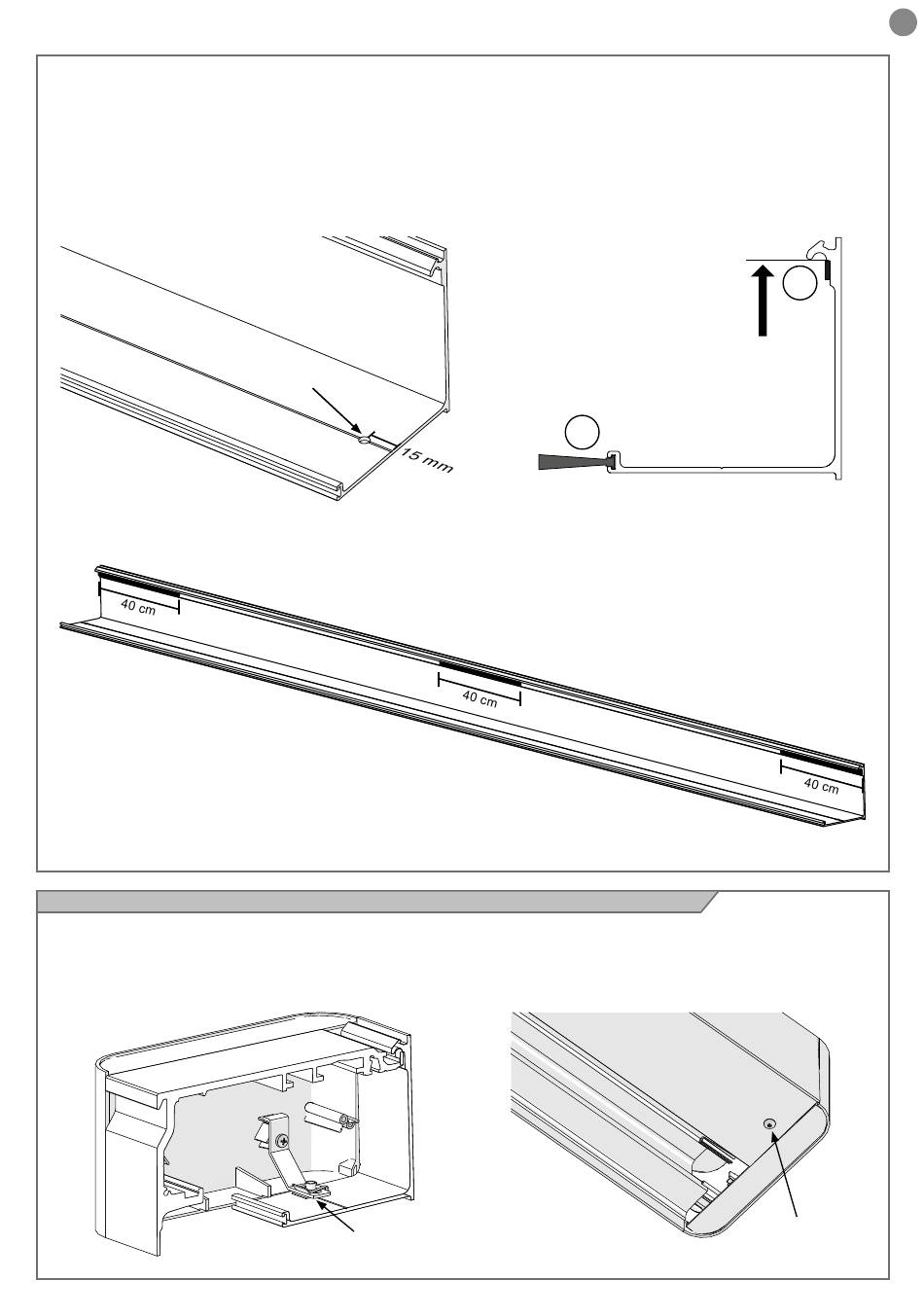

Holes for screws for fixing to the covers FIG. 1:
Drill two Ø5.5 holes on both ends of the panel 15 mm away from
the edge.
Application of an anti-vibration seal (A) and of the brush (B)
FIG. 2:

8.4 - Locking the cover panel

The panel is locked at the ends of the beam. The metal clip
anchored to the side cover should be located at the hole in the
panel; if the clip is not aligned with the hole in the beam, move it
FIG. 1
Ø 5,5
M5 fixing
clip
Insert the brush "B" in the dedicated seat, sliding it to the end of
the cover.
The anti-vibration seal (A) must be positioned at the ends and in
the centre of the cover, in pieces of approximately 40cm in length
(Fig.3). Align the seal to the profile as in Fig.2.
B
FIG. 3
until the correct alignment is found. Insert the M5x10 TB screw and
tighten until it locks completely.
FIG. 2
A
Fixing
screws
