6 - PANEL PREPARATION

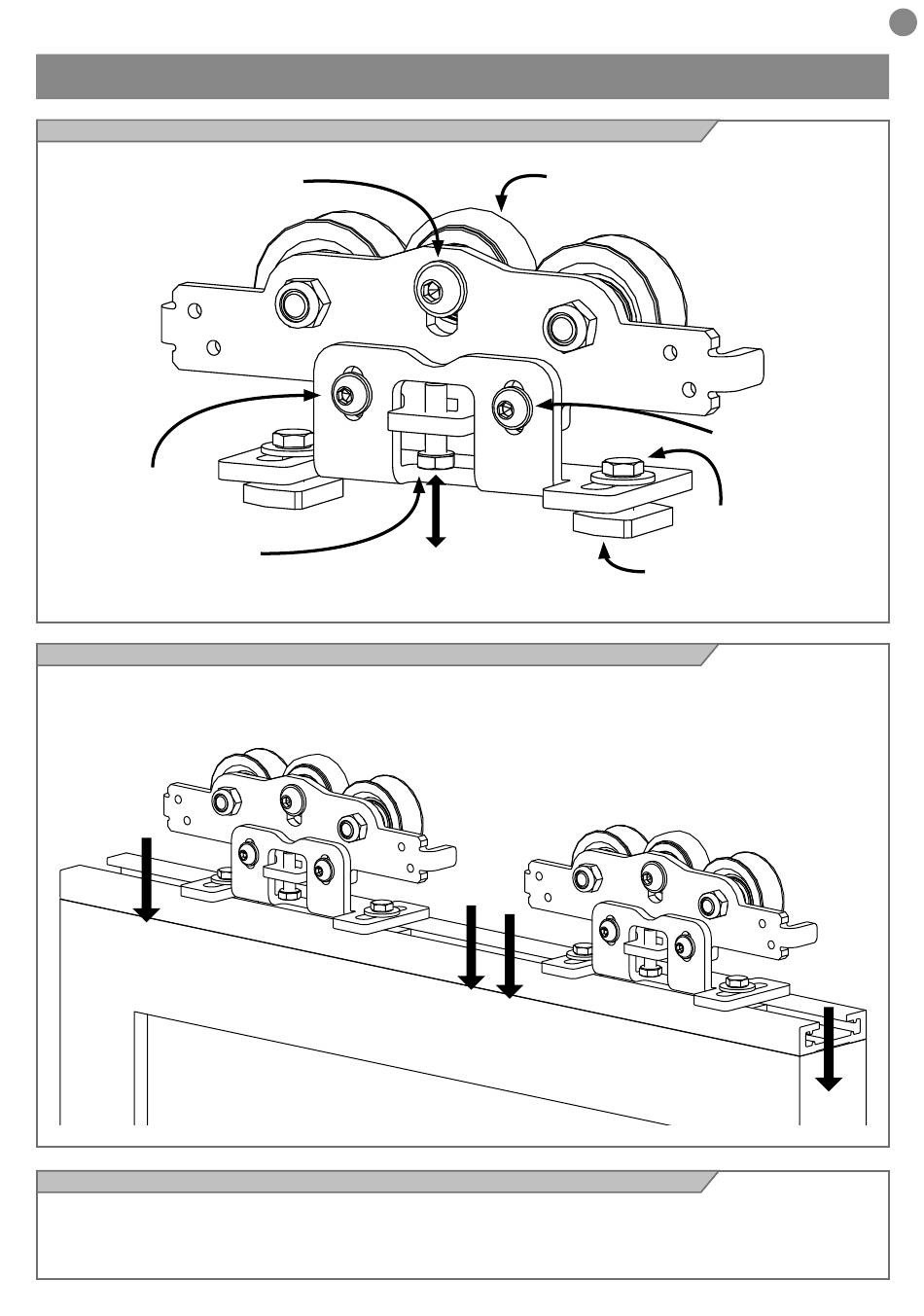

6.1 - Detail of the runner

Anti-derailment wheel
adjustment screw
Panel support bracket
locking screws
Panel height adjustment
screw
6.2 - Assembly of the runners on the panel with lowered adapter profile
Cut the adapter profile to size, make the holes for the fixing screws
of the panel at the appropriate notch on the adapter profile and fix
the profile on the panel with the screws.
6.3 - Fixing the runner on the adapter profile
The runner is secured to the adapter profile by means of two fixing
plates. The following figure shows the mechanism for inserting the
fixing plates onto the adapter profile.
Permitted panel height
adjustment ± 4.5 mm
N.B. Be careful not to insert the screws at the runner fixings.
N.B. Pay attention to the direction of the plate which must be
as shown in the figure. Otherwise, the plate may release when
the screw is tightened.
Anti derailment wheel
Panel fixing
screw
Panel fixing
plate
EN
Panel support bracket
locking screws
