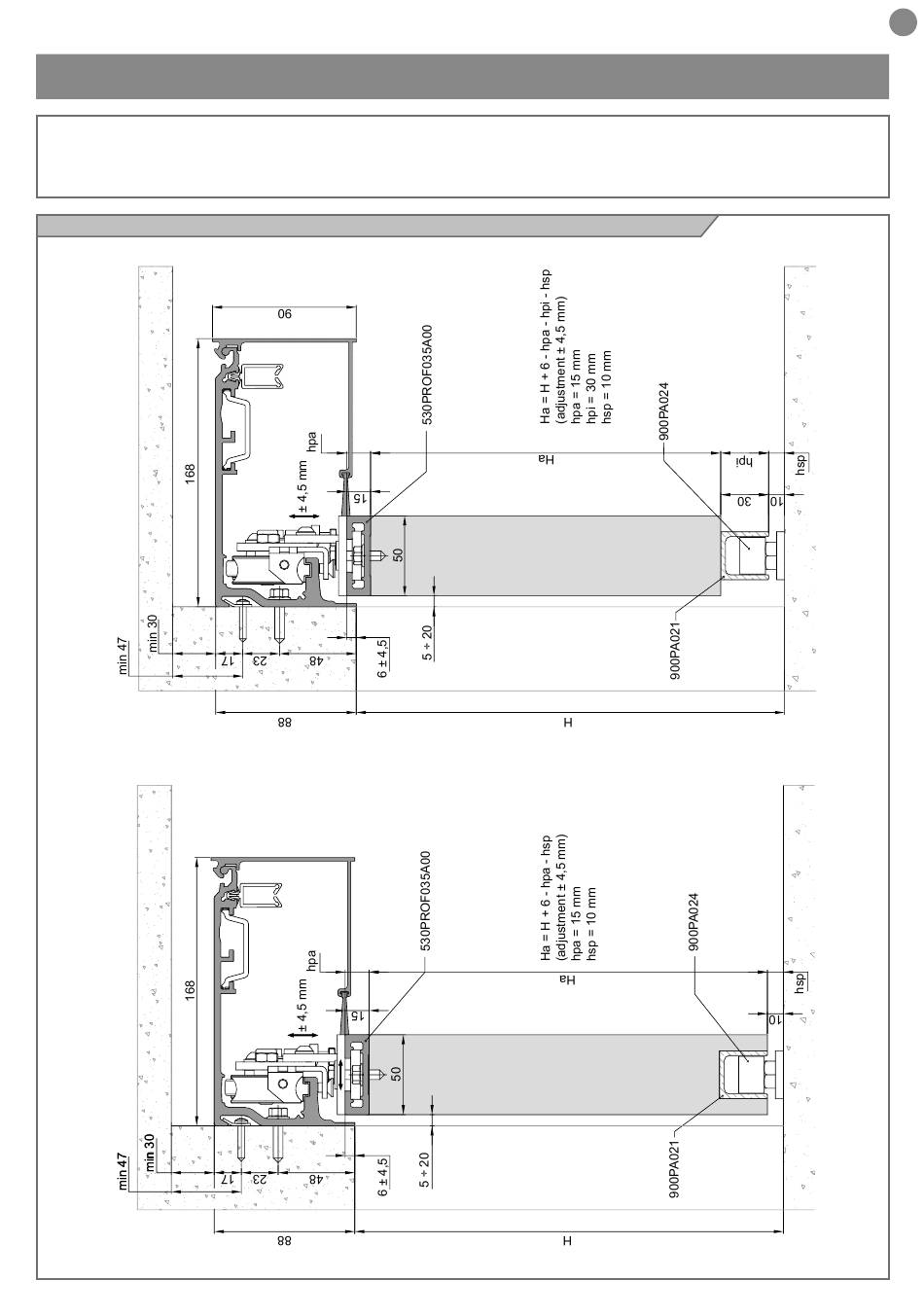

4 - INSTALLATION DIMENSIONS
The following diagrams are used to obtain the installation
dimensions of the automation according to the height of the
passageway and to obtain the height dimensions of the panels
4.1 - Dimensions installation with commercial profile - Side View
according to the type of panel to be installed (traditional or all
glass). All the dimensions of the following layouts are expressed
in millimetres (mm).
