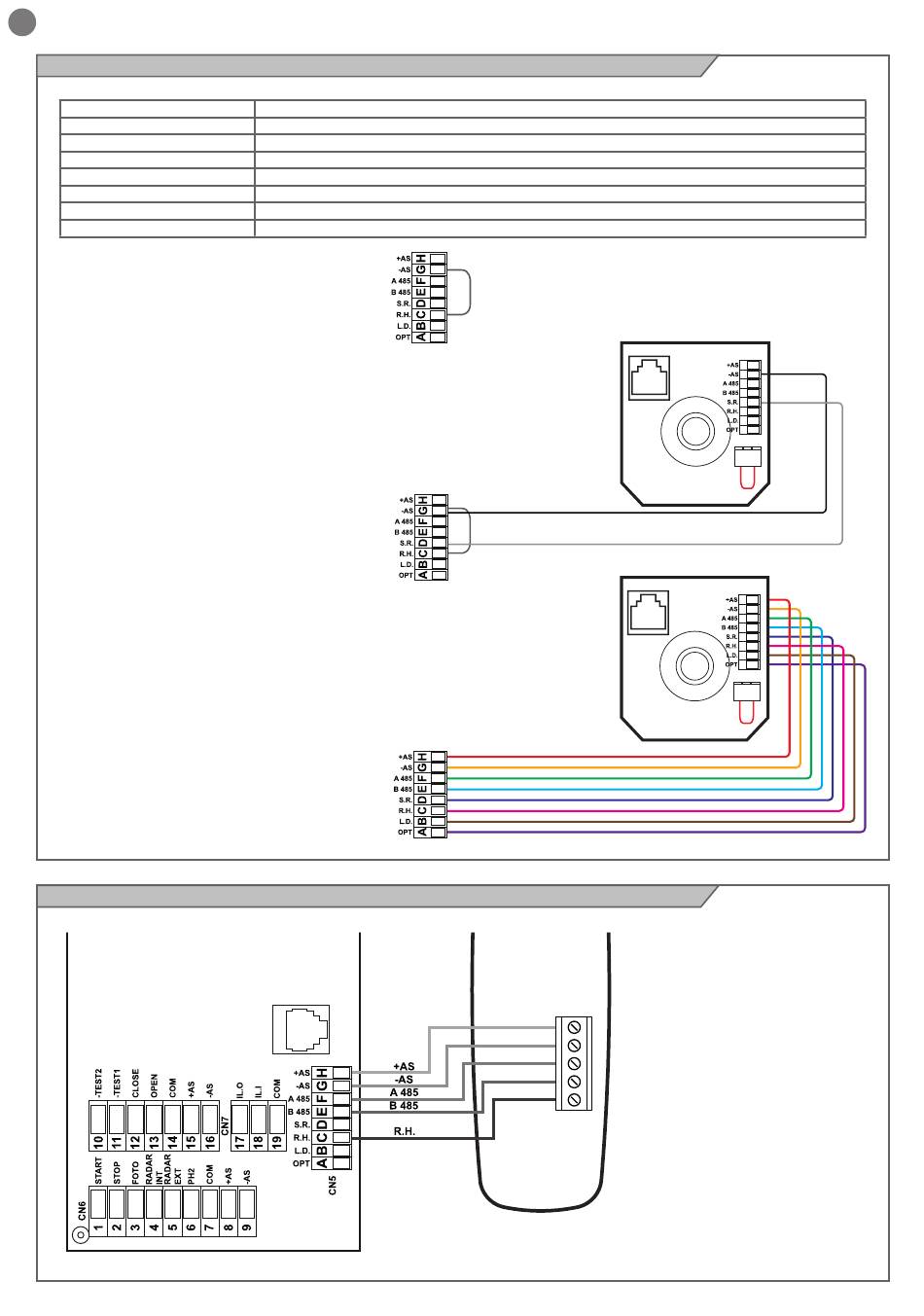

9.7 - Example of connection for SMNPAE manual selector

+AS

-AS

A 485

B 485

S.R.

R.H.

L.D.

OPT

1) - Without manual selector

In order not to use the manual selector, it is necessary to bridge the

cn5 connector between the -AS and R.H. connection.

2) - With 2-wire manual selector

With the connection with just 2 wires, the following are lost: LED

error indication, hardware reset, connection of the EASY2terminal.

3) - With complete selector

Recommended installation.

9.8 - Example of SEL1 and SEL2 selector connection

Positive selector power supply

Negative selector power supply

EASY programmer connection

Rotary selector

Reset

Error signalling LED

Optional (not used)
